JDI rugged TFT display modules are built for demanding applications where ordinary commercial/consumer panels do not hold up: outdoor equipment, industrial HMIs, defense and security systems, and railway or mass-transit electronics.
As an authorized distributor, Edge Electronics brings a dedicated LCD solutions team to display programs across industrial, defense, and rail applications. We help OEMs evaluate display size, resolution, brightness, operating temperature, touch integration, protective glass, optical bonding, shock and vibration requirements, and rail compliance, then coordinate the value-add integration so the panel is right before the design gets locked in.
Request Pricing & Availability
Three Application Tracks, One Display Family
JDI groups its rugged modules into three application tracks. Many modules appear in more than one track, so start with the environment, then use the finder below to narrow by size and brightness. Edge's display team can confirm the right orderable configuration for your program.
- Best for
- Outdoor HMIs, industrial controls, kiosks, EV charging, construction, agriculture, marine, and field equipment.
- Core need
- Sunlight readability + rugged usability
- Options
- PCap touch, cover glass, IK10 impact resistance, AG/AR/AF coatings, optical bonding, and custom enclosures.
- Best for
- Rugged terminals, vehicle displays, marine and air support systems, security electronics, and harsh-environment control interfaces.
- Core need
- Optical performance + long-term durability
- Design focus
- High brightness, wide temperature, mechanical robustness, shock and vibration resistance, and EMI/EMC shielding.
- Best for

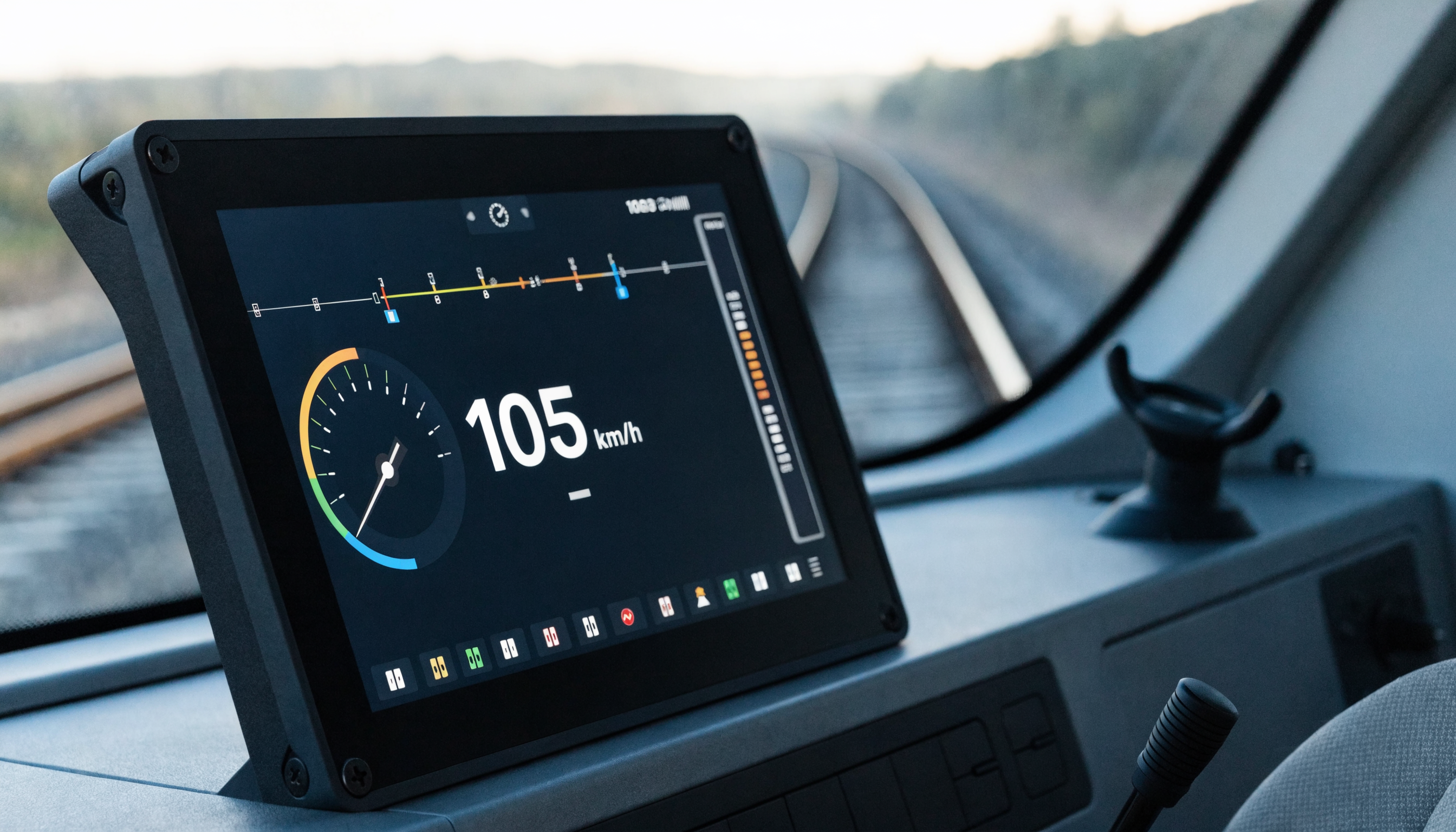

- Driver consoles, dashboards, passenger information systems, control panels, and other rail electronics.
- Core need
- EN50155 OT3 compliance
- Test focus
- EMC, vibration, shock, ESD, and temperature variation.
Find Your JDI Display Module
Filter the full JDI/JDIT-K lineup by application, size, and brightness, or search a part number. Send your shortlist to Edge's display specialists for pricing, availability, and samples.
| Size | Part Number | Resolution | Temp | Brightness | LED Driver | Applications |
|---|---|---|---|---|---|---|
| 4.3" | LAM043N145A | 480 x 272 | -40 to +85°C | 1200 nits | Yes | OM |
| 6.4" | TX16D209 series | 1024 x 768 | -30 to +80°C | 1400 nits | Yes | OM |
| 7.0" FHD | TX18D200 series | 1920 x 1080 | -40 to +85°C | 1200 nits | Yes | OM |
| 7.0" | TX18D211 series | 800 x 480 | -40 to +85°C | 1200 nits | Yes | OM |
| 7.0" | TX18D212 series | 1280 x 768 | -40 to +85°C | 1500 nits | Yes | OM |
| 7.0" | TX18D216 series | 800 x 480 | -40 to +85°C | 1200 nits | Optional | O |
| 8.0" | TX20D207 series | 1280 x 768 | -40 to +85°C | 1200 nits | Yes | OM |
| 8.0" | TX20D208 series | 800 x 480 | -40 to +85°C | 1200 nits | Optional | OM |
| 9.0" | TX23D202 series | 800 x 480 | -40 to +85°C | 1000 nits | Yes | O |
| 10.1" | TX26D207 series | 1280 x 800 | -40 to +85°C | 1000 nits | Yes | OM |
| 10.2" FHD | TX26D208 series | 1920 x 1080 | -40 to +85°C | 1300 nits | Yes | OM |
| 10.3" | TX26D206 series | 1920 x 720 | -40 to +85°C | 1200 nits | Yes | O |
| 10.4" | TX26D211 series | 1024 x 768 | -40 to +80°C | 1300 nits | Optional | MR |
| 10.6" | TX27D200 series | 1280 x 768 | -40 to +85°C | 1300 nits | Optional | O |
| 11.6" FHD | TX29D200 series | 1920 x 1080 | -40 to +85°C | 1200 nits | Yes | OMR |
| 12.1" | TX31D207 series | 1024 x 768 | -40 to +80°C | 1000 nits | Optional | MR |
| 12.1" | TX31D208 series | 1280 x 800 | -40 to +80°C | 1500 nits | Optional | MR |
| 12.8" FHD | LAM128 series | 1920 x 1080 | -30 to +85°C | 2000 nits | N/A | M |
| 13.3" | LPM133 series | 3840 x 2160 | -40 to +85°C | 1200 nits | N/A | OM |
| 15.0" | TX38D203 series | 1920 x 720 | -40 to +85°C | 1000 nits | Yes | OM |
| 15.6" FHD | TX40D202 series | 1920 x 1080 | -30 to +85°C | 1500 nits | Yes | OMR |
Values shown are for product-selection reference only. The rail (EN50155 OT3) variant of TX29D200 is rated to +90°C; rail-compliant configurations can carry extended ratings, so confirm exact orderable part numbers, interfaces, mechanical drawings, availability, and lifecycle status with Edge.
Integration and Value-Add Options
A bare TFT module is rarely the finished product. Edge helps turn the right JDI panel into a complete display assembly, coordinating the touch, optics, bonding, and mechanical options below so they are specified together rather than bolted on late.
PCap touchscreen options
Projected capacitive touchscreens can turn the TFT module into a complete user-interface assembly.
Cover glass and IK10
Protective cover glass and enhanced impact resistance options support rugged equipment designs.
AG / AR / AF coatings
Surface treatments help manage glare, reflections, fingerprints, and outdoor usability.
OCA / OCR optical bonding
Optical bonding can improve readability, durability, and perceived display quality in harsh environments.
Monitor enclosures
Custom monitor enclosures are available for specific industry requirements and custom projects.
Edge LCD solutions team
Our display specialists match the module, touch, glass, bonding, and compliance to your application, then support sampling, qualification, and supply.
JDI Promo Materials
Need the original line cards or a more technical review? Contact Edge and we will match the right JDI material to your application. You can also explore Edge's full JDI display line.
Frequently Asked Questions
What is the difference between the outdoor, military/security, and rail tracks?
What sizes are available?
Are touchscreens and cover glass available?
Are these displays sunlight-readable?
Which modules are EN50155 OT3 compliant?
Can Edge help select the right JDI display?
Request Pricing & Availability
Need pricing, availability, samples, datasheets, drawings, or help selecting the right JDI rugged display module? Send us your application requirements and an Edge display specialist will follow up.
