AAEON · GENE-ARH6 series

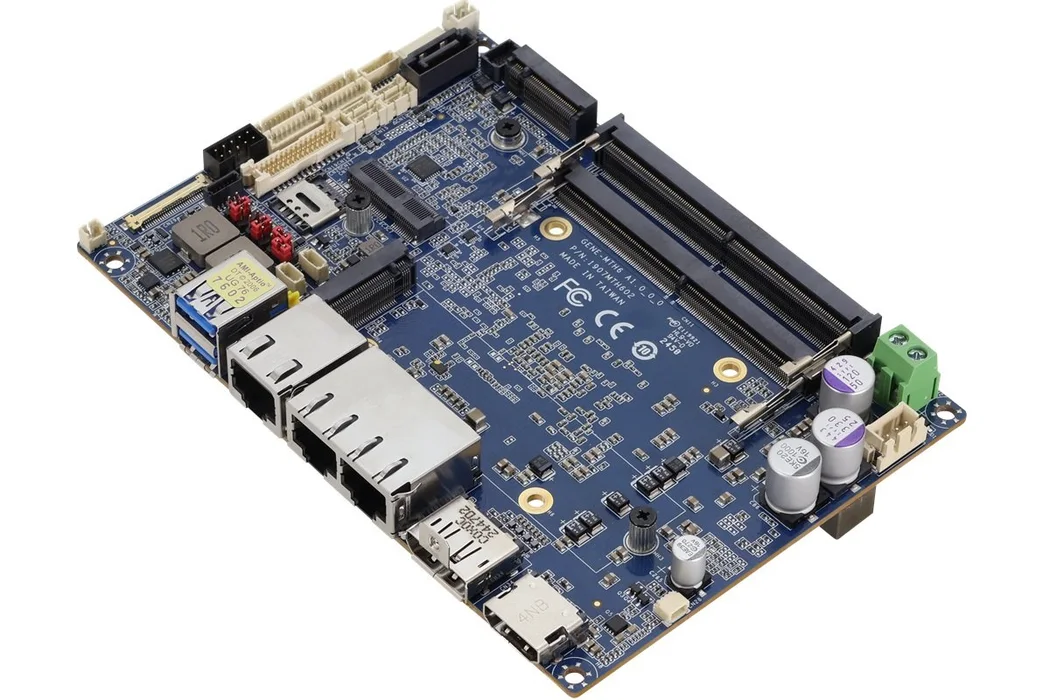

GENE-ARH6-A10-0001

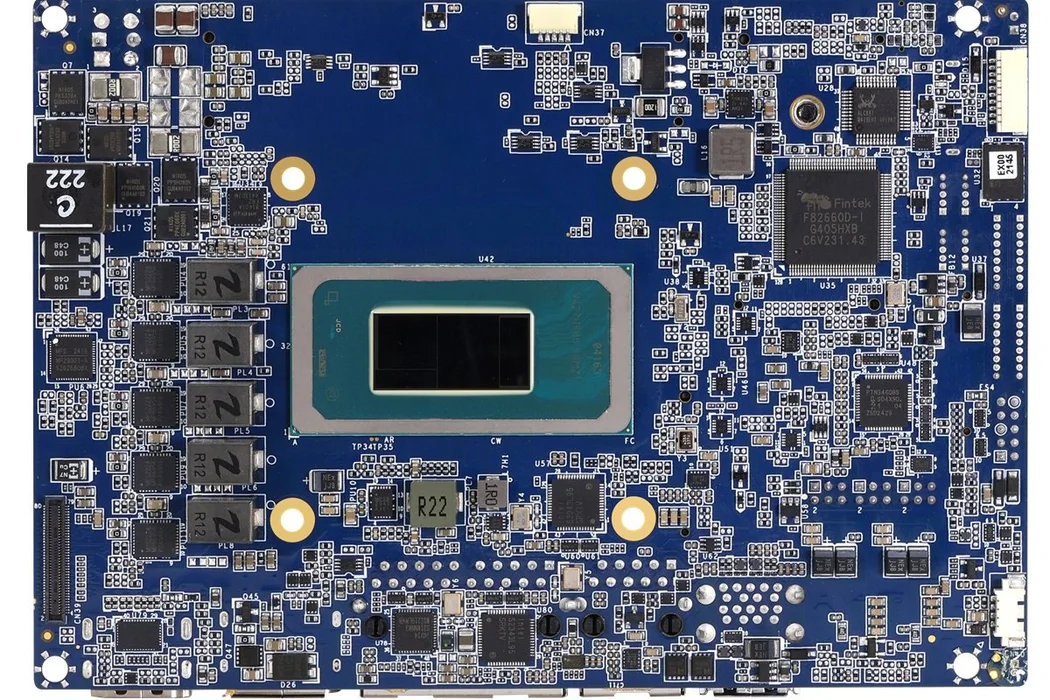

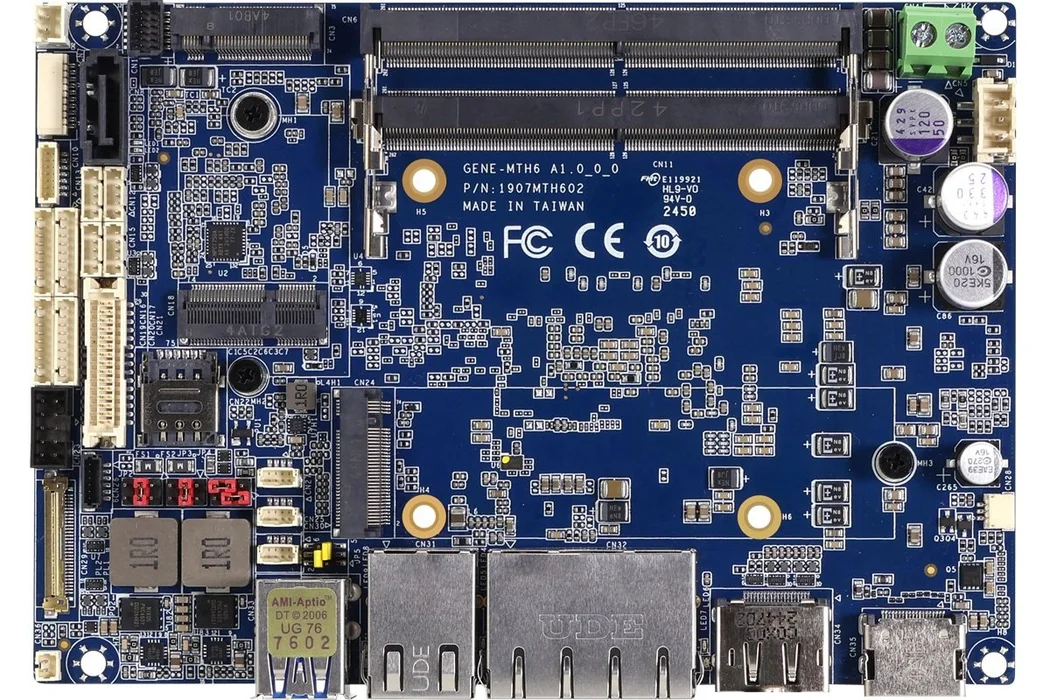

A 3.5-inch Intel Core Ultra Series 2 board with three Ethernet ports, DDR5 memory support, and expansion for storage and wireless connectivity.
- Processor
- Intel Core Ultra 7 255H
Authorized AAEON distributor
Specifications
- Processor / supported family
- Intel Core Ultra 7 255H
- Maximum memory (GB)
- 96
- Form factor / system type
- 3.5-inch SBC

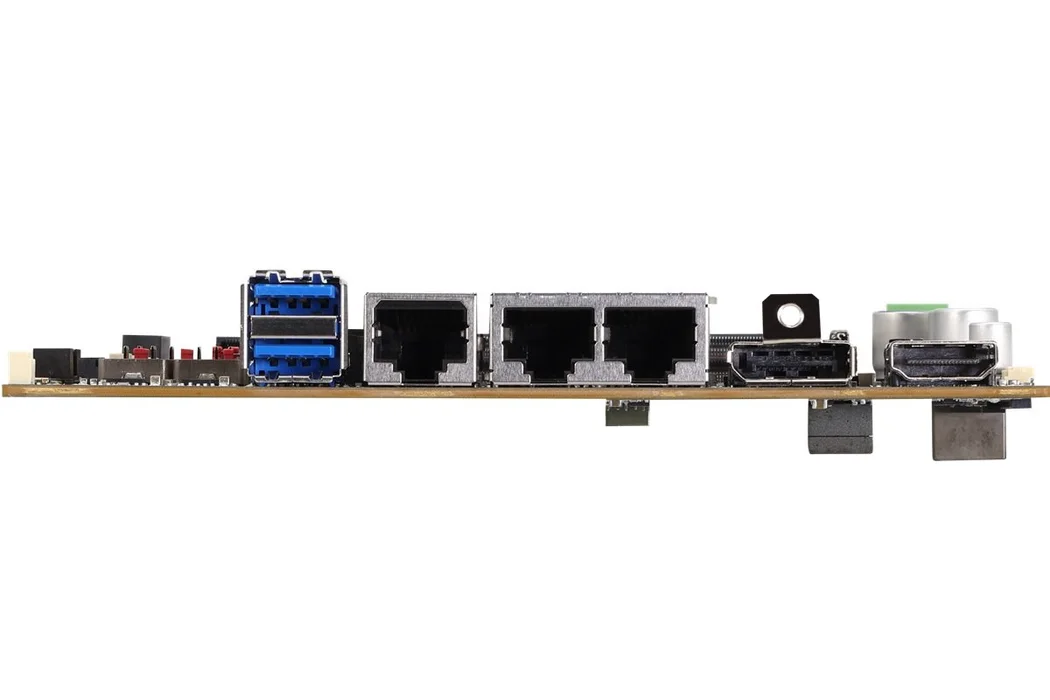

- Data LAN ports
- 3
- Memory type
- DDR5 SO-DIMM
- Memory sockets
- 2
- Memory data rate (MT/s)
- Up to 6400; 2 x 48GB configuration up to 5600
- Ethernet specification
- 1 x 1GbE + 2 x 2.5GbE
- USB 2.0 ports
- 4
- USB 3.x ports, excluding Type-C
- 2
- COM ports
- 4
- Serial interfaces
- 2 RS-232/422/485 + 2 RS-232
- GPIO bits
- 8
- M.2 Key B
- 3052, Nano SIM
- M.2 Key E
- 2230
- M.2 Key M
- 2280 PCIe Gen4 / SATA
- SATA connectors
- 1
- HDMI ports
- 1
- DisplayPort ports
- 1
- Display outputs
- HDMI; DisplayPort; LVDS; eDP
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Width (mm)
- 146
- Length (mm)
- 101.7
- OS support
- Windows 10/11 64-bit; Ubuntu 24.04.2. Windows NPU support requires Windows 11.
- TPM
- 2.0
- Processor family
- Intel Core Ultra
- Configuration notes
- Cooling must be selected for the intended ambient temperature. Confirm the rated range for the selected board and cooler.
Ask us for current product status and availability.
