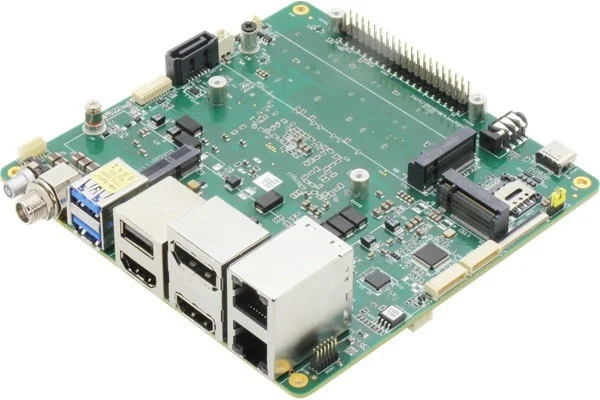

AAEON · UP Xtreme i14 series
UPX-MTL125H-A10-1600
An Intel Core Ultra developer board with onboard LPDDR5, multiple display outputs, and expansion for NVMe storage and wireless modules.
- Processor
- Intel Core Ultra 5 125H
- Onboard memory (GB)
- 16
Authorized AAEON distributor
Specifications
- Processor / supported family
- Intel Core Ultra 5 125H
- Maximum memory (GB)
- 16
- Form factor / system type
- Developer SBC
- Data LAN ports
- 2
- Memory type
- Onboard LPDDR5
- Installed memory (GB)
- 16
- Memory data rate (MT/s)
- 6400
- Ethernet specification
- 1 x 1GbE + 1 x 2.5GbE
- USB 2.0 ports
- 3
- USB 3.x ports, excluding Type-C
- 2
- USB Type-C ports
- 1
- USB configuration
- USB 2.0: one Type-A port and two interfaces on the header.
- M.2 Key B
- 3052, with Nano SIM slot
- M.2 Key E
- 2230
- M.2 Key M
- 2 x 2280 PCIe Gen4 x4
- HDMI ports
- 2
- DisplayPort ports
- 1
- Independent displays
- 4

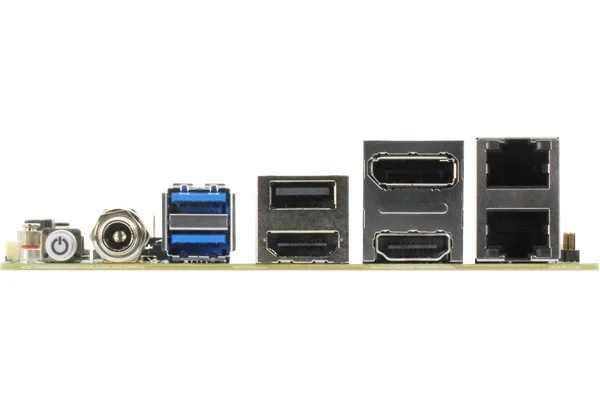

- Display outputs
- 2 x HDMI 2.1; DisplayPort 2.1; DisplayPort 1.4 over USB-C
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Operating temperature conditions

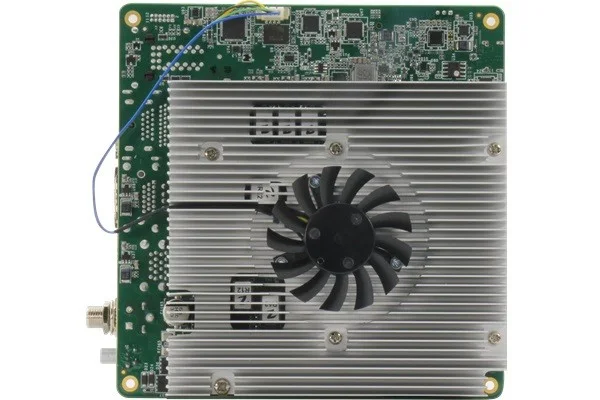

- Active cooler and 0.5 m/s airflow
- Width (mm)
- 120.35
- Length (mm)
- 122.5
- OS support
- Windows 10/11 64-bit; Ubuntu 22.04, kernel 6.5 or later
- TPM
- 2.0 onboard
- Processor family
- Intel Core Ultra
Ask us for current product status and availability.
