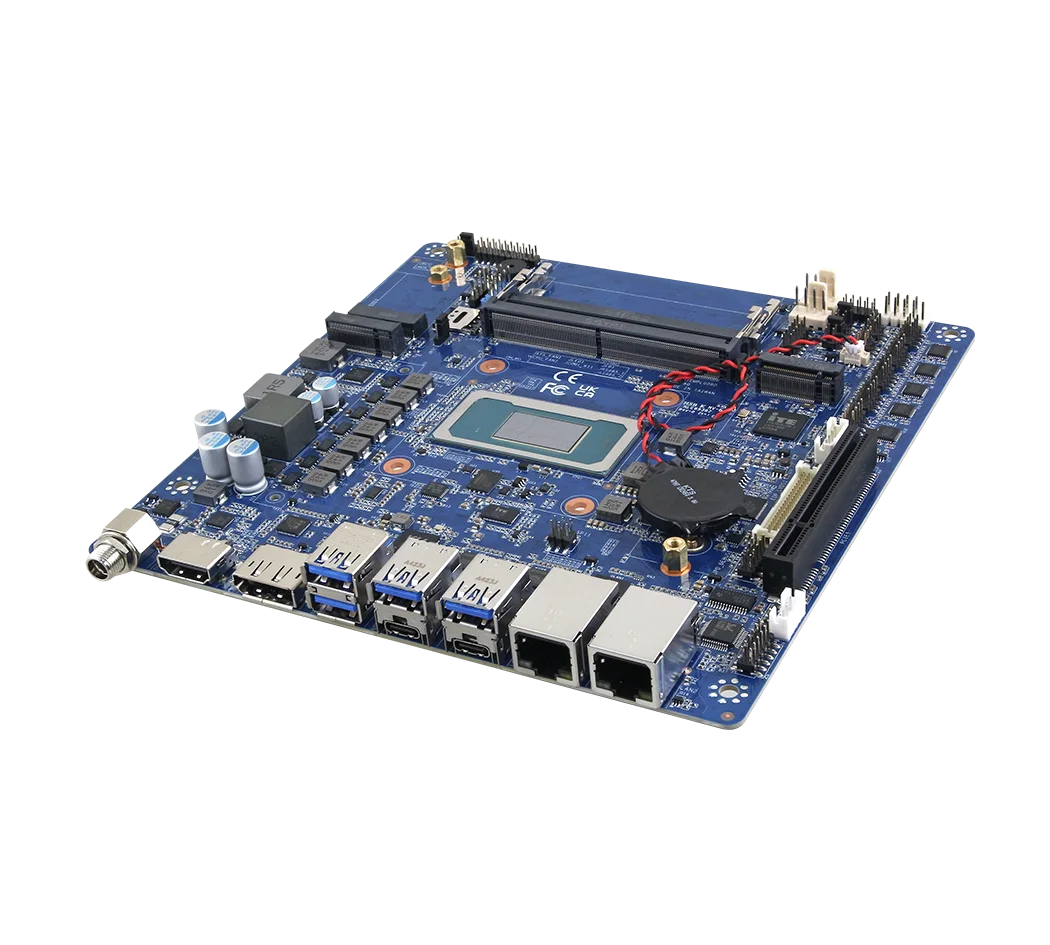

Avalue Technology · EMX-PTLP series
EMX-PTLP-H484-A1R
A Thin Mini-ITX platform with Intel Core Ultra Series 3 and out-of-band management. Expansion depends on the selected variant.
- Memory data rate (MT/s)
- 7200
Authorized Avalue Technology distributor
Specifications
- Processor / supported family
- Intel Core Ultra Series 3
- Maximum memory (GB)
- 64
- Form factor / system type
- Thin Mini-ITX
- Data LAN ports
- 2
- Memory type
- DDR5 SO-DIMM / CSO-DIMM
- Memory sockets
- 2
- Memory data rate (MT/s)
- 7200
- Ethernet specification
- 1 x 1GbE I210AT + 1 x 2.5GbE I226LM
- USB 2.0 ports
- 3
- USB 3.x ports, excluding Type-C
- 4
- USB Type-C ports
- 2
- GPIO bits
- 16
- M.2 Key B
- 2242/3042/3052; PCIe / USB; SIM
- M.2 Key E
- 2230; Wi-Fi / CNVi
- M.2 Key M
- 2 x 2280: Gen5 x4 + Gen4 x4 NVMe
- HDMI ports
- 1
- DisplayPort ports
- 1
- DC input minimum (V)
- 12
- DC input maximum (V)
- 24
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Operating temperature conditions
- Commercial CPU; 0.5 m/s airflow
- Storage minimum (°C)
- -40
- Storage maximum (°C)
- 75
- Width (mm)
- 170
- Length (mm)
- 170
- OS support
- Windows 11 LTSC / Linux
- TPM
- 2.0 onboard
- Remote management
- uBMC IT5792 or equivalent; out-of-band / IPMI
- Processor family
- Intel Core Ultra
- Release status
- Pre-release
Ask us for current product status and availability.
