Avalue Technology · HPM-GNRUA series

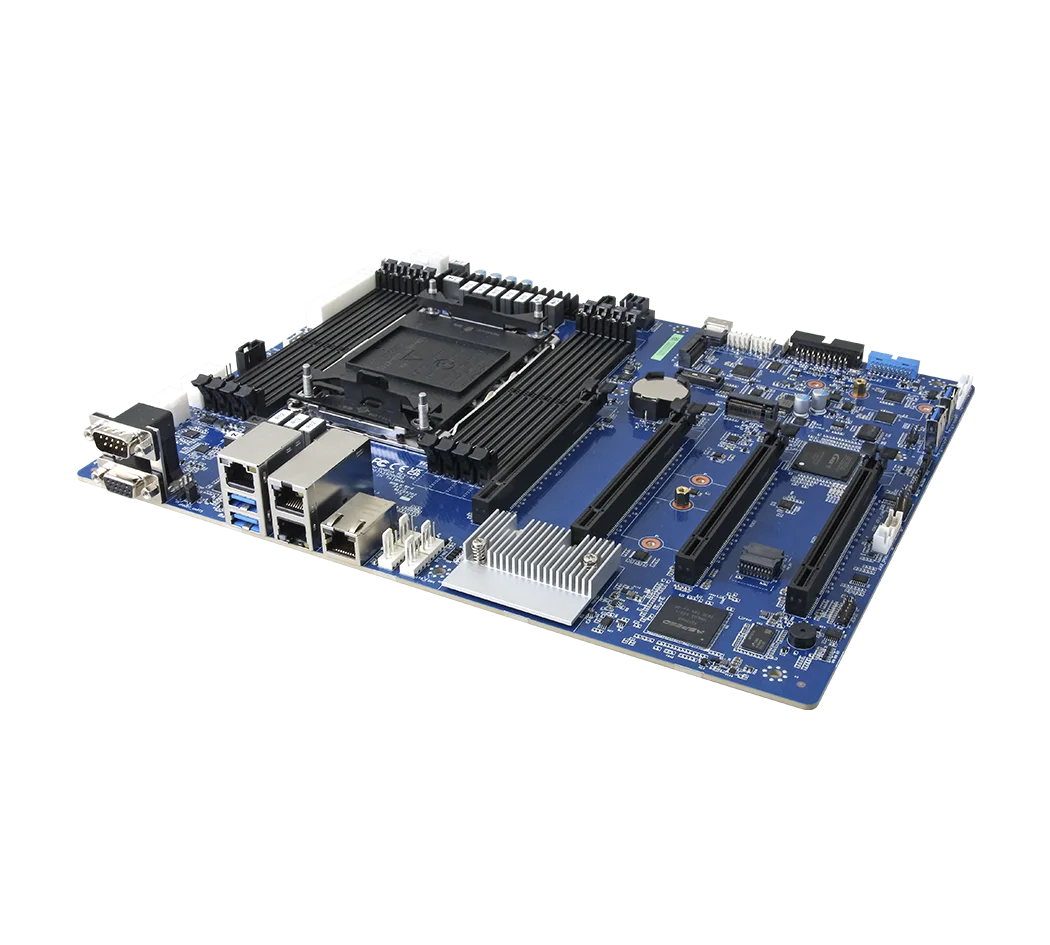

HPM-GNRUAL-A1R
An ATX server board supporting Intel Xeon 6 processors, DDR5 server memory, and IPMI management.
- Data LAN ports
- 1
Authorized Avalue Technology distributor
Specifications
- Processor / supported family
- Socket LGA4710; Intel Xeon 6 6500P / 6700P / 6700E
- Maximum memory (GB)
- 2048
- Form factor / system type
- ATX server board
- Data LAN ports
- 1
- Memory type
- DDR5 RDIMM / MRDIMM
- Memory sockets
- 8
- Memory data rate (MT/s)
- 6400 RDIMM / 8000 MRDIMM
- USB 3.x ports, excluding Type-C
- 2
- USB configuration
- 4 additional internal USB 3.2 Gen1
- COM ports
- 1
- Serial interfaces
- 1 rear RS-232 + 1 additional internal RS-232
- M.2 Key M
- 2 slots; 2260/2280/22110 PCIe Gen5 x4 NVMe
- SATA connectors
- 5
- VGA ports
- 1
- Display outputs
- VGA: 1920x1200 at 60 Hz
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 55
- Storage minimum (°C)
- -40
- Storage maximum (°C)
- 85
- Width (mm)
- 243.84
- Length (mm)
- 304.8
- OS support
- Windows 11 SAC/LTSC; Server 2025; Ubuntu 24.04; RHEL 8+
- TPM
- 2.0 onboard
- Remote management
- AST2600 BMC / IPMI 2.0
- Power input details
- 24-pin ATX + 3 x 8-pin SSI 12V
- Maximum CPU TDP (W)
- 350
- PCIe expansion
- 4 x PCIe Gen5 x16
- Processor family
- Intel Xeon
- Release status
- Active listing
- Configuration notes
- Data LAN count excludes dedicated management. Verify the management connector configuration on the L variant.
