Avalue Technology · MAB-T600 series

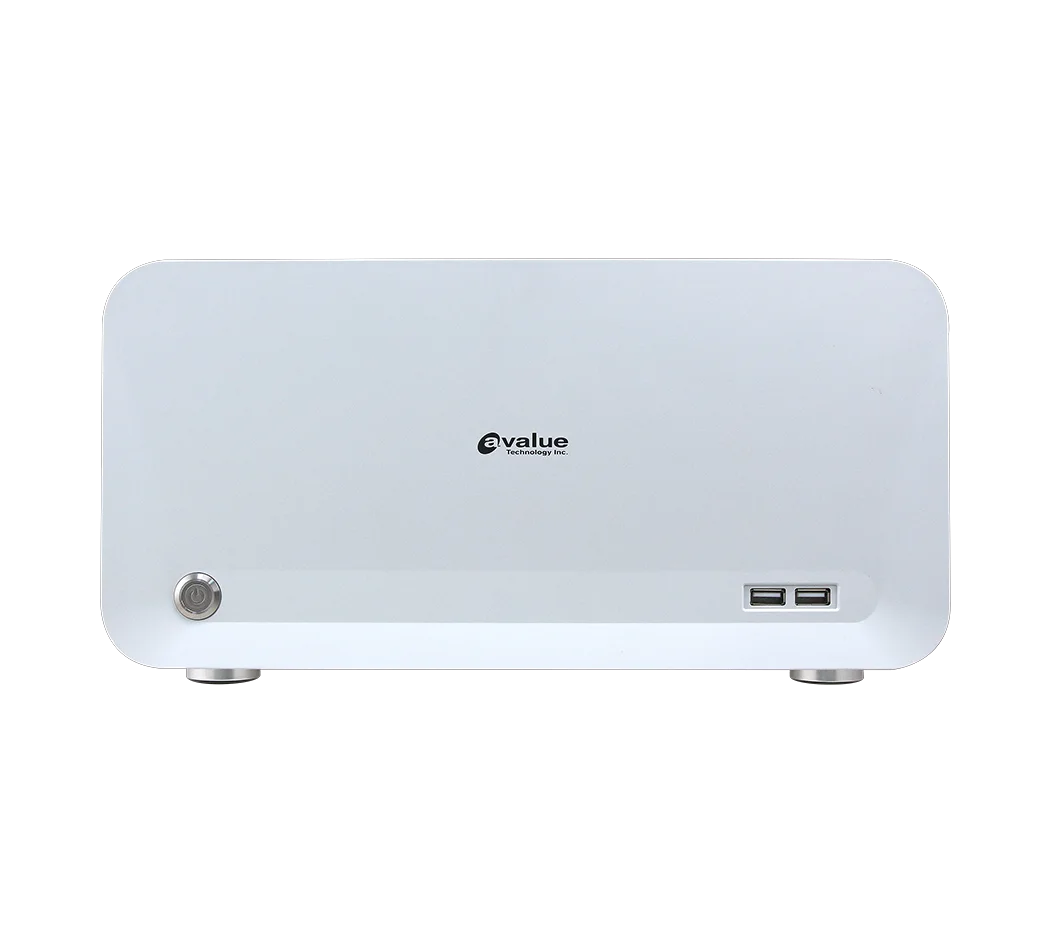

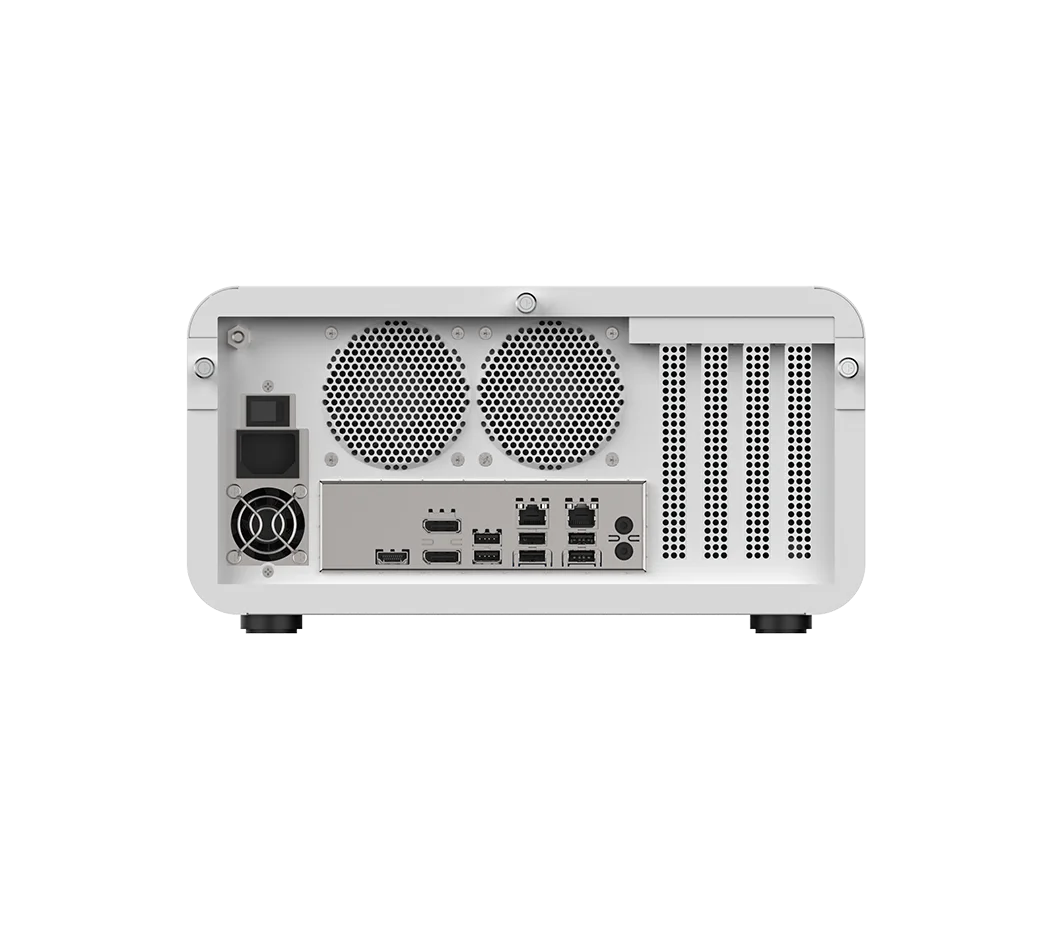

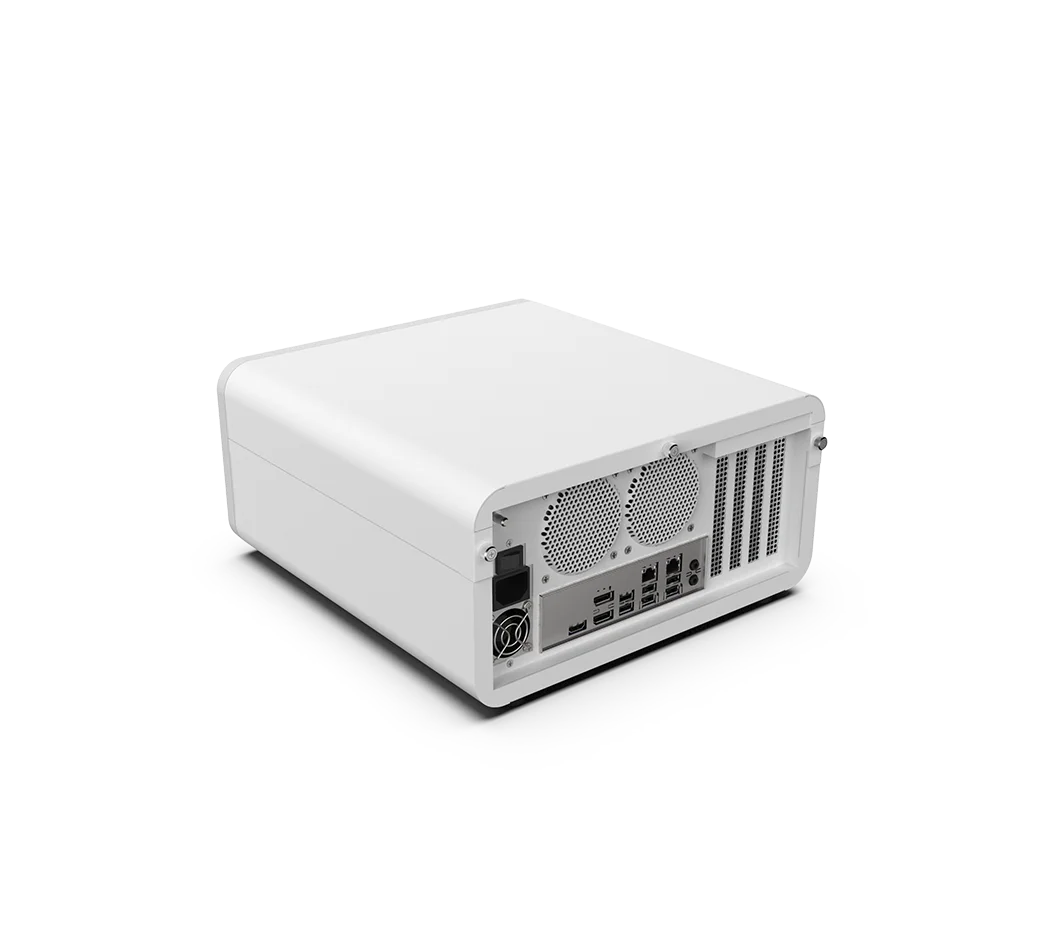

MAB-T600-A1-1R
A medical barebone computing platform with expansion for graphics and application-specific cards. CPU, memory, storage, and OS are configured separately.
- Processor
- Socket LGA1700; Intel 12th/13th Gen Core i9/i7/i5/i3, Pentium, Celeron; CPU not bundled
Authorized Avalue Technology distributor
Specifications
- Processor / supported family
- Socket LGA1700; Intel 12th/13th Gen Core i9/i7/i5/i3, Pentium, Celeron; CPU not bundled
- Maximum memory (GB)
- 64
- Form factor / system type
- Medical barebone
- Data LAN ports
- 2
- Memory type
- DDR5 UDIMM
- Memory sockets
- 2
- Memory data rate (MT/s)
- 4800 / 5600 CPU-dependent
- Ethernet specification
- 1 x 1GbE I219-V + 1 x 2.5GbE I225-LM
- USB 2.0 ports
- 4
- USB 3.x ports, excluding Type-C
- 4
- M.2 Key E
- 2230 CNVi; PCIe shares slot 4
- M.2 Key M
- 2242/2280/22110 NVMe PCIe x4 / SATA
- HDMI ports
- 1
- DisplayPort ports
- 2
- Independent displays
- 3
- Display outputs
- HDMI 2.0b / DP 1.4a: 3840x2160 at 60 Hz
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 40
- Storage minimum (°C)
- -30
- Storage maximum (°C)
- 70
- Width (mm)
- 330
- Length (mm)
- 344
- Height (mm)
- 160
- Weight (kg)
- 7
- OS support
- Windows 10 / Windows 11 / Linux
- TPM
- 2.0 onboard
- IP protection
- IPX1
- Internal PSU power (W)
- 500
- PCIe expansion
- 1 Gen5 x16; 3 Gen3 x1 (x4 open-ended / 2 x16 physical)
- Drive bays
- 2
- Drive bay specification
- 2.5-inch SATA; 3.5-inch optional
- GPU options
- Optional NVIDIA RTX 4000 Ada; additional options on product page
- Included configuration
- RX610H motherboard, 500W medical PSU, 65W CPU cooler. CPU/RAM/storage/OS on request.
- Processor family
- Intel Core
- Release status
- Active listing
- Configuration notes
- CPU, RAM, storage, and OS are not included in the listed barebone. Avalue limits its medical certification to the barebone configuration; added cards or modules may require recertification.
