Lincoln Technology Solutions · LCD Panels

LCD271-070CTL1ARNTTR1.0

Diagonal
7 in
Resolution
1200 × 1920
Brightness
3,600 nits
Interface
MIPI

IPS panel with projected capacitive touch, rated for −20 to 70 °C operation.

Request a quote
Request datasheet
Authorized Lincoln Technology Solutions distributor

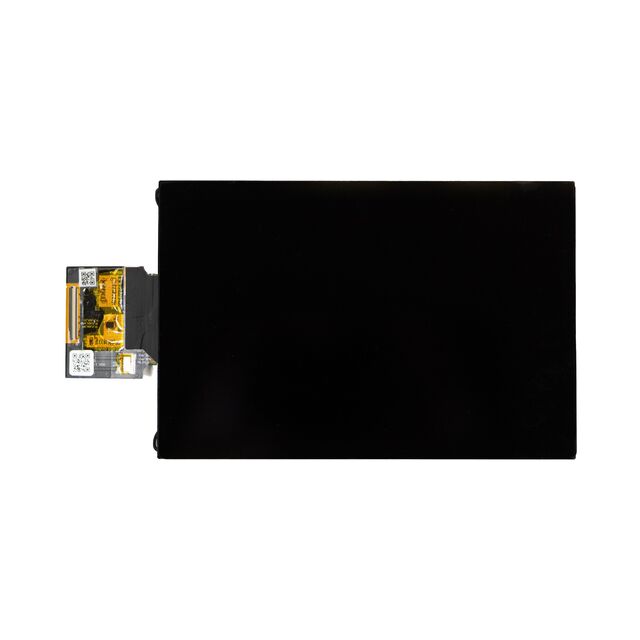

Lincoln LCD271 family photograph; configuration may vary
Supplier product-family photograph. Configuration may vary.

Specifications

Display & optics

Diagonal size
7 in
Resolution
1200 × 1920
Brightness
3,600 nits
Display mode
IPS
Technology
LCD

Integration & physical details

Interface
MIPI
Touch
PCAP included
Operating temperature
−20 to 70 °C
Storage temperature
−30 to 80 °C

Additional specifications

Surface treatment
Anti-reflective
Product type
LCD panel
Cover lens
Included

Documents

Request
Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityLCD271-070CTL1ARNTTR1.0

Please don’t include sensitive or confidential information in this form. Privacy notice

Loading form…

What information should I leave out?

Do not submit classified information, Controlled Unclassified Information (CUI), export-controlled technical data, payment-card information, Social Security numbers, health information, passwords, or other sensitive data through this form. Contact Edge to discuss an appropriate transfer method.

We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.

Send the quantity and your target date. We'll come back with pricing and availability.

Open the form

For documentation, pricing and availability: 800.647.3343.

Edge Electronics · Product summary
Lincoln Technology Solutions · LCD271-070CTL1ARNTTR1.0

https://www.edgeelectronics.com/p/lincoln-technology-lcd271-070ctl1arnttr1-0/

Confirm specifications for the required revision with Edge or the manufacturer. For documentation, pricing and availability: 800.647.3343.

Complete the display.

The parts that turn this panel into a working display. Which ones you need depends on your host system and application.

Plan your display

Send this panel and the layers you need in one request. Nothing is sent until you submit.

  1. Panel

    LCD271-070CTL1ARNTTR1.0 · 7 in · MIPI

  2. Touch and cover glass

    Projected capacitive touch built in

    Cover lens included

    Touch sensing and cover options matched to the environment and the enclosure.

    Touch options

  3. Control and computing

    MIPI interface

    Controller boards that convert system video outputs to the panel's interface.

    Find a controller for your LCD.

    Search Digital View’s Controller Solution Generator by panel model number.

    Enter a complete or partial model number.

    We can help confirm the controller version, panel cables, backlight driver, and configuration for your application. A connection result does not establish price or availability.

    Contact us →
     LCD controllers Single-board computers

  4. Backlight power

    LED backlight driver boards matched to your display and dimming requirements.

    LED drivers

  5. Cables and harnesses

    Interface cabling built to the length and routing the enclosure needs.

    LCD cables

  6. Enhancements and integration

    Surface: Anti-reflective

    Optical bonding, anti-glare, brightness, and extended temperature work. We can also arrange enclosures and other custom work case by case, with the manufacturer or our integration partners.

    Display enhancements LCD kits
