Micron 5300 to 5400 SSD transition guide

The Micron 5300 has reached end of life. Use the configuration cross-references below when evaluating the Micron 5400 SATA SSD.

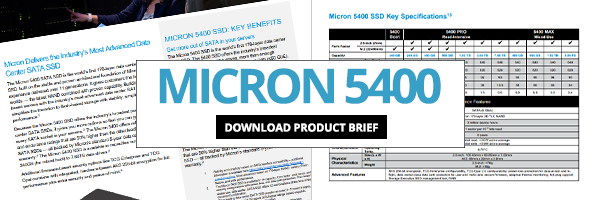

The 5400 retains the data center SATA architecture and moves to Micron’s 176-layer NAND. It offers BOOT, PRO and MAX configurations in M.2 and 2.5-inch form factors. The Micron product brief lists the capacity, endurance and feature options by model.

Updated September 11, 2026.

Historical EOL dates

Edge’s October 2022 transition notice recorded these dates for the 5300:

• Last time buy: January 31, 2023
• Final shipment period for previously received orders: February 1 through July 31, 2023

Q&A with our FAE, Keith Peterson

Keith Peterson explained the architectural continuity in Edge’s original 2022 guide:

Q: What is new in the Micron 5400 SSD compared to the Micron 5300 SSD?

A: Very little, and that’s a good thing! The Micron 5400 leverages the same proven architecture and firmware stack as the Micron 5300. The major change was to refresh the product onto the latest 176-layer replacement gate (RG) NAND. As the 11th generation data center SATA SSD from Micron, customers that have previously qualified the Micron 5300 can expect fast and easy qualifications due to the architectural commonality between the two drives.

Security and sourcing configurations

The Micron 5400 supports SED configurations with TCG Opal and TCG Enterprise options. TAA status is a separate configuration and sourcing question; follow the TAA verification checklist and confirm the full MPN and current manufacturer documentation. Confirm any FIPS requirement against the exact drive rather than assuming it from the family name.

5300 to 5400 part-number cross-references

These are the configurations in Edge’s original transition tables. Use them as starting points for qualification, with the complete part number, firmware and security requirements checked for the actual system. A matching capacity and form factor alone do not establish interchangeability.

BOOT cross-references

Non-TCG

Form Factor	Capacity	5300 Part Number	New 5400 Part Number
M.2	240GB	MTFDDAV240TDU-1AW1ZABYY	MTFDDAV240TGC-1BC1ZABYY

TCG Opal

Form Factor	Capacity	5300 Part Number	New 5400 Part Number
M.2	240GB	MTFDDAV240TDU-1AW15ABYY	MTFDDAV240TGC-1BC15ABYY

TCG Enterprise

Form Factor	Capacity	5300 Part Number	New 5400 Part Number
M.2	240GB	MTFDDAV240TDU-1AW16ABYY	MTFDDAV240TGC-1BC16ABYY

PRO cross-references

Non-TCG

Form Factor	Capacity	5300 Part Number	New 5400 Part Number
2.5-in.	240GB	MTFDDAK240TDS-1AW1ZABYY	MTFDDAK240TGA-1BC1ZABYY
2.5-in.	480GB	MTFDDAK480TDS-1AW1ZABYY	MTFDDAK480TGA-1BC1ZABYY
2.5-in.	960GB	MTFDDAK960TDS-1AW1ZABYY	MTFDDAK960TGA-1BC1ZABYY
2.5-in.	1920GB	MTFDDAK1T9TDS-1AW1ZABYY	MTFDDAK1T9TGA-1BC1ZABYY
2.5-in.	3840GB	MTFDDAK3T8TDS-1AW1ZABYY	MTFDDAK3T8TGA-1BC1ZABYY
2.5-in.	7680GB	MTFDDAK7T6TDS-1AW1ZABYY	MTFDDAK7T6TGA-1BC1ZABYY
M.2	240GB	MTFDDAV240TDS-1AW1ZABYY	MTFDDAV240TGA-1BC1ZABYY
M.2	480GB	MTFDDAV480TDS-1AW1ZABYY	MTFDDAV480TGA-1BC1ZABYY
M.2	960GB	MTFDDAV960TDS-1AW1ZABYY	MTFDDAV960TGA-1BC1ZABYY

TCG Opal

Form Factor	Capacity	5300 Part Number	New 5400 Part Number
2.5-in.	240GB	MTFDDAK240TDS-1AW15ABYY	MTFDDAK240TGA-1BC15ABYY
2.5-in.	480GB	MTFDDAK480TDS-1AW15ABYY	MTFDDAK480TGA-1BC15ABYY
2.5-in.	960GB	MTFDDAK960TDS-1AW15ABYY	MTFDDAK960TGA-1BC15ABYY
2.5-in.	1920GB	MTFDDAK1T9TDS-1AW15ABYY	MTFDDAK1T9TGA-1BC15ABYY
2.5-in.	3840GB	MTFDDAK3T8TDS-1AW15ABYY	MTFDDAK3T8TGA-1BC15ABYY
2.5-in.	7680GB	MTFDDAK7T6TDS-1AW15ABYY	MTFDDAK7T6TGA-1BC15ABYY
M.2	240GB	MTFDDAV240TDS-1AW15ABYY	MTFDDAV240TGA-1BC15ABYY
M.2	480GB	MTFDDAV480TDS-1AW15ABYY	MTFDDAV480TGA-1BC15ABYY
M.2	960GB	MTFDDAV960TDS-1AW15ABYY	MTFDDAV960TGA-1BC15ABYY

TCG Enterprise

Form Factor	Capacity	5300 Part Number	New 5400 Part Number
2.5-in.	240GB	MTFDDAK240TDS-1AW16ABYY	MTFDDAK240TGA-1BC16ABYY
2.5-in.	480GB	MTFDDAK480TDS-1AW16ABYY	MTFDDAK480TGA-1BC16ABYY
2.5-in.	960GB	MTFDDAK960TDS-1AW16ABYY	MTFDDAK960TGA-1BC16ABYY
2.5-in.	1920GB	MTFDDAK1T9TDS-1AW16ABYY	MTFDDAK1T9TGA-1BC16ABYY
2.5-in.	3840GB	MTFDDAK3T8TDS-1AW16ABYY	MTFDDAK3T8TGA-1BC16ABYY
2.5-in.	7680GB	MTFDDAK7T6TDS-1AW16ABYY	MTFDDAK7T6TGA-1BC16ABYY
M.2	240GB	MTFDDAV240TDS-1AW16ABYY	MTFDDAV240TGA-1BC16ABYY
M.2	480GB	MTFDDAV480TDS-1AW16ABYY	MTFDDAV480TGA-1BC16ABYY
M.2	960GB	MTFDDAV960TDS-1AW16ABYY	MTFDDAV960TGA-1BC16ABYY

MAX cross-references

Non-TCG

Form Factor	Capacity	5300 Part Number	New 5400 Part Number
2.5-in.	480GB	MTFDDAK480TDT-1AW1ZABYY	MTFDDAK480TGB-1BC1ZABYY
2.5-in.	960GB	MTFDDAK960TDT-1AW1ZABYY	MTFDDAK960TGB-1BC1ZABYY
2.5-in.	1920GB	MTFDDAK1T9TDT-1AW1ZABYY	MTFDDAK1T9TGB-1BC1ZABYY
2.5-in.	3840GB	MTFDDAK3T8TDT-1AW1ZABYY	MTFDDAK3T8TGB-1BC1ZABYY

TCG Opal

Form Factor	Capacity	5300 Part Number	New 5400 Part Number
2.5-in.	480GB	MTFDDAK480TDT-1AW15ABYY	MTFDDAK480TGB-1BC15ABYY
2.5-in.	960GB	MTFDDAK960TDT-1AW15ABYY	MTFDDAK960TGB-1BC15ABYY
2.5-in.	1920GB	MTFDDAK1T9TDT-1AW15ABYY	MTFDDAK1T9TGB-1BC15ABYY
2.5-in.	3840GB	MTFDDAK3T8TDT-1AW15ABYY	MTFDDAK3T8TGB-1BC15ABYY

TCG Enterprise

Form Factor	Capacity	5300 Part Number	New 5400 Part Number
2.5-in.	480GB	MTFDDAK480TDT-1AW16ABYY	MTFDDAK480TGB-1BC16ABYY
2.5-in.	960GB	MTFDDAK960TDT-1AW16ABYY	MTFDDAK960TGB-1BC16ABYY
2.5-in.	1920GB	MTFDDAK1T9TDT-1AW16ABYY	MTFDDAK1T9TGB-1BC16ABYY
2.5-in.	3840GB	MTFDDAK3T8TDT-1AW16ABYY	MTFDDAK3T8TGB-1BC16ABYY

For the model and option codes, see Micron’s 5400 technical specification. The tables cover the listed configurations, rather than every possible 5300 or 5400 part.

Send us the existing 5300 part number and your timing. Ask about a replacement, including qualification and current supply options.
