Industrial motherboard

ASUS IoT Q670EA-IM-A

Industrial motherboard with configuration details in the manufacturer datasheet. Review processor, memory, interfaces and installation requirements with Edge.

Request a quote Plan a system around this model →

Q670EA-IM-A datasheet

At a glance

Q670EA-IM-A platform details

Platform: Industrial motherboard
Processor / supported family: LGA1700 for Intel 14th / 13th/ 12thGen. Core i9/ i7/ i5/ i3/ Pentium /Celeron Processors Max. 125W TDP
Memory options: Technology: DDR5 4400 MT/s (2DPC -1DIMM 1R&2R) 4000 MT/s (2DPC -2DIMM 1R) 3600 MT/s (2DPC -2DIMM 2R); Maximum: 192 GB; Sockets: 4 x U-DIMM

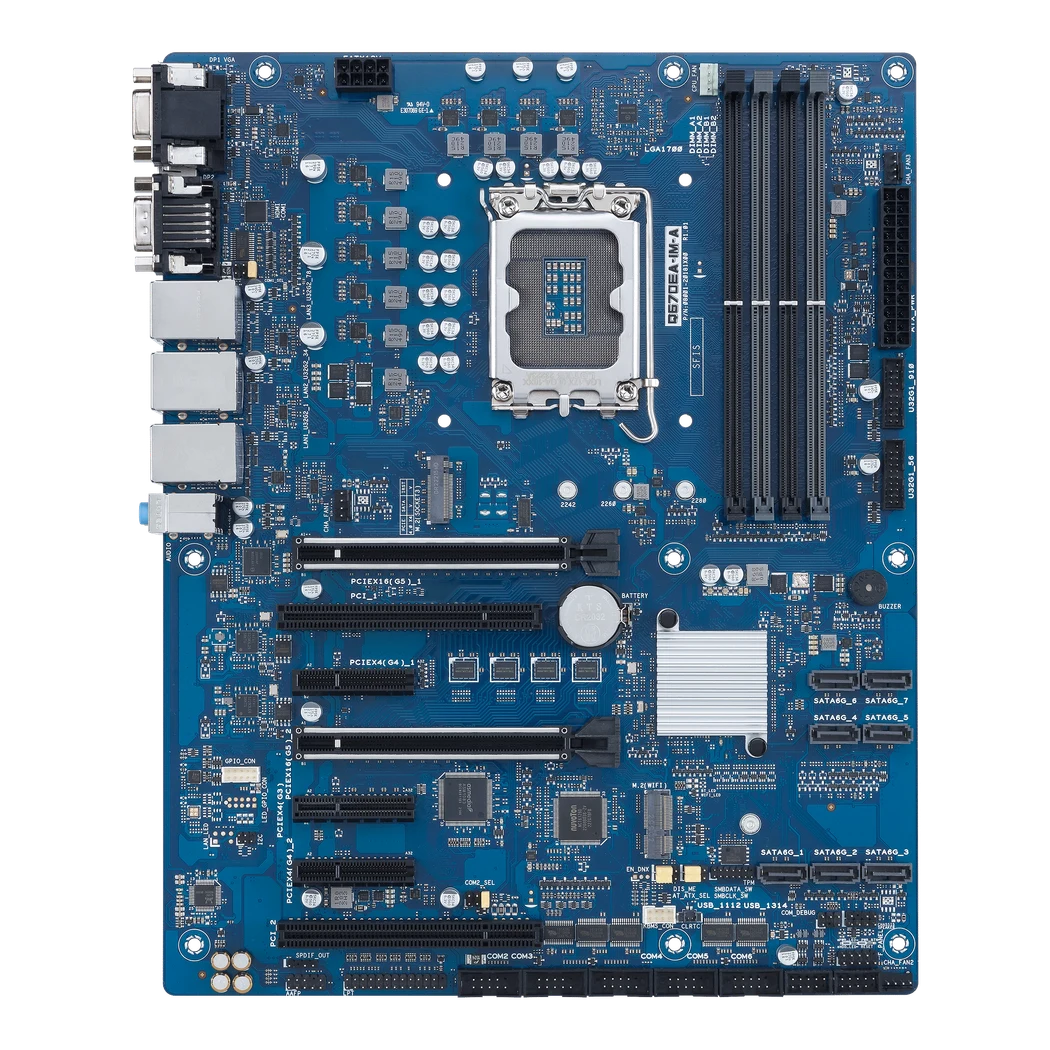

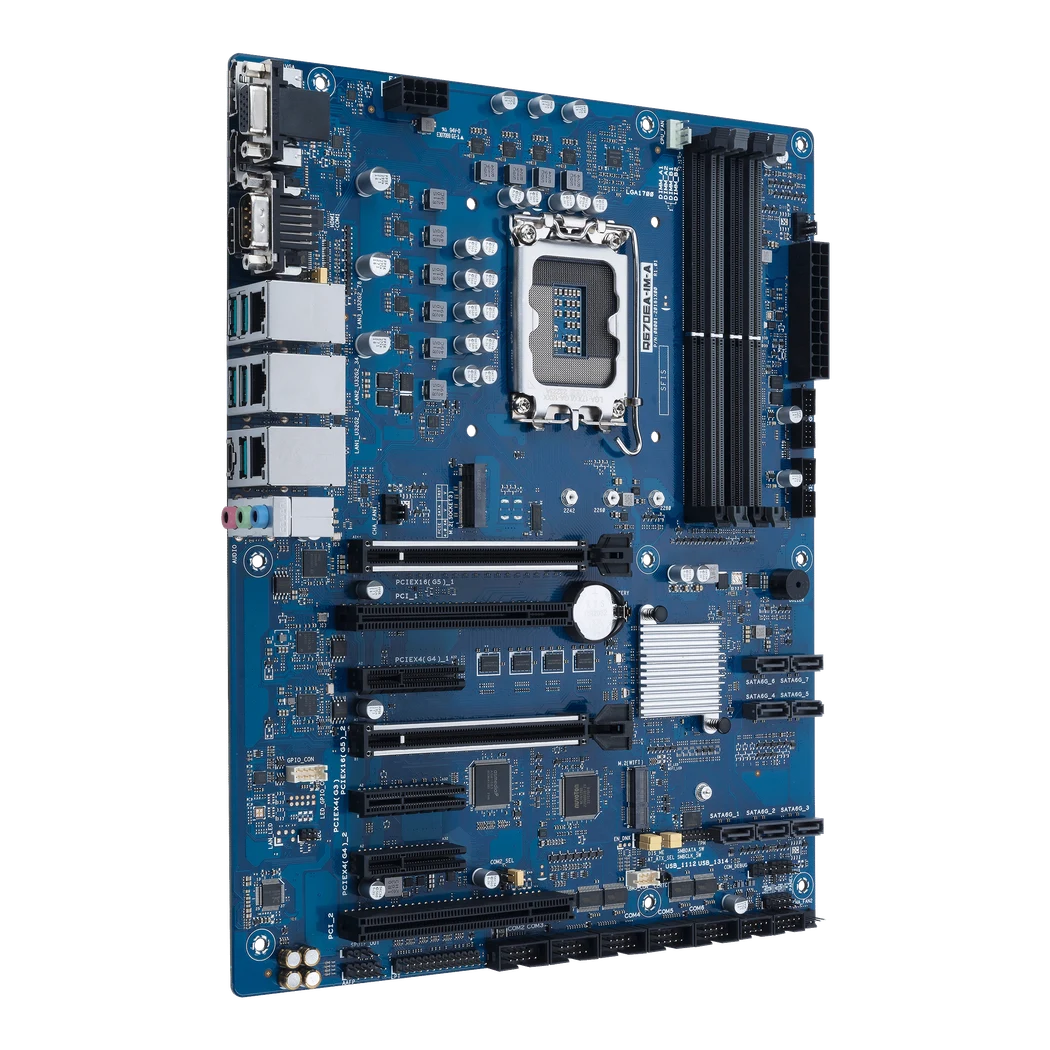

Product photographs

Configuration and availability

Contact Edge to confirm the exact ordering number and configuration for your application.

Documents

PDF

Q670EA-IM-A datasheet

Manufacturer specifications and ordering information. Match the configuration to the selected part number.
