- Processor
- Intel Processor N150
3.5-inch SBC
Avalue ECM-TWL
A 3.5-inch board with Intel Twin Lake processor options, DDR5 memory support, and industrial I/O.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
ECM-TWL platform details shared by listed variants
- Platform
- 3.5-inch SBC
- Maximum memory (GB)
- 16
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2 x 2.5GbE Intel I226V
- Display outputs
- HDMI 2.0b / DP 1.4a: 4096x2160 at 60 Hz; LVDS or eDP
- Data LAN ports
- 2
- Memory sockets
- 1
- Memory data rate (MT/s)
- 4800
Choose your ECM-TWL configuration
3 ordering numbers. The confirmed differences are shown below.
- Processor
- Intel Processor N250
- Processor
- Intel Core 3 N355
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

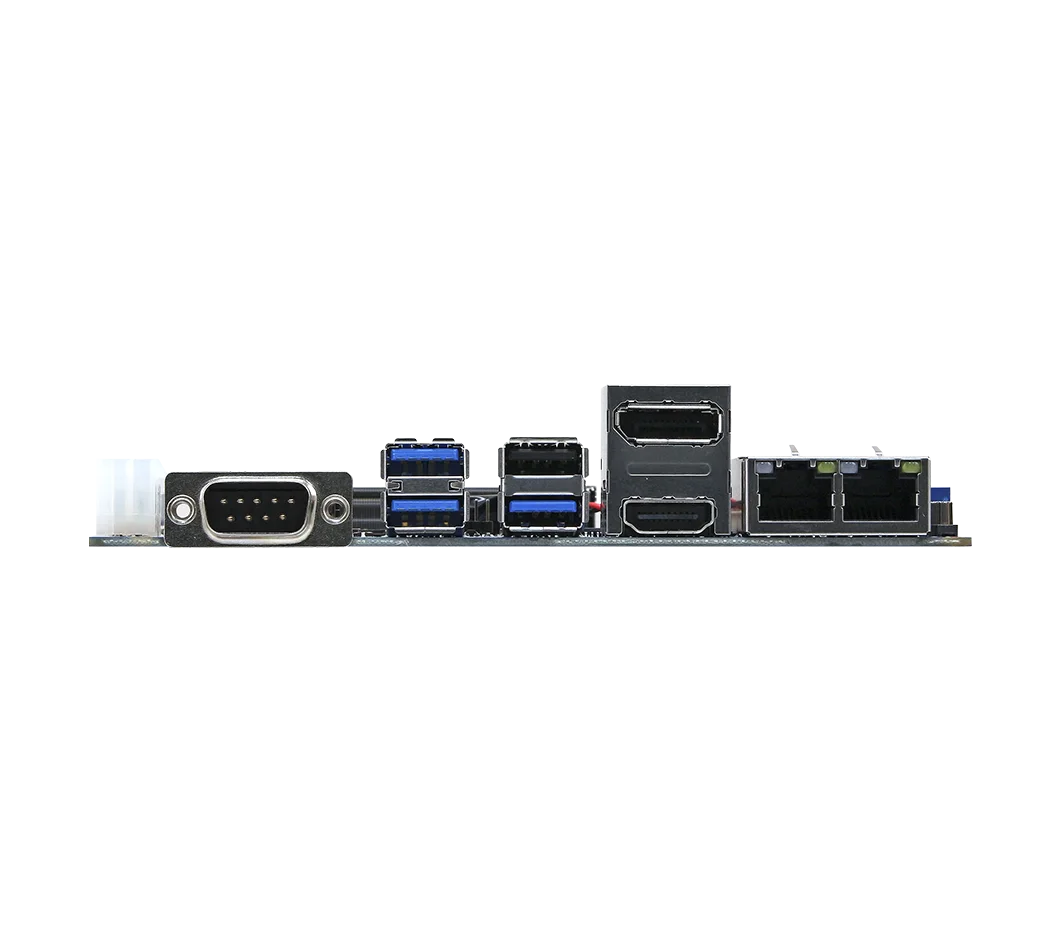

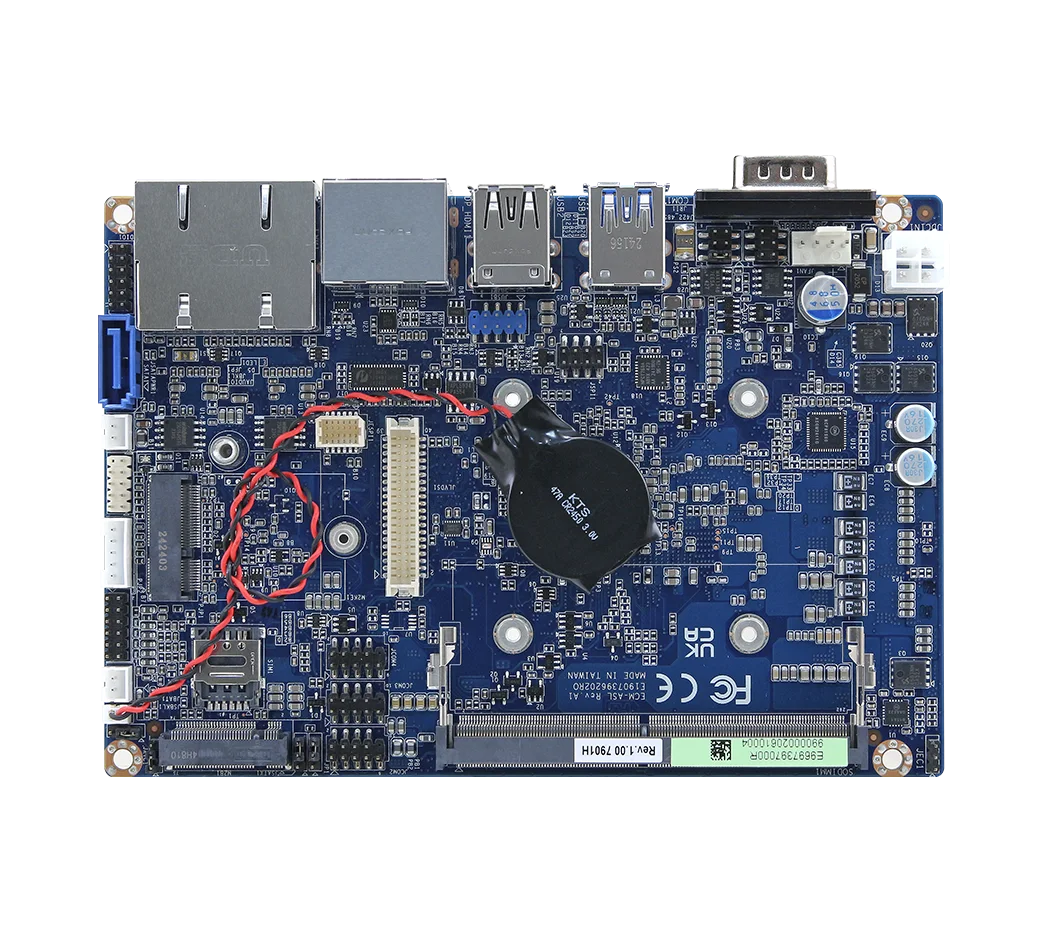

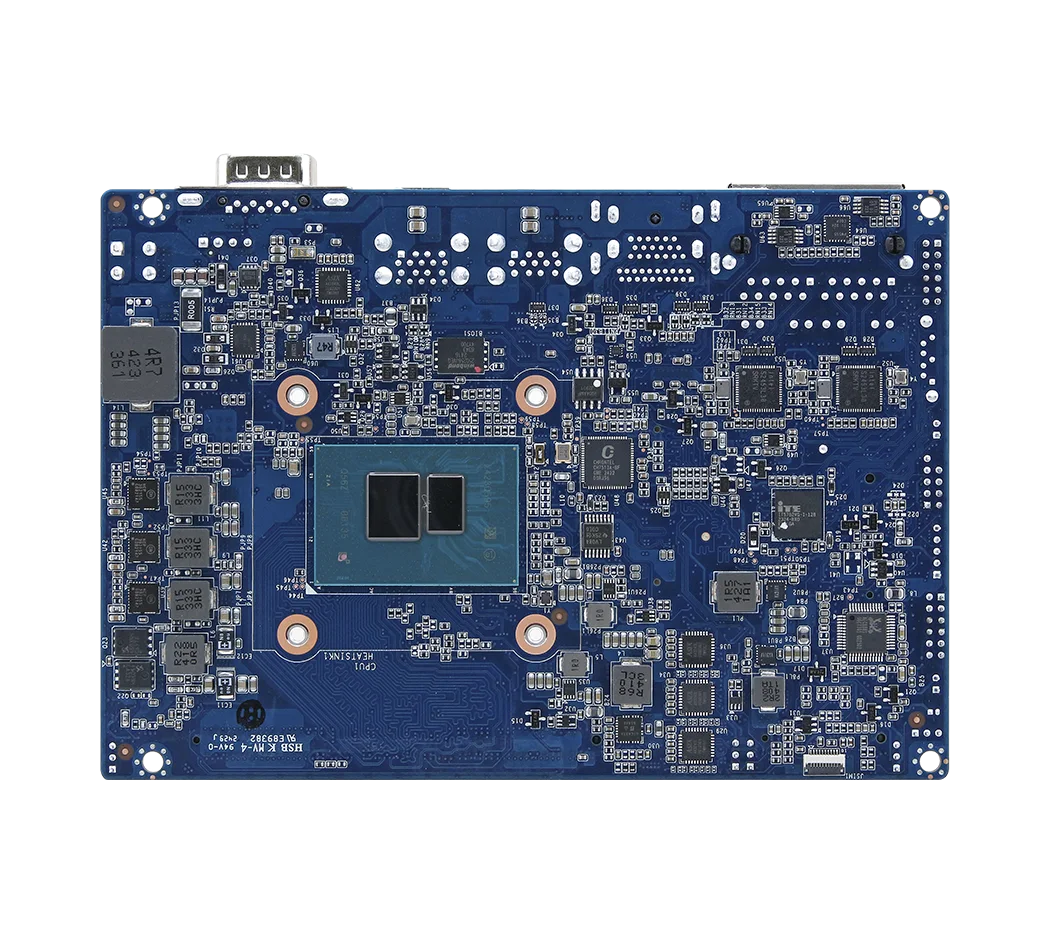

Product photographs
Technical specifications
ECM-TWL common specifications
- USB 2.0 ports
- 3
- USB 3.x ports, excluding Type-C
- 3
- COM ports
- 4
- Serial interfaces
- 3 RS-232 + 1 RS-232/422/485
- GPIO bits
- 8
- M.2 Key B
- 3042/3052/2242; PCIe x1 / USB
- M.2 Key E
- 2230; PCIe / USB
- SATA connectors
- 1
- HDMI ports
- 1
- DisplayPort ports
- 1
- Independent displays
- 3
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Operating temperature conditions
- 0.5 m/s airflow
- Storage minimum (°C)
- -40
- Storage maximum (°C)
- 85
- Width (mm)
- 101
- Length (mm)
- 146
- Weight (kg)
- 0.2
- OS support
- Windows 11 / Linux
- TPM
- 2.0 onboard
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
