Expandable box PC
Avalue EMS-MTU
An Intel Core Ultra system with modular I/O expansion for industrial equipment.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
EMS-MTU platform details
- Platform
- Expandable box PC
- Processor / supported family
- Intel Core Ultra 7 155U / Ultra 5 125U; 165U / 135U project options
- Maximum memory (GB)
- 64
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2 x 2.5GbE Intel I226IT
- Display outputs
- HDMI / DP++: 4096x2304 at 60 Hz
- Processor family
- Intel Core Ultra
- Memory sockets
- 2

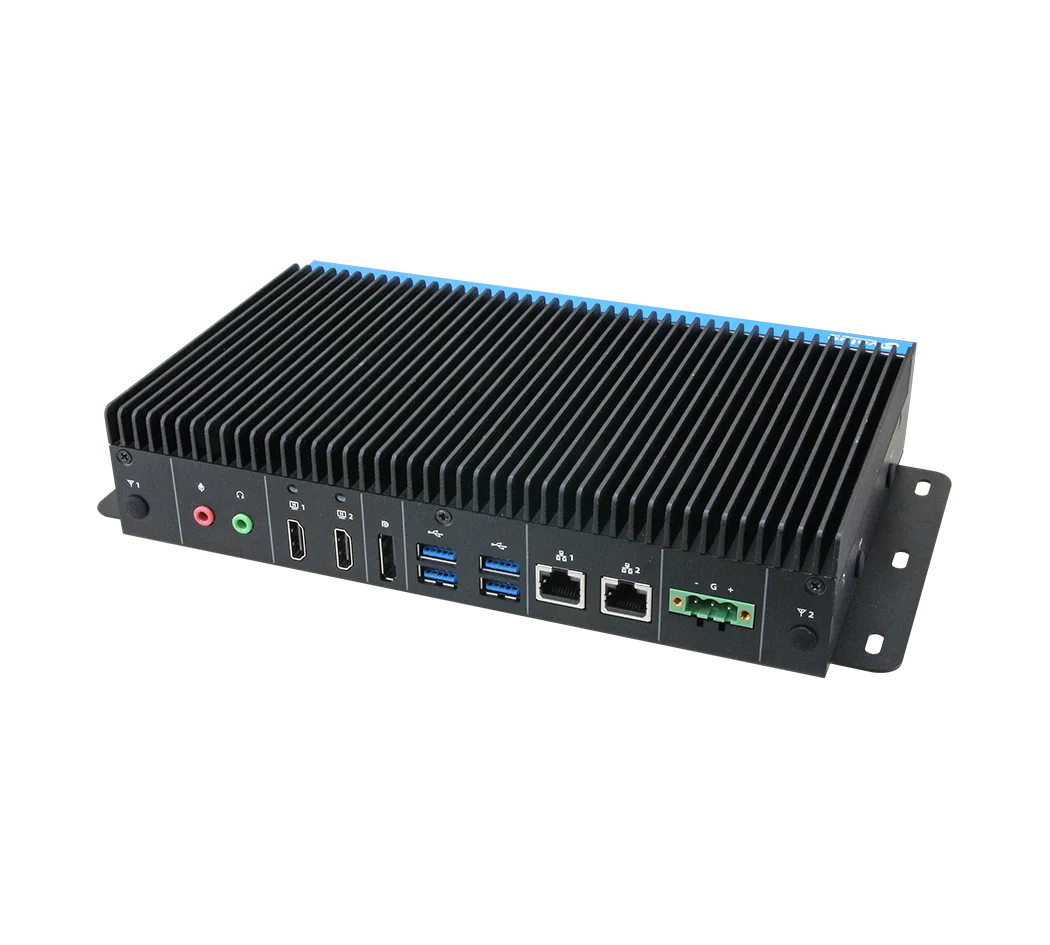

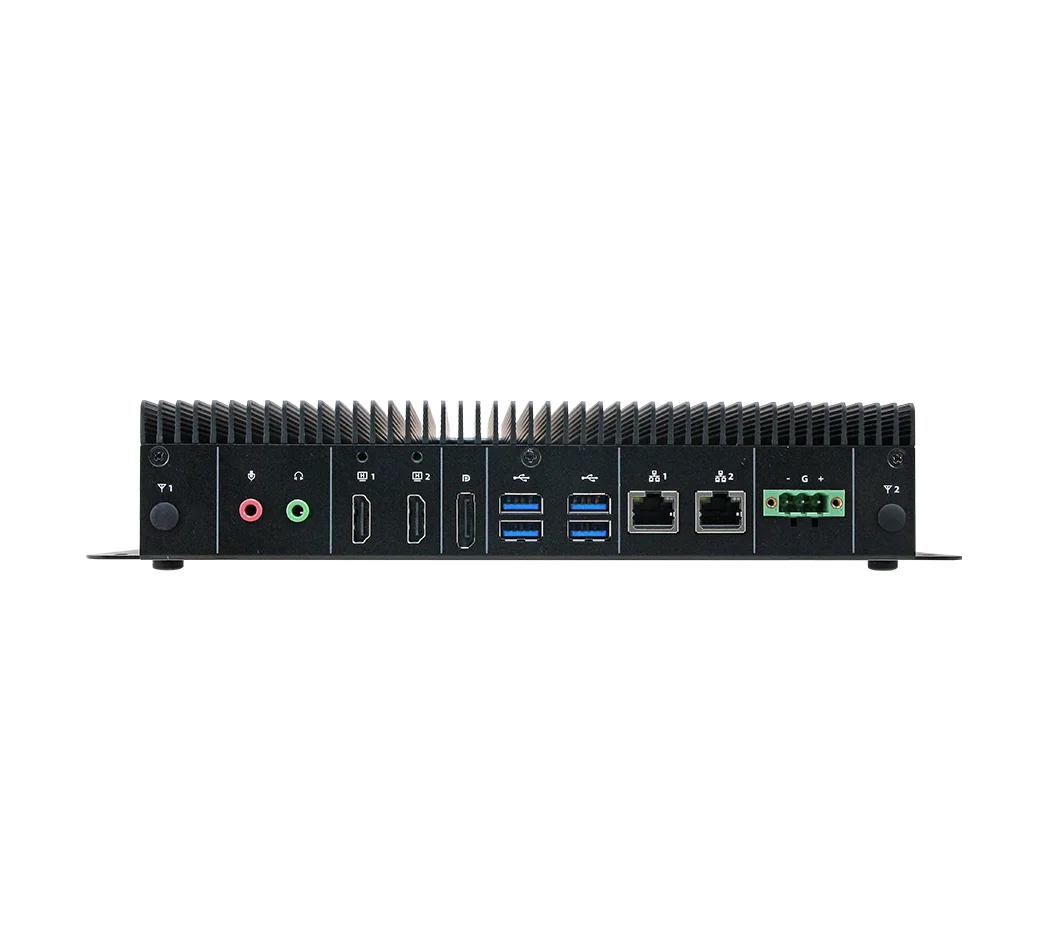

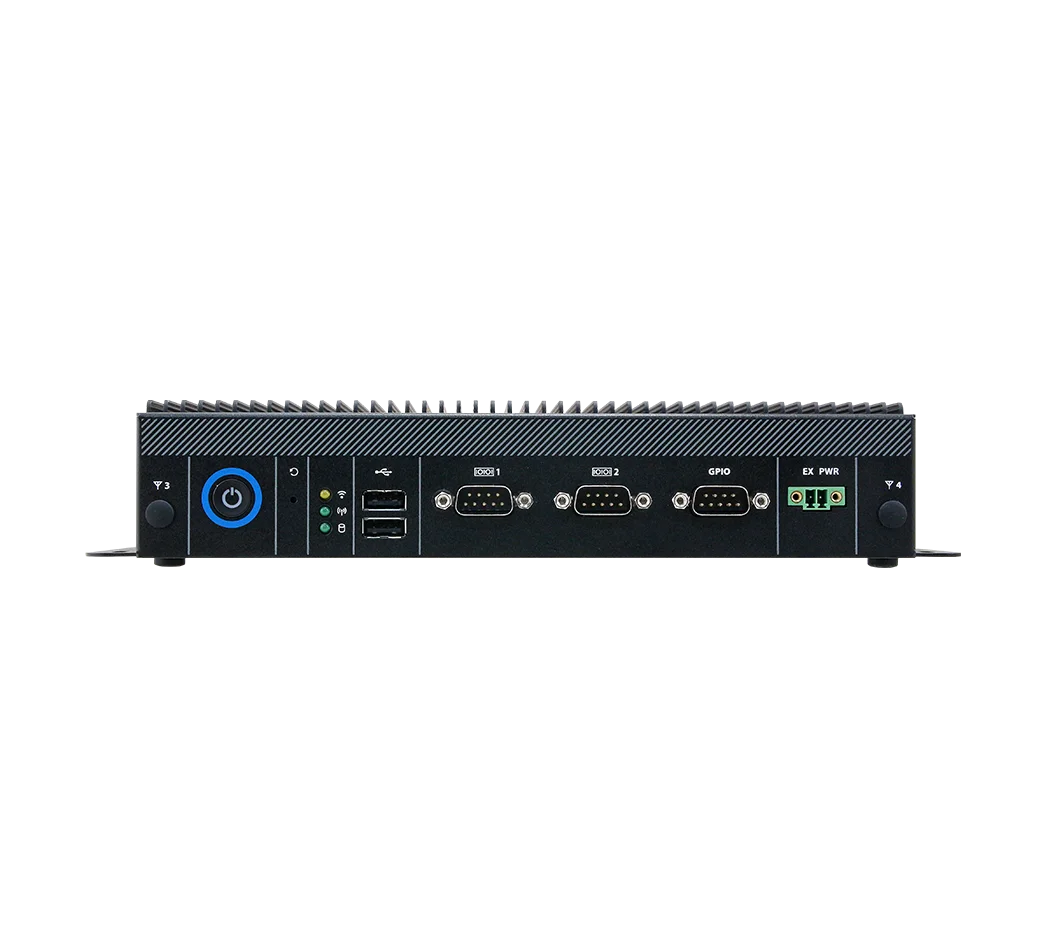

Product photographs
Technical specifications
EMS-MTU common specifications
- Memory data rate (MT/s)
- 5600
- Data LAN ports
- 2
- USB 2.0 ports
- 2
- USB 3.x ports, excluding Type-C
- 4
- COM ports
- 2
- Serial interfaces
- 2 RS-232/422/485
- GPIO bits
- 8
- M.2 Key B
- 2242 SATA SSD / 3042 / 3052; PCIe / USB; SIM
- M.2 Key E
- 2230; PCIe / USB
- M.2 Key M
- 2280; PCIe Gen4 x4 NVMe
- HDMI ports
- 2
- DisplayPort ports
- 1
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Operating minimum (°C)
- -40
- Operating maximum (°C)
- 60
- Operating temperature conditions
- 64GB RAM + SSD: -40 to 60 C; 32GB RAM + SSD: -40 to 65 C; ambient airflow
- Storage minimum (°C)
- -30
- Storage maximum (°C)
- 70
- Width (mm)
- 240
- Length (mm)
- 150
- Height (mm)
- 49
- Weight (kg)
- 2.1
- OS support
- Windows 10 / Windows 11 / Linux
- TPM
- 2.0
- IP protection
- IP50
- Mounting
- Wall standard; DIN rail optional
- Fanless
- Yes
- IET expansion
- 1 IET interface
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
