Compact box PC · Pre-release
Avalue EPC-PTL
A compact Intel Core Ultra Series 3 system with PCIe Gen5 storage support. Thermal ratings depend on configuration.
Pre-release platform. Confirm the final configuration and production timing with Edge.
At a glance
EPC-PTL platform details
- Platform
- Compact box PC
- Processor / supported family
- Intel Core Ultra 7 365 / 355; Ultra 5 335 / 322 (family options)
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2 x 2.5GbE Intel I226IT
- Display outputs
- HDMI 2.1b / DP 2.1: 7680x4320 at 30 Hz; USB-C DP: 4096x2160 at 60 Hz
- Processor family
- Intel Core Ultra
- Memory sockets
- 1
- Data LAN ports
- 2

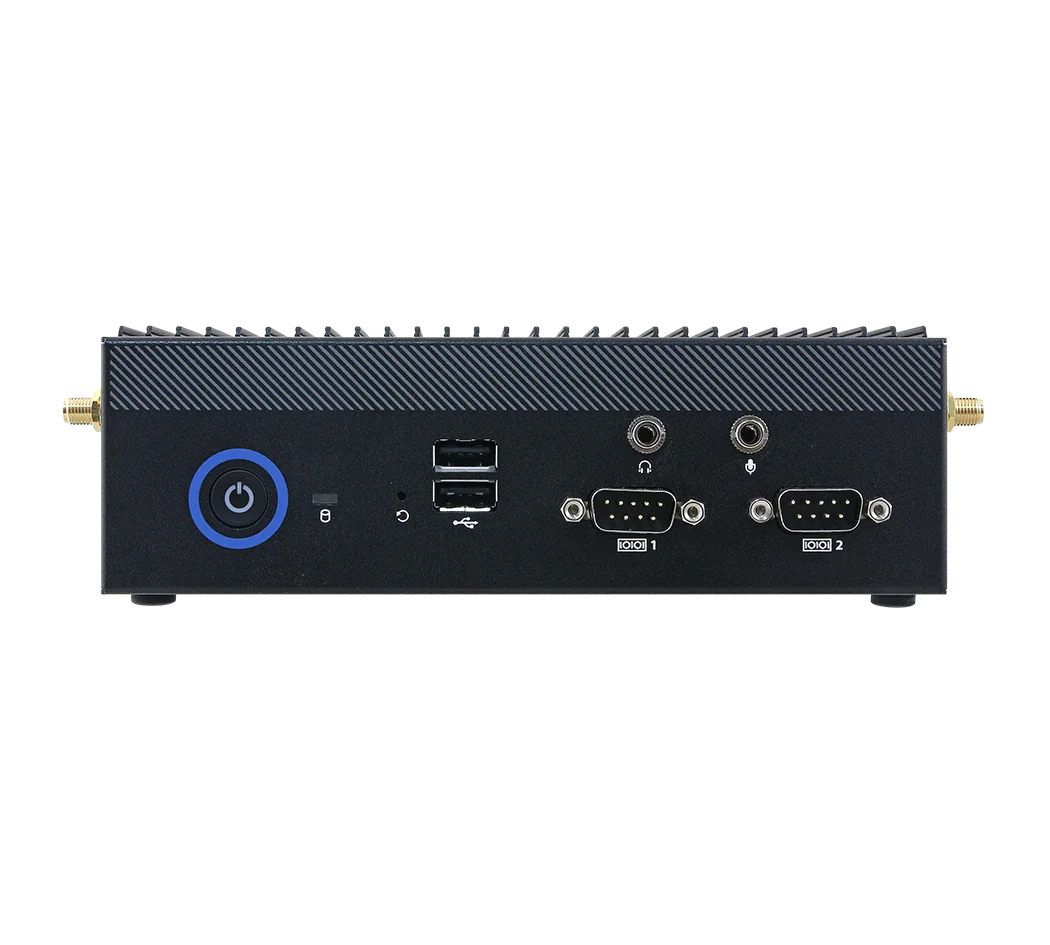

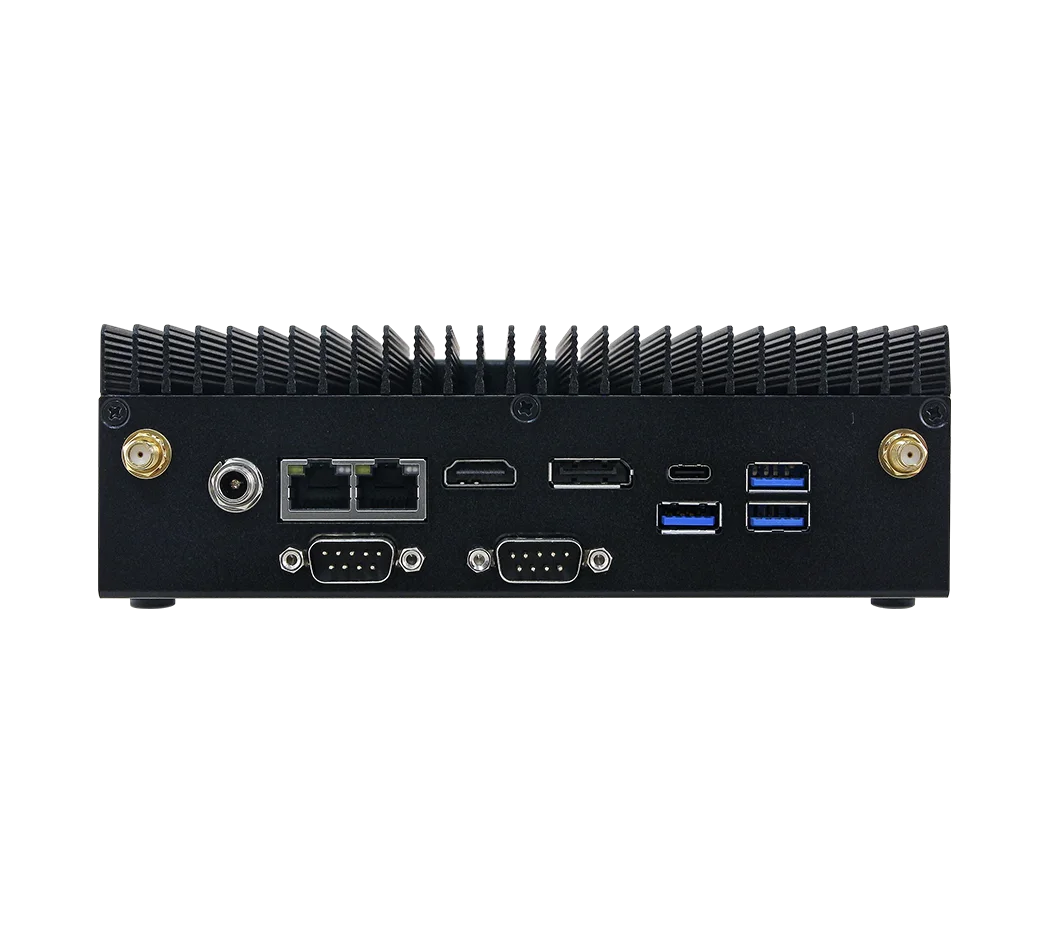

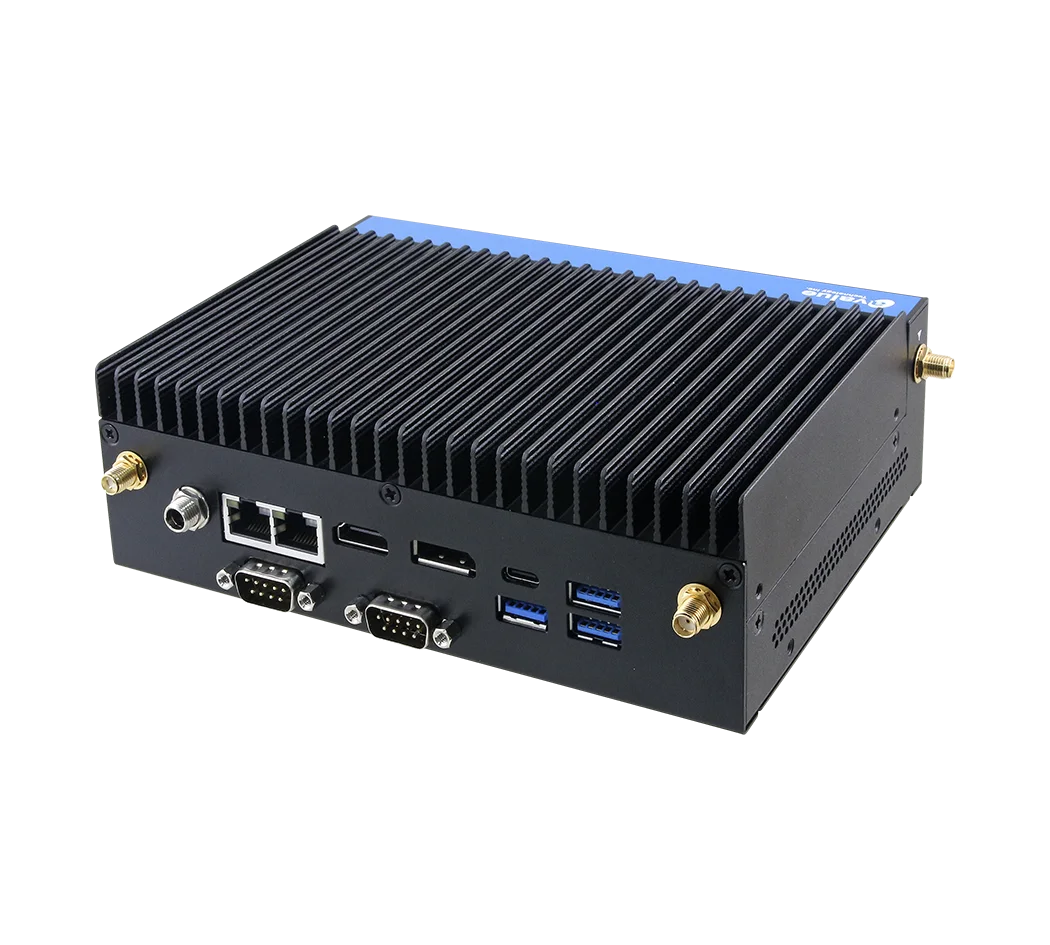

Product photographs
Technical specifications
EPC-PTL common specifications
- USB 2.0 ports
- 2
- USB 3.x ports, excluding Type-C
- 3
- USB Type-C ports
- 1
- COM ports
- 2
- Serial interfaces
- 2 RS-232, or 1 RS-232 + 8-bit DIO
- M.2 Key B
- 3042/3052/2242; PCIe / USB; SIM
- M.2 Key E
- 2230; Wi-Fi / CNVi
- M.2 Key M
- 2280; PCIe Gen5 NVMe
- HDMI ports
- 1
- DisplayPort ports
- 1
- Independent displays
- 3
- DC input minimum (V)
- 12
- DC input maximum (V)
- 24
- Operating minimum (°C)
- -20
- Operating maximum (°C)
- 60
- Operating temperature conditions
- Fanless, CPU configured at 15W, wide-temperature SSD
- Storage minimum (°C)
- -40
- Storage maximum (°C)
- 85
- Width (mm)
- 177
- Length (mm)
- 126
- Height (mm)
- 57
- OS support
- Windows 11 / Linux
- TPM
- 2.0 onboard
- Mounting
- Wall / VESA / DIN rail
- Fanless
- Yes, at stated thermal conditions
- Adapter power (W)
- 120
- Configuration notes
- Fanless operating range requires a 15W CPU configuration and a wide-temperature SSD.
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Pre-release platform. Confirm the final configuration and production timing with Edge.
