Beacon EmbeddedWorks DM3730 / AM3703 SoM-LV
System-on-module based on Texas Instruments DM3730 or AM3703 Applications Processor running up to 1 GHz. The SOM supports the following Texas Instruments processors: DaVinci DM3730 Sitara AM3703; IVA2.2 Subsystem TMS320C64x+™ DSP core running up to 800 MHz and supporting multiple codecs (DM3730 only); POWER SGX™ Graphics Accelerator (DM3730 only). Review carrier-board, memory and interface requirements with us.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
DM3730 / AM3703 SoM-LV platform details
- Platform
- System-on-module
- Processor / supported family
- Texas Instruments DM3730 or AM3703 Applications Processor running up to 1 GHz. The SOM supports the following Texas Instruments processors: DaVinci DM3730 Sitara AM3703; IVA2.2 Subsystem TMS320C64x+™ DSP core running up to 800 MHz and supporting multiple codecs (DM3730 only); POWER SGX™ Graphics Accelerator (DM3730 only)
- Ethernet specification
- 10/100 Base-T Ethernet controller (application/debug); 802.11b/g/n wireless Ethernet; Bluetooth 2.1 + EDR
- Software and Tools
- LogicLoader™ (bootloader/monitor); Wattson™ power measurement application; Android Board Support Package (BSP); Linux BSP; Windows Embedded CE BSP
- Memory options
- NOR flash memory (16 MB standard); Mobile DDR SDRAM / NAND flash memory (PoP technology) 256 MB / 512 MB
- USB
- Three USB 2.0 high-speed host interface; One USB 2.0 high-speed On-the-Go device interface
- Serial I/O
- Three external UARTs
- Display
- Programmable color LCD controller supports up to 24 bpp TFT interface; Hardware supports XGA 1024×768 at 24-bit color; Integrated 4-wire touch screen controller; 8 x 8 keypad signals

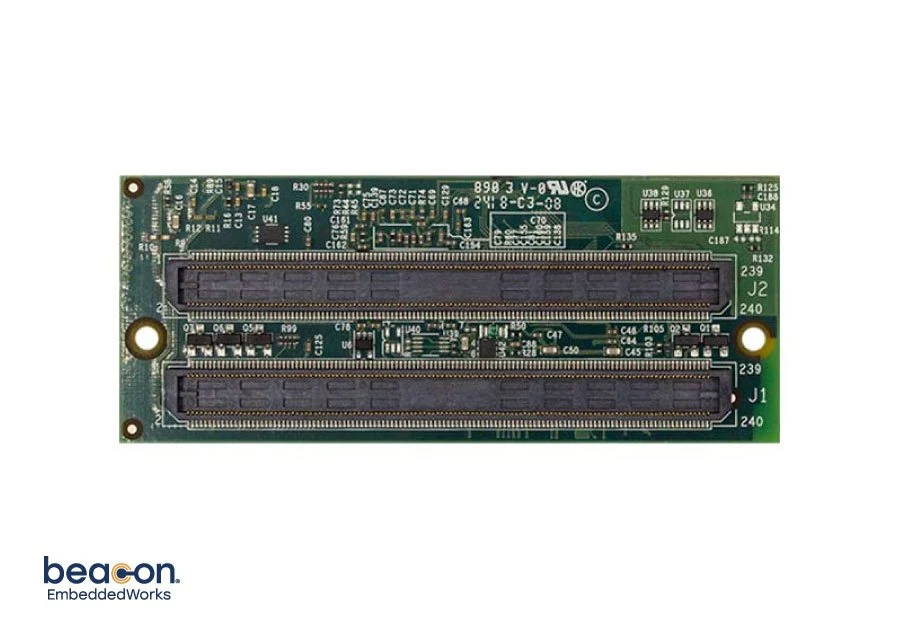

Product photographs
Technical specifications
DM3730 / AM3703 SoM-LV common specifications
- Audio
- I2S compliant audio codec (TI TWL4030 - 16-bit stereo DAC, 13-bit ADC)
- PC Card Expansion
- CompactFlash ® Type 1 card (memory-mode only); MMC/SD card support
- Mechanical Specifications
- SOM-LV Type III form factor (31 x 76.2 x 7.4 mm); Commercial temperature (0°C to +70°C); Extended temperature (-20°C to +70°C); Industrial temperature (-40°C to +85°C)
- Additional Features
- GPIO Programmable I/O depending on peripheral requirements General purpose memory controller (GPMC) interface; Debug; JTAG and ETM support
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
