System-on-module
Beacon EmbeddedWorks Inflexion™ Zynq 7020 SoM-LV
System-on-module based on Xilinx Zynq™ Z-7020 All Programmable SoC featuring dual-core ARM® Cortex™-A9 processing system running up to 766 MHz with Artix™-7 FPGA programmable logic fabric. Review carrier-board, memory and interface requirements with us.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Inflexion™ Zynq 7020 SoM-LV platform details
- Platform
- System-on-module
- Processor / supported family
- Xilinx Zynq™ Z-7020 All Programmable SoC featuring dual-core ARM® Cortex™-A9 processing system running up to 766 MHz with Artix™-7 FPGA programmable logic fabric
- Software and Tools
- Windows Embedded Compact 7 Board Support Package (BSP); Beacon EmbeddedWorks’ Design Services team can provide proposal for those wanting to target other BSPs
- Memory options
- 32-bit wide LPDDR2-800 (512 MB); QPSI Flash (32MB)
- Network connectivity
- 10/100/1000M triple-speed Gigabit Ethernet controller; IEEE 802.3 Ethernet; IEEE 1588v2 and IEEE 802.3az support; Synchronous Ethernet (SyncE) with PTP support
- USB
- Two USB 2.0 high-speed On-the-Go/Host/Device interfaces
- Serial I/O
- Two UARTs; Two I2Cs; One SPI
- Display
- Programmable color LCD controller supports 18-bit TFT display (optional); Migration path to support LVDS display interface; Integrated 4-wire touchscreen controller (optional)

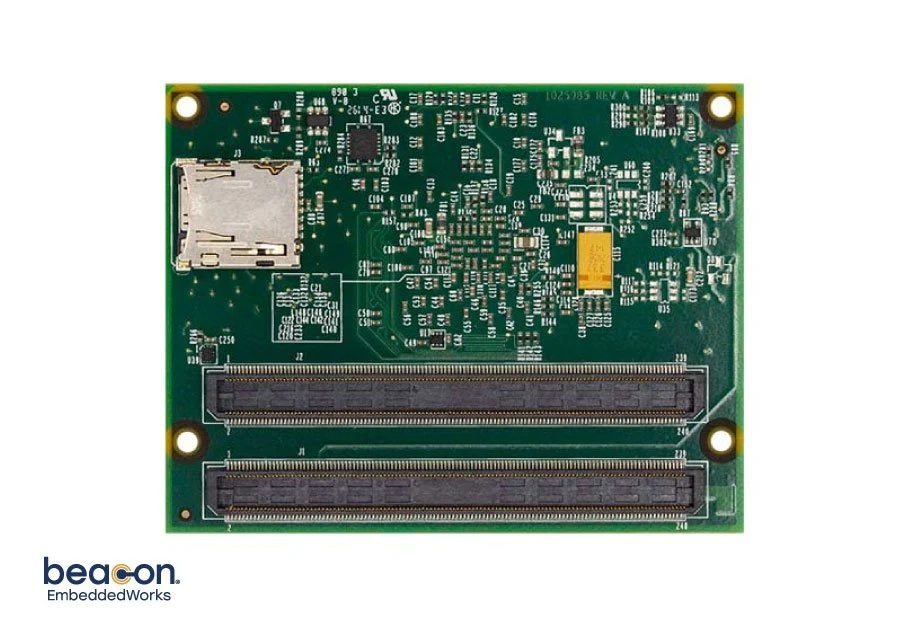

Product photographs
Technical specifications
Inflexion™ Zynq 7020 SoM-LV common specifications
- Audio
- I2S compliant audio codec; Stereo headphone output, stereo line out, and stereo microphone input
- Removable Storage
- MicroSD card support on SOM; SDIO host interface support
- Mechanical Specifications
- Compact SOM-LV Type 1 form factor (59.1 x 76.2 x 7.9 mm); Industrial temperature (-40°C to +85°C)
- Additional Features
- GPIO Programmable I/O Two banks with independently adjustable VCCIO Up to 140 single-ended PL I/O Up to 34 LVDS pairs 3 differential clock inputs from host I2C 8-port GPIO and interrupt expander for PS; XADC Dedicated differential ADC lines Additional auxiliary differential ADC lines On-SOM +1.25V reference with +/- 0.2% accuracy (optional) On-chip thermal and voltage supply monitors; Debug JTAG support TPIU support for ARM trace buffer access up to 32-bits wide, 250 MHz Simultaneous access to Xilinx TAP controller and ARM DAP controller; RoHS compliant
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
