System-on-module

Beacon EmbeddedWorks OMAP35x Torpedo™ SoM

System-on-module based on Texas Instruments OMAP35x Applications Processor running up to 600 MHz*. The SOM supports the following Texas Instruments processors: OMAP3503 OMAP3530; IVA2.2 Subsystem TMS320C64x™ DSP core running up to 430 MHz and supporting multiple codecs (only supported on OMAP3530 processor). Review carrier-board, memory and interface requirements with us.

Request a quote Plan a system around this model →

OMAP35x Torpedo™ SoM datasheet

Contact Edge to confirm the exact ordering number and configuration for your application.

At a glance

OMAP35x Torpedo™ SoM platform details

Platform: System-on-module
Processor / supported family: Texas Instruments OMAP35x Applications Processor running up to 600 MHz*. The SOM supports the following Texas Instruments processors: OMAP3503 OMAP3530; IVA2.2 Subsystem TMS320C64x™ DSP core running up to 430 MHz and supporting multiple codecs (only supported on OMAP3530 processor).
Software and Tools: LogicLoader™ (bootloader/monitor); Open source Linux BSP; Windows Embedded CE 6.0 BSP
Memory options: Mobile DDR SDRAM / NAND flash memory (PoP technology) 128 MB / 256 MB (kit SOM) 256 MB / 512 MB (standard SOM); Boots from NAND flash or external SD card
USB: USB high-speed On-the-Go interface
Serial I/O: Three UARTs; Two McBSPs; Three SPI, two I2C
Display: Built-in LCD controller supports up to 24 bpp TFT interface; Built-in driver supports XGA 1024×768 at 24-bit color
Audio: I2S compliant audio codec (TI TPS65950 - 16-bit stereo DAC, 13-bit ADC)

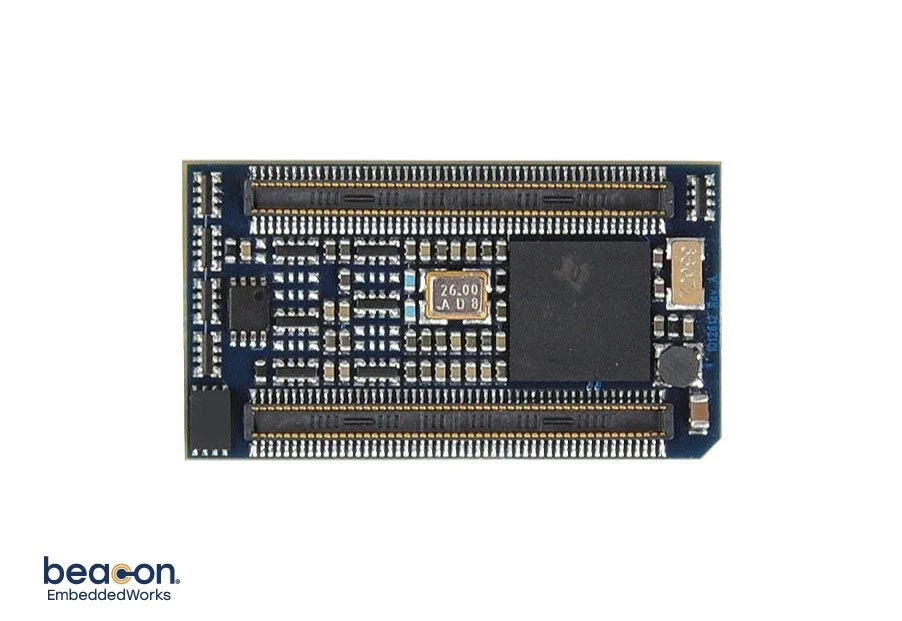

Product photographs

Technical specifications

OMAP35x Torpedo™ SoM common specifications

PC Card Expansion: Multiple MMC/SD card support
Mechanical Specifications: Ultra-compact Torpedo SOM form factor (15 x 27 x 3.8 mm); Commercial temperature in kit (0°C to +70°C); Industrial temperature (-40°C to +85°C)

Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.

Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.

Configuration and availability

Contact Edge to confirm the exact ordering number and configuration for your application.

Documents

PDF

OMAP35x Torpedo™ SoM datasheet

Manufacturer specifications and ordering information. Match the configuration to the selected part number.
