Medical panel PC
Onyx MATE2-2215
22" Fanless Intel® Core™ Processors Powerful Medical All in One PC.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
MATE2-2215 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 22
- Resolution
- 1920 × 1080(FHD)
- Touch technology
- Capacitive Multi-Touch Screen with AG coating
- Panel luminance (cd/m²)
- 250nits
- Processor / supported family
- Intel Core 7 251TE / Core 5 221TE / Core 3 201TE
- Ethernet specification
- 1.5kv isolated Gigabit LAN x2
- Display outputs
- HDMI 2.0 x 2

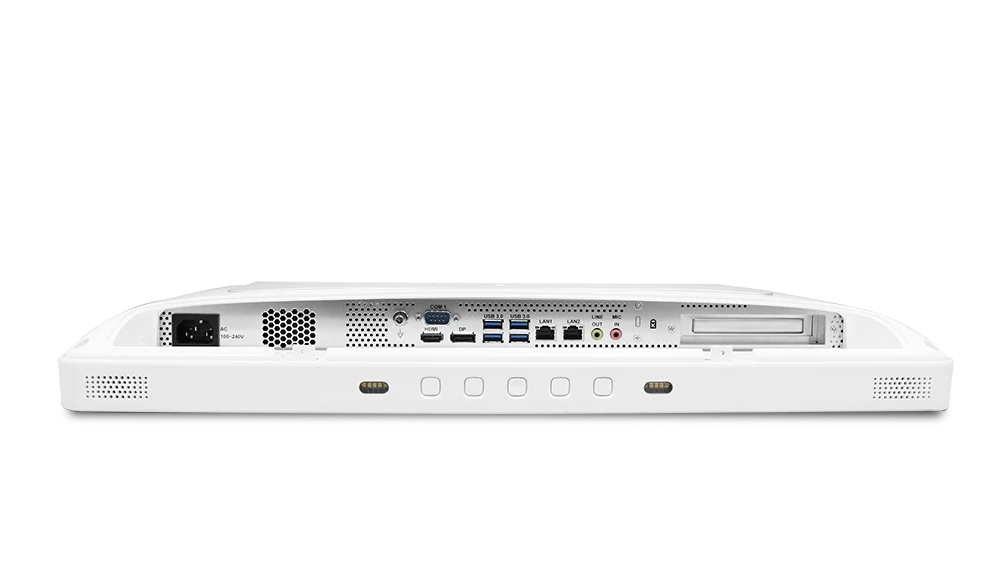

Product photographs
Technical specifications
MATE2-2215 common specifications
- OS support
- Windows® 10; Windows® 11; Linux®
- Memory options
- Dual-channel DDR5 5600 SO-DIMM, up to 64 GB
- Security
- Trusted Platform Module 2.0; Imprivata RFID reader (optional)
- Storage
- 2.5" SATA Hard Disk Drive/SSD x 1 (optional); M.2 2280 SATA SSD x 1
- Wireless Communication
- Bluetooth 5 (optional); 802.11 ax (optional); 802.11 ac/a/b/g/n(optional)
- Speaker
- 2W x2
- Function Key
- Touch Screen On/Off; LCD Brightness Up/Down; Reading Light On/Off
- Expansion Interface
- PCI Express[x4]/[x1] x1 (optional)
- Contrast Ratio
- 1000:1
- View Angle
- 178˚(H)/178˚(V)
- Serial Port
- RS-232 x 2
- Audio
- Line-out; Mic-in
- Power Supply
- DC-in; AC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Dimension (WxDxH)
- 542 x 355 x 67mm
- Net Weight
- 7.5 kg(16.5 lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
