Medical panel PC
Onyx MATE2-2415
24" Fanless Intel® Core™ Processors Powerful Medical All in One PC.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
MATE2-2415 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 24
- Resolution
- 1920 × 1080(FHD)
- Touch technology
- Capacitive Multi-Touch Screen with AG coating
- Panel luminance (cd/m²)
- 250nits
- Processor / supported family
- Intel Core 7 251TE / Core 5 221TE / Core 3 201TE
- Ethernet specification
- 1.5kv isolated Gigabit LAN x2
- Display outputs
- HDMI 2.0 x 2

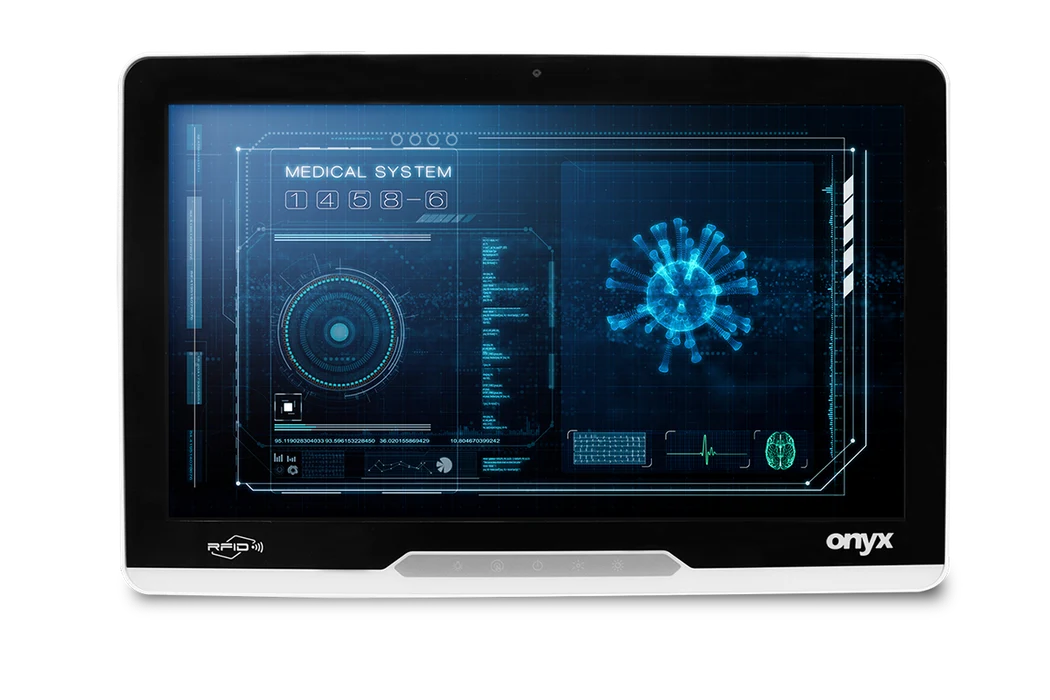

Product photographs
Technical specifications
MATE2-2415 common specifications
- OS support
- Windows® 10; Windows® 11; Linux®
- Memory options
- Dual-channel DDR5 5600 SO-DIMM, up to 64 GB
- Security
- Trusted Platform Module 2.0; Imprivata RFID reader (optional)
- Storage
- M.2 2280 SATA SSD x 1; 2.5" SATA HDD/SSD x 1 (optional)
- Wireless Communication
- Bluetooth 5 (optional); 802.11 ax (optional); 802.11 ac/a/b/g/n(optional)
- Speaker
- 2W x2
- Function Key
- Reading Light On/Off; Touch Screen On/Off; LCD Brightness Up/Down
- Expansion Interface
- PCI Express[x4]/[x1] x1 (optional)
- Contrast Ratio
- 3000:1
- View Angle
- 178˚(H)/178˚(V)
- Serial Port
- RS-232 x 2
- Audio
- Line-out; Mic-in
- Power Supply
- DC-in; AC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Dimension (WxDxH)
- 586 x 381 x 67 mm
- Net Weight
- 8.7 kg(19.2 lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
