Medical box PC
Onyx MEDPC-3300
Ultra Slim Medical PC with Intel® Alder Lake-N.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
MEDPC-3300 platform details
- Platform
- Medical box PC
- Processor / supported family
- Intel Alder Lake-N series i3-N305 / N97
- Ethernet specification
- 2.5G Gigabit LAN x 2
- Display outputs
- HDMI 2.0b x2
- OS support
- Windows® 11; IGEL; Ubuntu 24.04 LTS
- Memory options
- DDR5 up to 32 GB
- Security
- Trusted Platform Module 2.0
- Graphics
- Intel® UHD Graphic

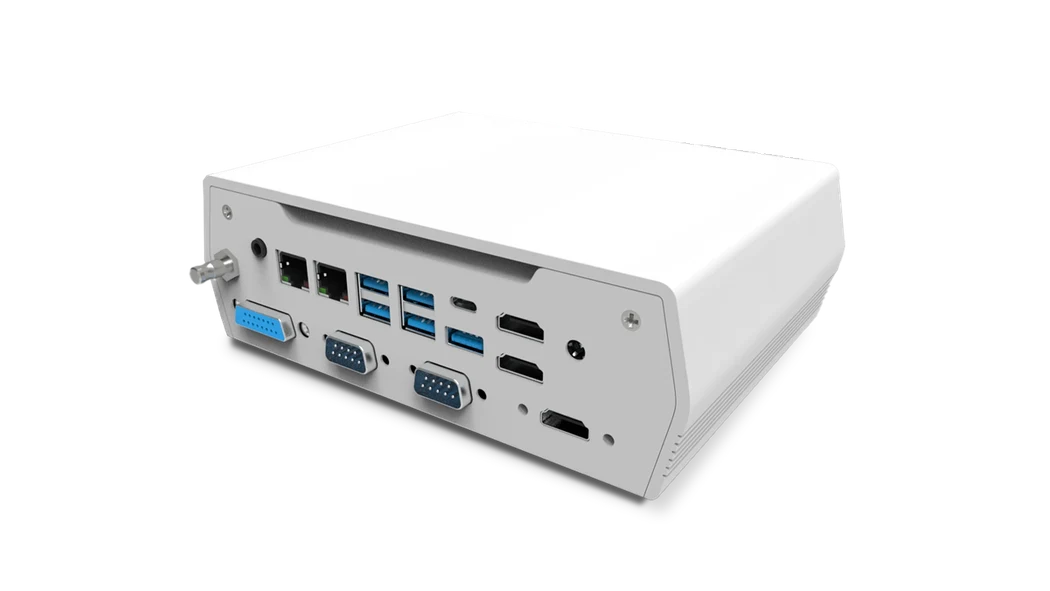

Product photographs
Technical specifications
MEDPC-3300 common specifications
- Storage
- M.2 SSD up to 1TB
- Wireless Communication
- WiFi 6E + Bluetooth 5.3 (optional)
- Speaker
- 3Wx2
- Function Key
- Power On/off
- Serial Port
- COM Port x2
- Audio
- Mic-in
- Power Supply
- DC-in
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Dimension (WxDxH)
- 180 x 133 x 60 mm
- Net Weight
- 1.2kg (2.6lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
