Medical box PC
Onyx MEDPC-9210
High Performance Medical Grade PC with Intel ® 13th Generation Core™ iSeries.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
MEDPC-9210 platform details
- Platform
- Medical box PC
- Processor / supported family
- Intel 13th generation Core i9/i7/i5/i3
- Ethernet specification
- Gigabit LAN x2
- Display outputs
- Display Port x 2; HDMI 2.0b x1
- OS support
- Windows® 11; Linux®
- Memory options
- 2 x DDR4 3200 SO-DIMM, up to 64 GB
- Security
- Trusted Platform Module 2.0
- Storage
- M.2 SSD up to 2TB

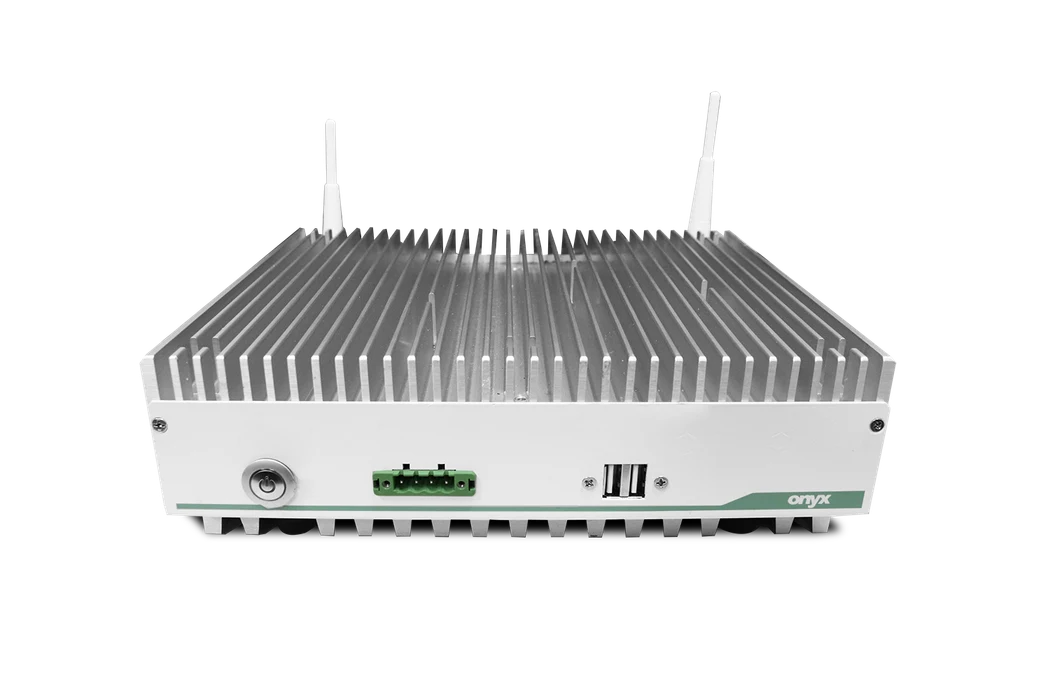

Product photographs
Technical specifications
MEDPC-9210 common specifications
- Wireless Communication
- WiFi 6E + Bluetooth 5.3 (optional)
- Speaker
- 3Wx2
- Function Key
- Power On/off
- USB
- USB 2.0; USB 3.0 (Type-A)
- Serial Port
- RS-232 x 2
- Audio
- Line-out; Mic-in
- Video input
- HDM 2.0
- Power Supply
- DC-in
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Dimension (WxDxH)
- 251 x 88 x 231 mm
- Net Weight
- 4.5 kg (9.9lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
