Medical panel PC
Onyx SMA-1733
17" Fanless Slim Medical All in One PC.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
SMA-1733 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 17
- Resolution
- 1280 × 1024 (XGA)
- Touch technology
- 5-Wire Resistive
- Panel luminance (cd/m²)
- 350nits
- Processor / supported family
- Intel® Celeron N6210; Intel® Atom x6211E; Intel® Atom x6425E
- Ethernet specification
- Gigabit LAN x2 (Isolated x1 + non-isolated x1)
- Display outputs
- HDMI 2.0b x1

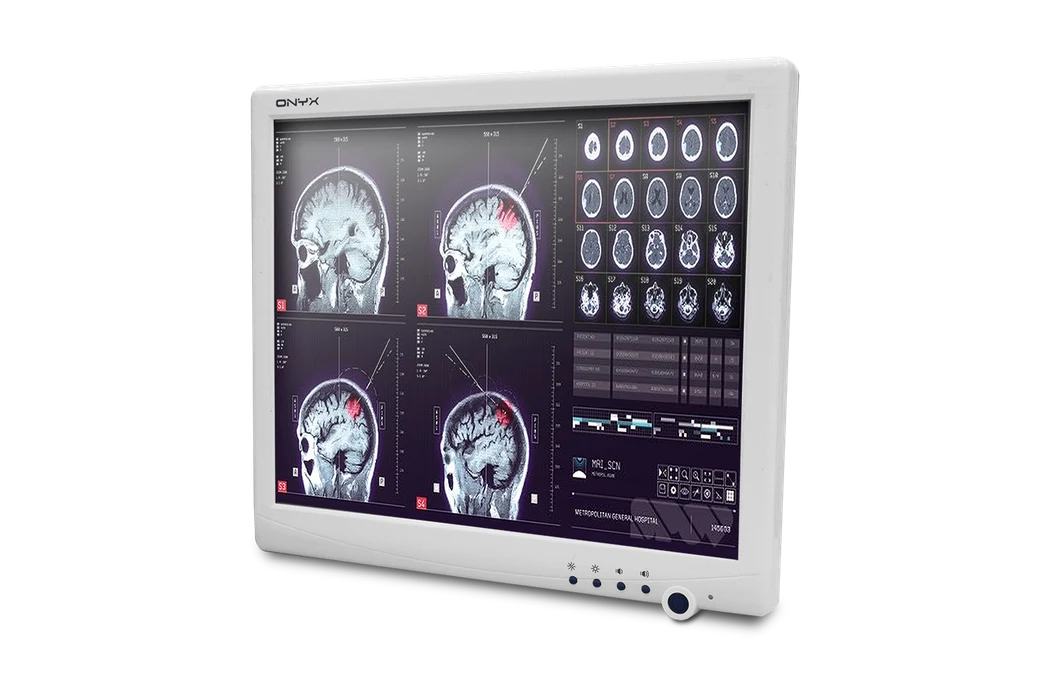

Product photographs
Technical specifications
SMA-1733 common specifications
- OS support
- Windows® 10; Windows® 11; Linux®
- Memory options
- DDR4 SO-DIMM up to 32 GB (In-Band ECC optional)
- Security
- Trusted Platform Module 2.0; RFID Reader(optional)
- Storage
- M.2 2242 (B-key) SATA SSD x 1
- Wireless Communication
- 802.11 a/b/g/n/ac/ax + BlueTooth 5.3 (Optional)
- Speaker
- 3Wx2
- Function Key
- LCD Brightness Up/Down; Speaker Volume Up/Down
- Contrast Ratio
- 1000:1
- View Angle
- 170˚(H)/160˚(V)
- Type
- TN
- USB
- USB 2.0
- Serial Port
- RS232 x 1
- Power Supply
- DC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 40°C(32°F ~ 104°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Dimension (WxDxH)
- 384 x 338 x 69 mm
- Net Weight
- 5.6kg (12.32lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
