Medical panel PC
Onyx Venus-123
11.6" Intel i7/i5/i3 Medical Panel PC with Dual Battery.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Venus-123 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 11.6
- Resolution
- 1366 × 768(WXGA)
- Touch technology
- Projective Capacitive touch screen (optional)
- Panel luminance (cd/m²)
- 250nits
- IP protection
- IPX1 in the back; IP65 in the front
- Processor / supported family
- Intel Skylake dual-core i5 / Celeron 3955U
- Ethernet specification
- Gigabit LAN x2

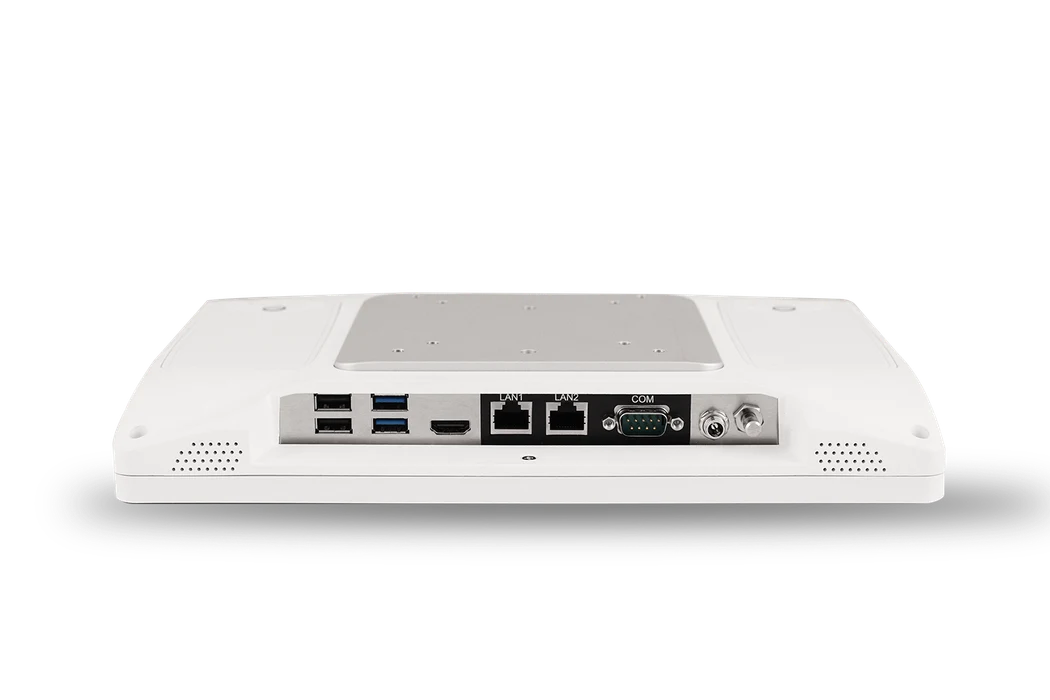

Product photographs
Technical specifications
Venus-123 common specifications
- Display outputs
- HDMI x 1
- OS support
- Windows® 7; Windows® 10; Windows® 11; Ubuntu 18.04 LTS; IGEL (thin client solution)
- Memory options
- DDR4 up to 16 GB
- Security
- Trusted Platform Module 2.0
- Storage
- M.2 SSD up to 512GB
- Wireless Communication
- 802.11 a/b/g/n/ac/ax (optional); BT 4.0 (optional)
- Speaker
- 2W x2
- Max. Colors
- 262K
- Contrast Ratio
- 500:1
- USB
- USB 2.0; USB 3.0 (Type-A)
- Serial Port
- COM Port x1
- Power Supply
- DC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Storage Humidity
- 10%~95%@40°C, non-condensing
- Dimension (WxDxH)
- 300 x 43 x 205 mm
- Net Weight
- 1.9 kg (4.1lb)
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
