Medical panel PC
Onyx Venus-224P
22" Dual Hot Swappable Battery Medical AI Cart Computer.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Venus-224P platform details
- Platform
- Medical panel PC
- Screen size (in)
- 21.5
- Resolution
- 1920 × 1080(FHD)
- Touch technology
- PCT /AG (optional)
- Panel luminance (cd/m²)
- 250nits
- Processor / supported family
- Intel® Arrow Lake Core™ Ultra 5 225U
- Ethernet specification
- 1.5kv isolated Gigabit LAN x2
- Display outputs
- HDMI 2.1 x1

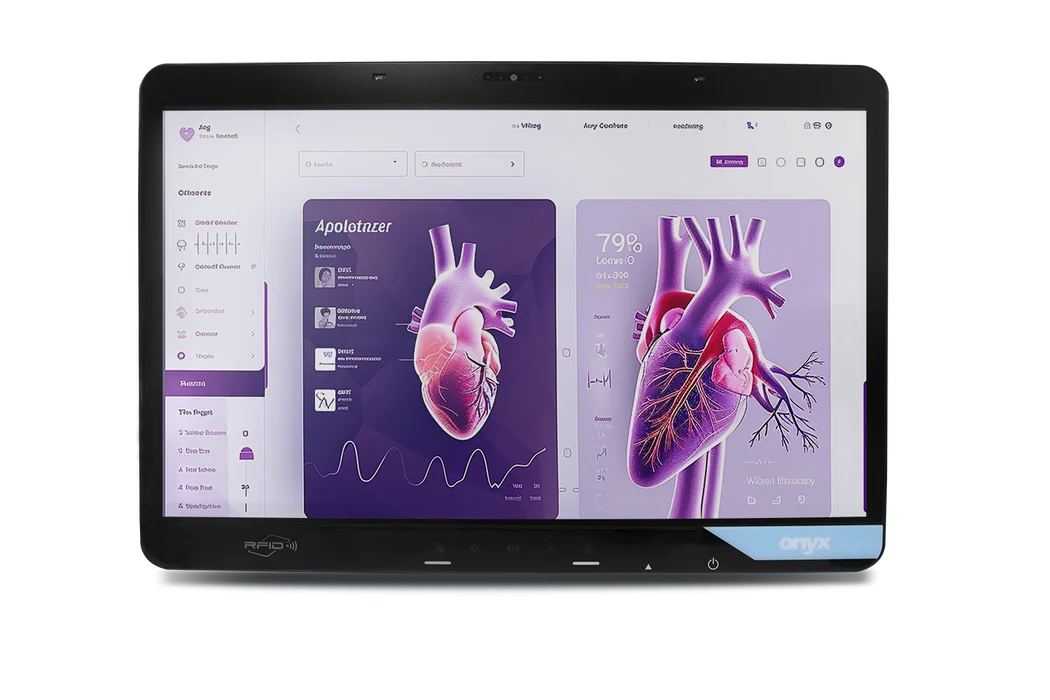

Product photographs
Technical specifications
Venus-224P common specifications
- OS support
- Windows® 11; Ubuntu 24.04 LTS; IGEL (thin client solution)
- Memory options
- DDR5 up to 48 GB
- Security
- Smart Card Reader (optional); Imprivata RFID reader (optional); Barcode reader (optional)
- Storage
- M.2 SSD up to 2TB
- Wireless Communication
- WiFi 6E + Bluetooth 5.3 (optional); Wifi 7 + Bluetooth 5.4 (optional)
- Speaker
- 3Wx2
- Max. Colors
- 16.7M
- Contrast Ratio
- 3000:1
- Serial Port
- COM Port x2
- Audio
- Combo Audio Port x1
- Power Supply
- DC-in
- VESA
- 75/100 mm
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Storage Humidity
- 10%~95%@40°C, non-condensing
- Dimension (WxDxH)
- 510 x 78.4 x 345.8 mm
- Net Weight
- 7kg
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
