Medical panel PC
Onyx Venus-244
24" Dual Hot Swappable Battery Medical Cart Computer.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Venus-244 platform details
- Platform
- Medical panel PC
- Screen size (in)
- 23.8
- Resolution
- FHD 1920 × 1080
- Touch technology
- PCT (optional)
- Panel luminance (cd/m²)
- 250
- Processor / supported family
- Intel 11th generation Core i7-1165G7 / Core i5-1135G7
- Ethernet specification
- 1.5kv isolated Gigabit LAN x2
- Display outputs
- HDMI 1.4 x1

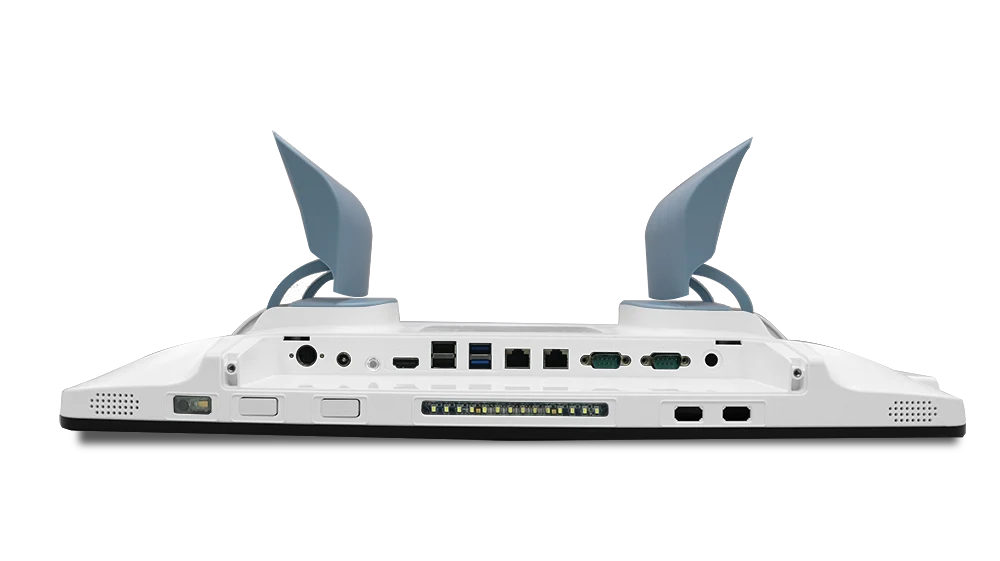

Product photographs
Technical specifications
Venus-244 common specifications
- Memory options
- DDR4 up to 64 GB
- OS support
- Microsoft® Windows 11 Microsoft® Windows 10 (64bit) Ubuntu 20.04 LTS IGEL (thin client solution)
- Storage
- m.2 SSD up to 1TB
- Wireless Communication
- 802.11 a/b/g/n/ac/ax (optional) WiFi 6E + Bluetooth 5.3 (optional)
- Speaker
- 3W x2
- Trusted Platform Module
- TPM 2.0
- Security
- Smart Card Reader (optional),Imprivata RFID reader (optional),Barcode reader (optional)
- Waterproof
- Front IP65 ; rear IPX1
- Battery
- Dual hot swappable batteries (optional)
- Max. Colors
- 16.7M
- Contrast Ratio
- 3000:1
- USB
- Rear I/O :USB 3.0 x2, USB 2.0 x2 Front button I/O : USB 3.0 x2
- COM
- COM port x2
- Audio
- Combo audio port x1
- DC-in
- 19V DC-in x1
- VESA
- 75/100 mm VESA mount
- Operating Temperature
- 0°C ~ 35°C(32°F ~ 95°F)
- Storage Temperature
- -20°C ~ 60°C(-4°F ~ 140°F)
- Storage Humidity
- 10%~95%@40°C, non-condensing
- Dimension
- 560(L) x 78.4(W) x373(H)
- Net Weight
- 7kg
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
