Micron 9550 NVMe SSD

The Micron 9550 NVMe SSD is the world's fastest data center SSD, designed specifically for AI and data center applications.

This series delivers superior performance, flexibility, and security, making it ideal for managing workloads such as AI, caching, and online transaction processing. With its impressive speed, scalability, and power efficiency, the Micron 9550 is built to handle to most demanding tasks.

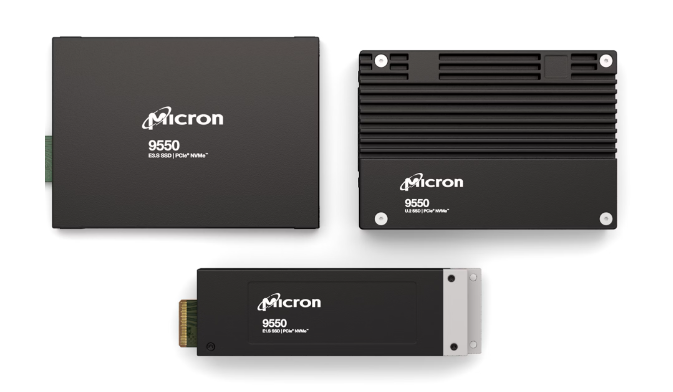

The Micron 9550 is available in both PRO and MAX models, the U.2, E3.S, and E1.S form factors, and offers storage capacities up to 30.72TB.

Be sure to look at the part numbers below to see the available specifications and reach out to us to speak with our Micron FAE or a sales expert for personal assistance selecting the best drive to meet your requirements.

Features & Benefits

• Produces greater speed and efficiency for large workloads
• Options are available for FIPS 140-3 Level 2 and TAA Compliance
• Fully integrated with Micron-designed controller ASIC, 232-layer NAND, DRAM, firmware, and validation

Micron 9550 NVMe SSD - PRO:

PART NUMBER	FORM FACTOR	CAPACITY	SECURITY FEATURES
MTFDLAL3T8THA-1BK1JABYY	U.2	3.84TB	NON-SED
MTFDLAL7T6THA-1BK1JABYY	U.2	7.68TB	NON-SED
MTFDLAL30T7THA-1BK1JABYY	U.2	30.72TB	NON-SED
MTFDLAL15T3THA-1BK1JABYY	U.2	15.36TB	NON-SED
MTFDLAL15T3THA-1BK1DFCYY	U.2	15.36TB	TCG OPAL
MTFDLAL3T8THA-1BK1DFCYY	U.2	3.84TB	TCG OPAL
MTFDLAL30T7THA-1BK1DFCYY	U.2	30.72TB	TCG OPAL
MTFDLAL15T3THA-1BK1DABYY	U.2	15.36TB	TCG OPAL
MTFDLAL7T6THA-1BK1DABYY	U.2	7.68TB	TCG OPAL
MTFDLAL3T8THA-1BK1DABYY	U.2	3.84TB	TCG OPAL
MTFDLAL30T7THA-1BK1DABYY	U.2	30.72TB	TCG OPAL
MTFDLAL7T6THA-1BK1DFCYY	U.2	7.68TB	TCG OPAL
MTFDLCE15T3THA-1BK1JABYY	E1.S	15.36TB	NON-SED
MTFDLCE7T6THA-1BK1JABYY	E1.S	7.68TB	NON-SED
MTFDLCE3T8THA-1BK1JABYY	E1.S	3.84TB	NON-SED
MTFDLCE15T3THA-1BK1DFCYY	E1.S	15.36TB	TCG OPAL
MTFDLCE3T8THA-1BK1DFCYY	E1.S	3.84TB	TCG OPAL
MTFDLCE7T6THA-1BK1DFCYY	E1.S	7.68TB	TCG OPAL
MTFDLCE7T6THA-1BK1DABYY	E1.S	7.68TB	TCG OPAL
MTFDLCE15T3THA-1BK1DABYY	E1.S	15.36TB	TCG OPAL
MTFDLCE3T8THA-1BK1DABYY	E1.S	3.84TB	TCG OPAL
MTFDLBQ7T6THA-1BK1JABYY	E3.S	7.68TB	NON-SED
MTFDLBQ30T7THA-1BK1JABYY	E3.S	30.72TB	NON-SED
MTFDLBQ3T8THA-1BK1JABYY	E3.S	3.84TB	NON-SED
MTFDLBQ15T3THA-1BK1JABYY	E3.S	15.36TB	NON-SED
MTFDLBQ15T3THA-1BK1DFCYY	E3.S	15.36TB	TCG OPAL
MTFDLBQ30T7THA-1BK1DFCYY	E3.S	30.72TB	TCG OPAL
MTFDLBQ3T8THA-1BK1DABYY	E3.S	3.84TB	TCG OPAL
MTFDLBQ7T6THA-1BK1DFCYY	E3.S	7.68TB	TCG OPAL
MTFDLBQ3T8THA-1BK1DFCYY	E3.S	3.84TB	TCG OPAL
MTFDLBQ7T6THA-1BK1DABYY	E3.S	7.68TB	TCG OPAL
MTFDLBQ30T7THA-1BK1DABYY	E3.S	30.72TB	TCG OPAL
MTFDLBQ15T3THA-1BK1DABYY	E3.S	15.36TB	TCG OPAL

Micron 9550 NVMe SSD - MAX:

PART NUMBER	FORM FACTOR	CAPACITY	SECURITY FEATURES
MTFDLAL3T2THB-1BK1JABYY	U.2	3.2TB	NON-SED
MTFDLAL6T4THB-1BK1JABYY	U.2	6.4TB	NON-SED
MTFDLAL25T6THB-1BK1JABYY	U.2	25.6TB	NON-SED
MTFDLAL12T8THB-1BK1JABYY	U.2	12.8TB	NON-SED
MTFDLAL3T2THB-1BK1DFCYY	U.2	3.2TB	TCG OPAL
MTFDLAL12T8THB-1BK1DABYY	U.2	12.8TB	TCG OPAL
MTFDLAL12T8THB-1BK1DFCYY	U.2	12.8TB	TCG OPAL
MTFDLAL25T6THB-1BK1DFCYY	U.2	25.6TB	TCG OPAL
MTFDLAL6T4THB-1BK1DFCYY	U.2	6.4TB	TCG OPAL
MTFDLAL3T2THB-1BK1DABYY	U.2	3.2TB	TCG OPAL
MTFDLAL25T6THB-1BK1DABYY	U.2	25.6TB	TCG OPAL
MTFDLAL6T4THB-1BK1DABYY	U.2	6.4TB	TCG OPAL
MTFDLBQ6T4THB-1BK1JABYY	E3.S	6.4TB	NON-SED
MTFDLBQ3T2THB-1BK1JABYY	E3.S	3.2TB	NON-SED
MTFDLBQ25T6THB-1BK1JABYY	E3.S	25.6TB	NON-SED
MTFDLBQ12T8THB-1BK1JABYY	E3.S	12.8TB	NON-SED
MTFDLBQ3T2THB-1BK1DFCYY	E3.S	3.2TB	TCG OPAL
MTFDLBQ12T8THB-1BK1DFCYY	ES.3	12.8TB	TCG OPAL
MTFDLBQ25T6THB-1BK1DFCYY	E3.S	25.6TB	TCG OPAL
MTFDLBQ6T4THB-1BK1DFCYY	E3.S	6.4TB	TCG OPAL
MTFDLBQ25T6THB-1BK1DABYY	E3.S	25.6TB	TCG OPAL
MTFDLBQ3T2THB-1BK1DABYY	E3.S	3.2TB	TCG OPAL
MTFDLBQ12T8THB-1BK1DABYY	E3.S	12.8TB	TCG OPAL
MTFDLBQ6T4THB-1BK1DABYY	E3.S	6.4TB	TCG OPAL

Not sure if the Micron 9550 is the right fit, or looking for a SATA SSD? Edge Electronics is an authorized distributor of storage solutions by Micron. Visit our Micron SSD Guide for an overview of all the currently available Micron SSD series.
