AAEON · BOXER-8645AI series
BOXER-8645AI-JP511E-A1-1110

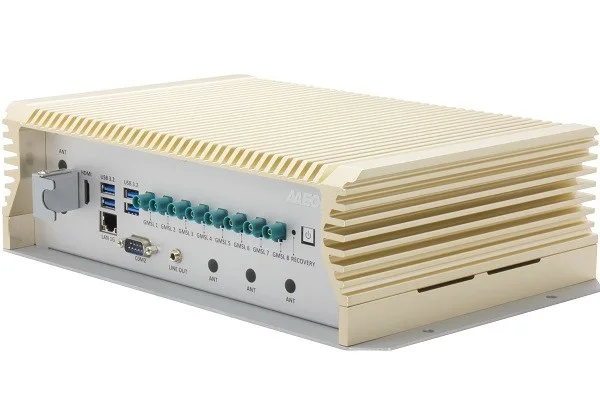

A Jetson AGX Orin system with eight GMSL2 camera connections, ignition control, and 10GbE networking for deployed vision applications.
- Processor
- NVIDIA Jetson AGX Orin 32GB, 8-core Arm Cortex-A78AE
- Onboard memory (GB)
- 32
Authorized AAEON distributor
Specifications
- Processor / supported family
- NVIDIA Jetson AGX Orin 32GB, 8-core Arm Cortex-A78AE
- Maximum memory (GB)
- 32
- Form factor / system type
- Edge AI box PC
- Data LAN ports
- 2
- Memory type
- Onboard LPDDR5
- Installed memory (GB)
- 32
- Ethernet specification
- 1 x 10GbE + 1 x 1GbE
- USB 3.x ports, excluding Type-C
- 4
- COM ports
- 2
- Serial interfaces
- RS-232/RS-485
- M.2 Key B
- 3052 LTE
- M.2 Key E
- 2230 Wi-Fi/Bluetooth
- HDMI ports
- 1
- Display outputs
- HDMI 2.0
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Operating minimum (°C)
- -25
- Operating maximum (°C)
- 65
- Operating temperature conditions
- 0.5 m/s airflow
- Width (mm)
- 286
- Length (mm)
- 202
- Height (mm)
- 90
- OS support
- Linux, NVIDIA JetPack 5.0 or later
- Mounting
- Wall mount
- Fanless
- Yes
- CAN bus
- 2 isolated CAN channels
- Vehicle power control
- Ignition delay on/off
- Processor family
- NVIDIA Jetson
- Configuration notes
- Eight GMSL2 FAKRA camera connectors. Additional Ethernet is available by request and is not included in the standard port count.
- AI accelerator
- NVIDIA Jetson AGX Orin
- Storage configuration
- 64GB eMMC 5.1; NVMe support; two 2.5-inch SATA positions
