- Processor
- NVIDIA Jetson AGX Orin 32GB, 8-core Arm Cortex-A78AE
- Onboard memory (GB)
- 32
Edge AI box PC
AAEON BOXER-8645AI
A Jetson AGX Orin system with eight GMSL2 camera connections, ignition control, and 10GbE networking for deployed vision applications.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
BOXER-8645AI platform details shared by listed variants
- Platform
- Edge AI box PC
- AI accelerator
- NVIDIA Jetson AGX Orin
- Camera interfaces
- Eight GMSL2 FAKRA camera connectors
- Ethernet specification
- 1 x 10GbE + 1 x 1GbE
- Fanless
- Yes
- OS support
- Linux, NVIDIA JetPack 5.0 or later
- Memory type
- Onboard LPDDR5
- Display outputs
- HDMI 2.0
Choose your BOXER-8645AI configuration
2 ordering numbers. The confirmed differences are shown below.
- Processor
- NVIDIA Jetson AGX Orin 64GB, 12-core Arm Cortex-A78AE
- Onboard memory (GB)
- 64
Eight GMSL2 FAKRA camera connectors. Additional Ethernet is available by request and is not included in the standard port count.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

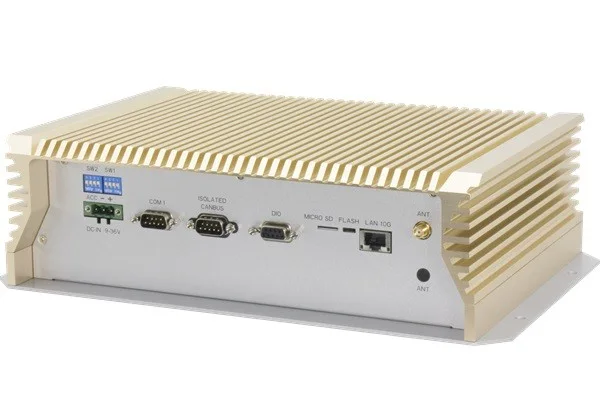

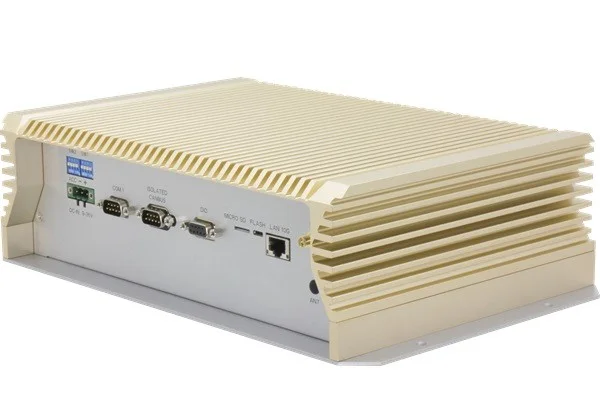

Product photographs
Technical specifications
BOXER-8645AI common specifications
- Processor family
- NVIDIA Jetson
- Data LAN ports
- 2
- USB 3.x ports, excluding Type-C
- 4
- COM ports
- 2
- Serial interfaces
- RS-232/RS-485
- M.2 Key B
- 3052 LTE
- M.2 Key E
- 2230 Wi-Fi/Bluetooth
- HDMI ports
- 1
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Operating minimum (°C)
- -25
- Operating maximum (°C)
- 65
- Operating temperature conditions
- 0.5 m/s airflow
- Width (mm)
- 286
- Length (mm)
- 202
- Height (mm)
- 90
- Mounting
- Wall mount
- CAN bus
- 2 isolated CAN channels
- Vehicle power control
- Ignition delay on/off
- Configuration notes
- Eight GMSL2 FAKRA camera connectors. Additional Ethernet is available by request and is not included in the standard port count.
- Storage configuration
- 64GB eMMC 5.1; NVMe support; two 2.5-inch SATA positions
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
