AAEON · COM-RAPC6 series

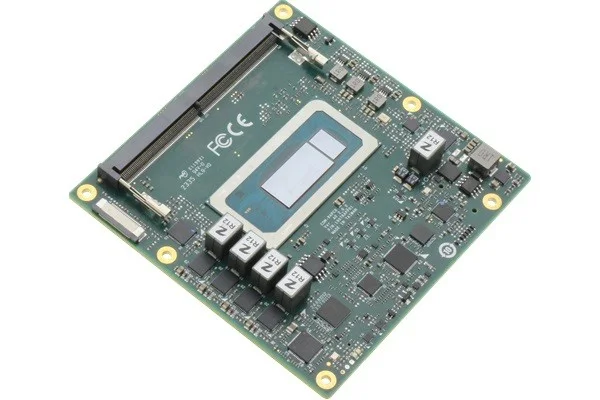

COM-RAPC6-A10-0001
A compact COM Express Type 6 module with Intel processing and DDR5 memory support for integration with a suitable carrier board.
- Processor
- Intel Core i7-13800HE
- Memory data rate (MT/s)
- Up to 5200
- Operating minimum (°C)
- 0
Authorized AAEON distributor
Specifications
- Processor / supported family
- Intel Core i7-13800HE
- Maximum memory (GB)
- 64
- Form factor / system type
- COM Express Type 6 Compact
- Data LAN ports
- 1
- Memory type
- DDR5 SO-DIMM
- Memory sockets
- 2
- Memory data rate (MT/s)
- Up to 5200
- Ethernet specification
- 2.5GbE Intel I226-IT interface through carrier
- USB configuration
- 4 USB 3.2 Gen2 and 8 USB 2.0 interfaces through carrier
- Serial interfaces
- 2 two-wire UART interfaces
- SATA connectors
- 2
- Display outputs
- VGA, three DDI, and dual-channel LVDS interfaces through carrier
- DC input minimum (V)
- 12
- DC input maximum (V)
- 12
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Width (mm)
- 95
- Length (mm)
- 95
- TPM
- 2.0
- Power input details
- +12V; ATX operation also requires +5V standby
- Processor family
- Intel Core
- Configuration notes
- Requires a compatible carrier board and thermal solution. Exposed connectors depend on the carrier implementation.
Ask us for current product status and availability.
Documents
WEBManufacturer product specificationsAAEON product page
→ PDFProduct datasheetAAEON PDF
↓ Request pricing and availabilityCOM-RAPC6-A10-0001
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
