- Processor
- Intel Core i7-13800HE
- Memory data rate (MT/s)
- Up to 5200
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
COM Express Type 6 Compact
AAEON COM-RAPC6
A compact COM Express Type 6 module with Intel processing and DDR5 memory support for integration with a suitable carrier board.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
COM-RAPC6 platform details shared by listed variants
- Platform
- COM Express Type 6 Compact
- Maximum memory (GB)
- 64
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2.5GbE Intel I226-IT interface through carrier
- Display outputs
- VGA, three DDI, and dual-channel LVDS interfaces through carrier
- Processor family
- Intel Core
- Data LAN ports
- 1
- Memory sockets
- 2
Choose your COM-RAPC6 configuration
4 ordering numbers. The confirmed differences are shown below.
- Processor
- Intel Core i3-1320PE
- Memory data rate (MT/s)
- Up to 5200
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Processor
- Intel Processor U300E
- Memory data rate (MT/s)
- Up to 4800
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Processor
- Intel Core i7-13800HRE
- Memory data rate (MT/s)
- Up to 5200
- Operating minimum (°C)
- -40
- Operating maximum (°C)
- 85
Requires a compatible carrier board and thermal solution. Exposed connectors depend on the carrier implementation.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

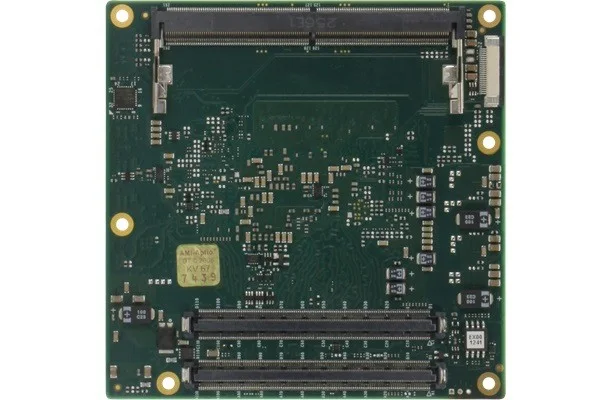

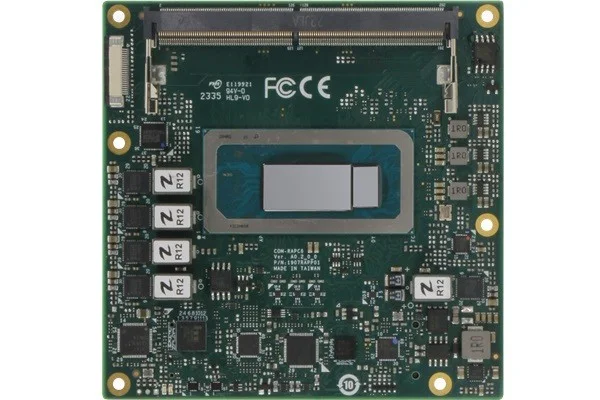

Product photographs
Technical specifications
COM-RAPC6 common specifications
- USB configuration
- 4 USB 3.2 Gen2 and 8 USB 2.0 interfaces through carrier
- Serial interfaces
- 2 two-wire UART interfaces
- SATA connectors
- 2
- DC input minimum (V)
- 12
- DC input maximum (V)
- 12
- Width (mm)
- 95
- Length (mm)
- 95
- TPM
- 2.0
- Power input details
- +12V; ATX operation also requires +5V standby
- Configuration notes
- Requires a compatible carrier board and thermal solution. Exposed connectors depend on the carrier implementation.
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
