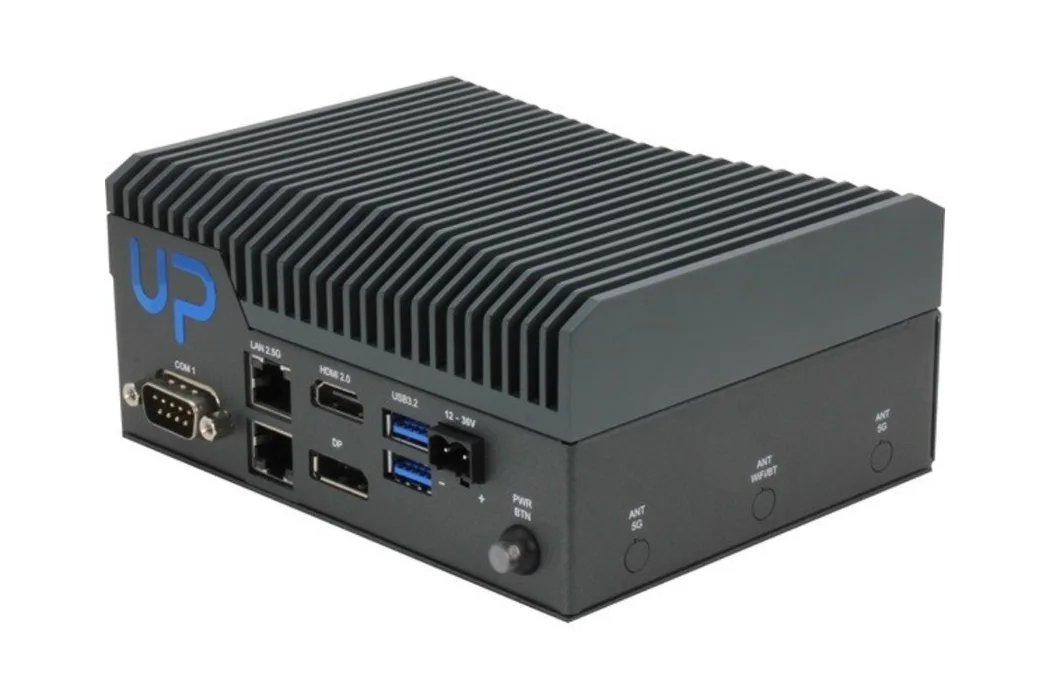

AAEON · UP Squared Pro 710H Edge series
UPN-EDGE-ASLHI3-A10-16128
A compact fanless system pairing Intel processing with an onboard Hailo-8 AI accelerator, dual 2.5GbE, and serial I/O.
- Processor
- Intel Core i3-N305
- Onboard memory (GB)
- 16
- Storage configuration
- 128GB onboard eMMC
Authorized AAEON distributor
Specifications
- Processor / supported family
- Intel Core i3-N305
- Maximum memory (GB)
- 16
- Form factor / system type
- Edge AI box PC
- Data LAN ports
- 2
- Memory type
- Onboard LPDDR5
- Installed memory (GB)
- 16
- Ethernet specification
- 2 x 2.5GbE Intel I226-IT
- USB 3.x ports, excluding Type-C
- 2
- COM ports
- 2
- Serial interfaces
- RS-232/422/485
- M.2 Key E
- 2230
- M.2 Key M
- 2280 PCIe Gen3 x2
- HDMI ports
- 1
- DisplayPort ports
- 1
- Display outputs
- HDMI 2.0b; DisplayPort 1.2
- DC input minimum (V)
- 12
- DC input maximum (V)
- 36
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Operating temperature conditions
- 0.5 m/s airflow
- Width (mm)
- 134
- Length (mm)
- 60
- Height (mm)
- 105
- OS support
- Windows 10 IoT Enterprise; Ubuntu 22.04 LTS
- TPM
- 2.0 onboard
- Mounting
- Optional VESA, wall, or DIN rail
- Fanless
- Yes
- Processor family
- Intel Processor N / Core N
- AI accelerator
- Hailo-8 onboard
- Storage configuration
- 128GB onboard eMMC
Ask us for current product status and availability.
Documents
WEBManufacturer product specificationsAAEON product page
→ PDFProduct datasheetAAEON PDF
↓ Request pricing and availabilityUPN-EDGE-ASLHI3-A10-16128
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
