- Processor
- Intel Core i3-N305
- Onboard memory (GB)
- 16
- Storage configuration
- 128GB onboard eMMC
Edge AI box PC
AAEON UP Squared Pro 710H Edge
A compact fanless system pairing Intel processing with an onboard Hailo-8 AI accelerator, dual 2.5GbE, and serial I/O.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
UP Squared Pro 710H Edge platform details shared by listed variants
- Platform
- Edge AI box PC
- AI accelerator
- Hailo-8 onboard
- Ethernet specification
- 2 x 2.5GbE Intel I226-IT
- Fanless
- Yes
- OS support
- Windows 10 IoT Enterprise; Ubuntu 22.04 LTS
- Memory type
- Onboard LPDDR5
- Display outputs
- HDMI 2.0b; DisplayPort 1.2
- Processor family
- Intel Processor N / Core N
Choose your UP Squared Pro 710H Edge configuration
2 ordering numbers. The confirmed differences are shown below.
- Processor
- Intel Processor N97
- Onboard memory (GB)
- 8
- Storage configuration
- 64GB onboard eMMC
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

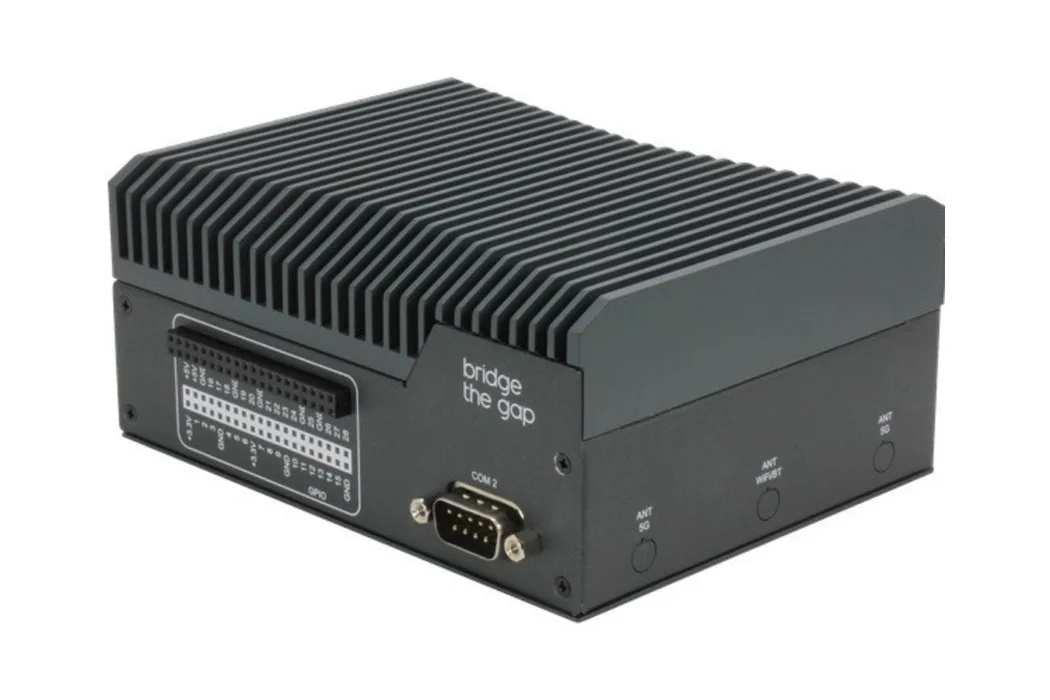

Product photographs
Technical specifications
UP Squared Pro 710H Edge common specifications
- Data LAN ports
- 2
- USB 3.x ports, excluding Type-C
- 2
- COM ports
- 2
- Serial interfaces
- RS-232/422/485
- M.2 Key E
- 2230
- M.2 Key M
- 2280 PCIe Gen3 x2
- HDMI ports
- 1
- DisplayPort ports
- 1
- DC input minimum (V)
- 12
- DC input maximum (V)
- 36
- Operating minimum (°C)
- 0
- Operating maximum (°C)
- 60
- Operating temperature conditions
- 0.5 m/s airflow
- Width (mm)
- 134
- Length (mm)
- 60
- Height (mm)
- 105
- TPM
- 2.0 onboard
- Mounting
- Optional VESA, wall, or DIN rail
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
