Avalue Technology · ECM-ASL3 series

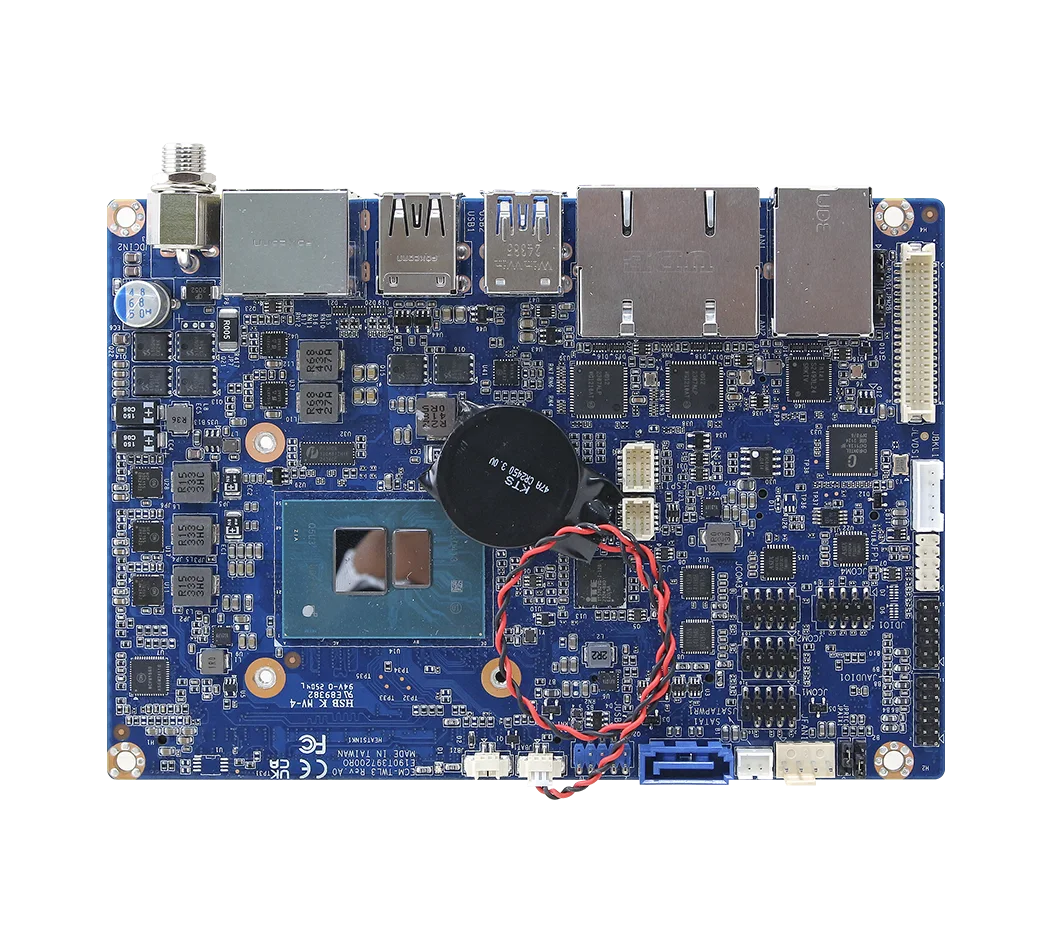

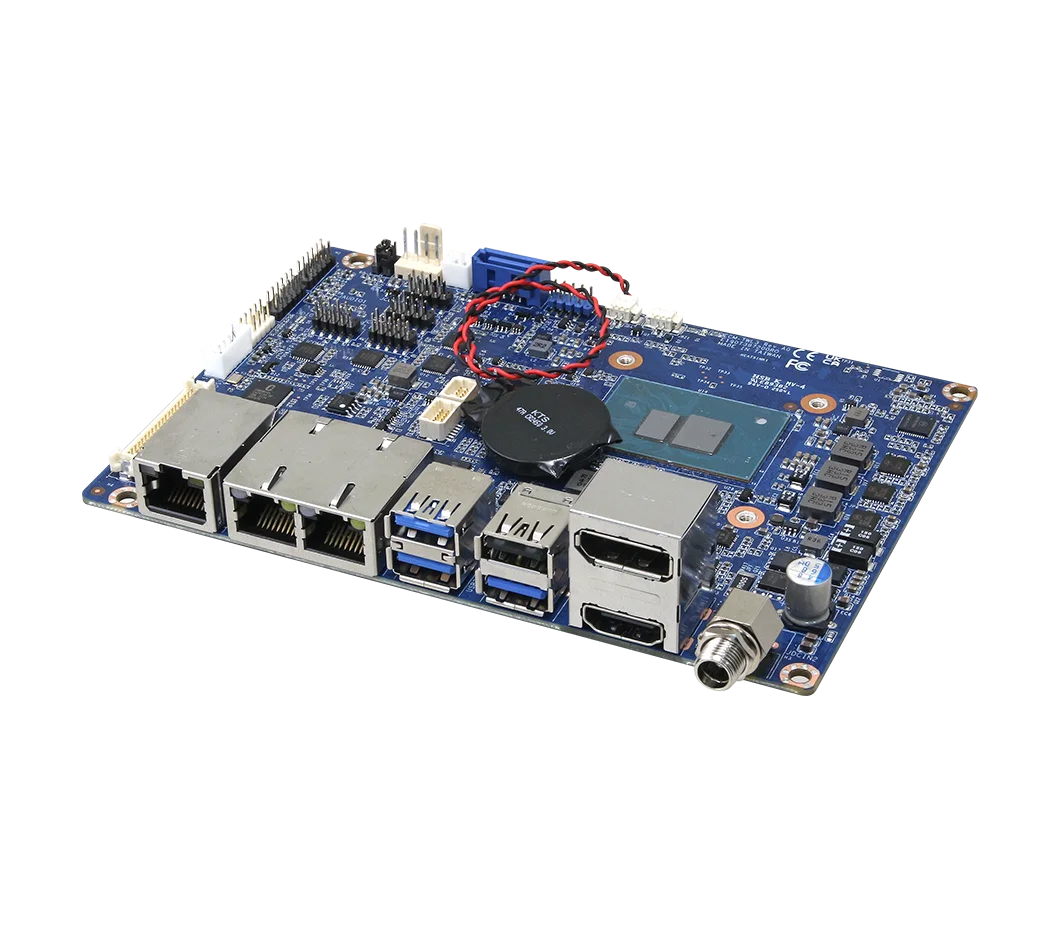

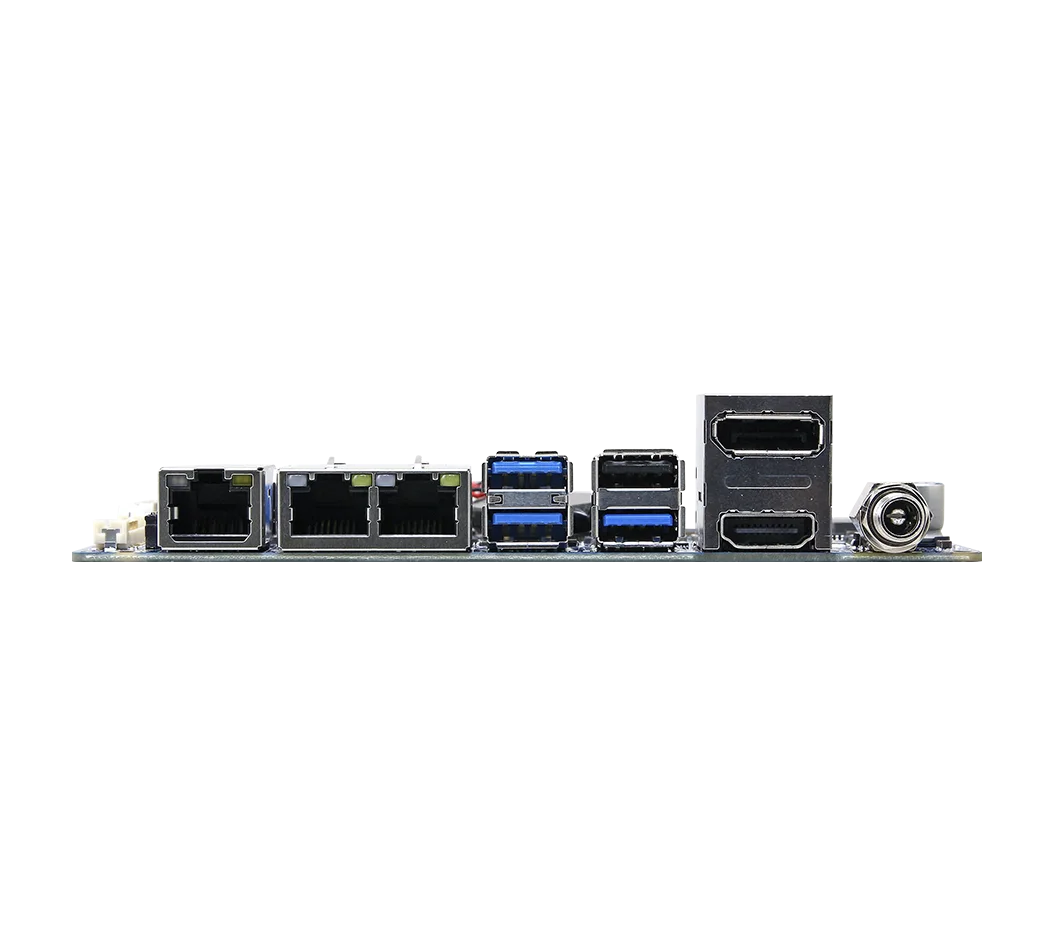

ECM-ASL3-7433-A1R
A compact board with three Ethernet ports and expansion for storage and wireless connectivity.
Authorized Avalue Technology distributor
Specifications
- Processor / supported family
- Intel N97 / Core i3-N305 / Atom x7000RE family
- Maximum memory (GB)
- 16
- Form factor / system type
- 3.5-inch SBC
- Data LAN ports
- 3
- Memory type
- DDR5 SO-DIMM
- Memory sockets
- 1
- Memory data rate (MT/s)
- 4800
- Ethernet specification
- 2 x 1GbE I210AT/IT + 1 x 2.5GbE I226V/IT
- USB 2.0 ports
- 3
- USB 3.x ports, excluding Type-C
- 3
- COM ports
- 4
- Serial interfaces
- 2 RS-232 + 2 RS-232/422/485
- GPIO bits
- 8
- M.2 Key B
- 3042/3052; USB or BOM-option PCIe; SIM
- M.2 Key E
- 2230; Wi-Fi; CNVi on Alder Lake only
- M.2 Key M
- 2280; PCIe Gen3 x1 / SATA
- SATA connectors
- 1
- HDMI ports
- 1
- DisplayPort ports
- 1
- Independent displays
- 3
- Display outputs
- HDMI 2.0b / DP: 4096x2160 at 60 Hz; LVDS or eDP
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Storage minimum (°C)
- -40
- Storage maximum (°C)
- 85
- Width (mm)
- 101
- Length (mm)
- 146
- Weight (kg)
- 0.2
- OS support
- Windows 11 / Linux
- TPM
- 2.0 onboard
- Processor family
- Intel Processor N / Core N / Atom
- Release status
- Active listing
- Configuration notes
- Processor options are listed at family level. Confirm the processor and temperature grade for the exact ordering number.
Ask us for current product status and availability.
Documents
WEBManufacturer product specificationsAvalue Technology product page
→ PDFProduct datasheetAvalue Technology PDF
↓ Request pricing and availabilityECM-ASL3-7433-A1R
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
