3.5-inch SBC
Avalue ECM-ASL3
A compact board with three Ethernet ports and expansion for storage and wireless connectivity.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
ECM-ASL3 platform details shared by listed variants
- Platform
- 3.5-inch SBC
- Processor / supported family
- Intel N97 / Core i3-N305 / Atom x7000RE family
- Maximum memory (GB)
- 16
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 2 x 1GbE I210AT/IT + 1 x 2.5GbE I226V/IT
- Display outputs
- HDMI 2.0b / DP: 4096x2160 at 60 Hz; LVDS or eDP
- Processor family
- Intel Processor N / Core N / Atom
- Data LAN ports
- 3
Choose your ECM-ASL3 configuration
4 ordering numbers. The published specifications do not distinguish these versions. Ask Edge to confirm the exact configuration.
Processor options are listed at family level. Confirm the processor and temperature grade for the exact ordering number.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

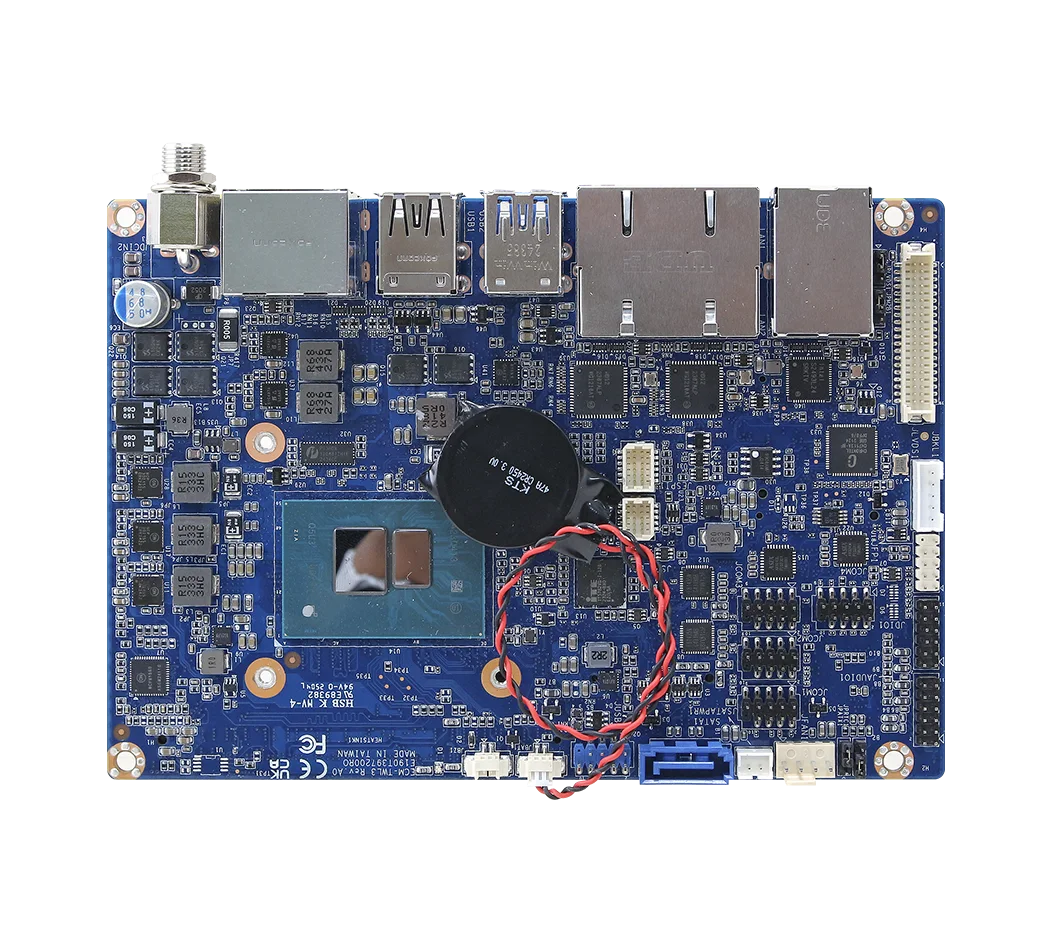

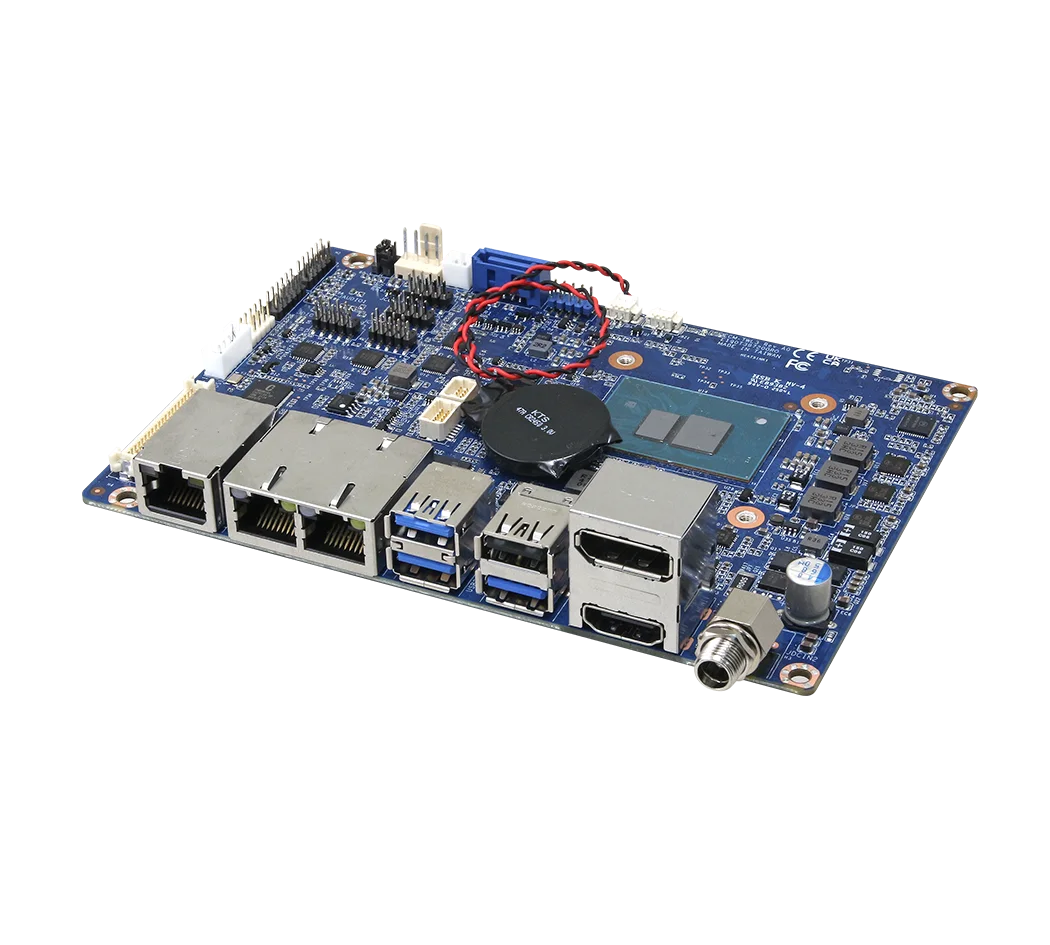

Product photographs
Technical specifications
ECM-ASL3 common specifications
- Memory sockets
- 1
- Memory data rate (MT/s)
- 4800
- USB 2.0 ports
- 3
- USB 3.x ports, excluding Type-C
- 3
- COM ports
- 4
- Serial interfaces
- 2 RS-232 + 2 RS-232/422/485
- GPIO bits
- 8
- M.2 Key B
- 3042/3052; USB or BOM-option PCIe; SIM
- M.2 Key E
- 2230; Wi-Fi; CNVi on Alder Lake only
- M.2 Key M
- 2280; PCIe Gen3 x1 / SATA
- SATA connectors
- 1
- HDMI ports
- 1
- DisplayPort ports
- 1
- Independent displays
- 3
- DC input minimum (V)
- 9
- DC input maximum (V)
- 36
- Storage minimum (°C)
- -40
- Storage maximum (°C)
- 85
- Width (mm)
- 101
- Length (mm)
- 146
- Weight (kg)
- 0.2
- OS support
- Windows 11 / Linux
- TPM
- 2.0 onboard
- Configuration notes
- Processor options are listed at family level. Confirm the processor and temperature grade for the exact ordering number.
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
