Tianma · LCD Panels

TM043NDH02-40

Diagonal
4.3 in
Resolution
480 × 272
Brightness
400 nits
Interface
RGB

TN panel rated for −20 to 70 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

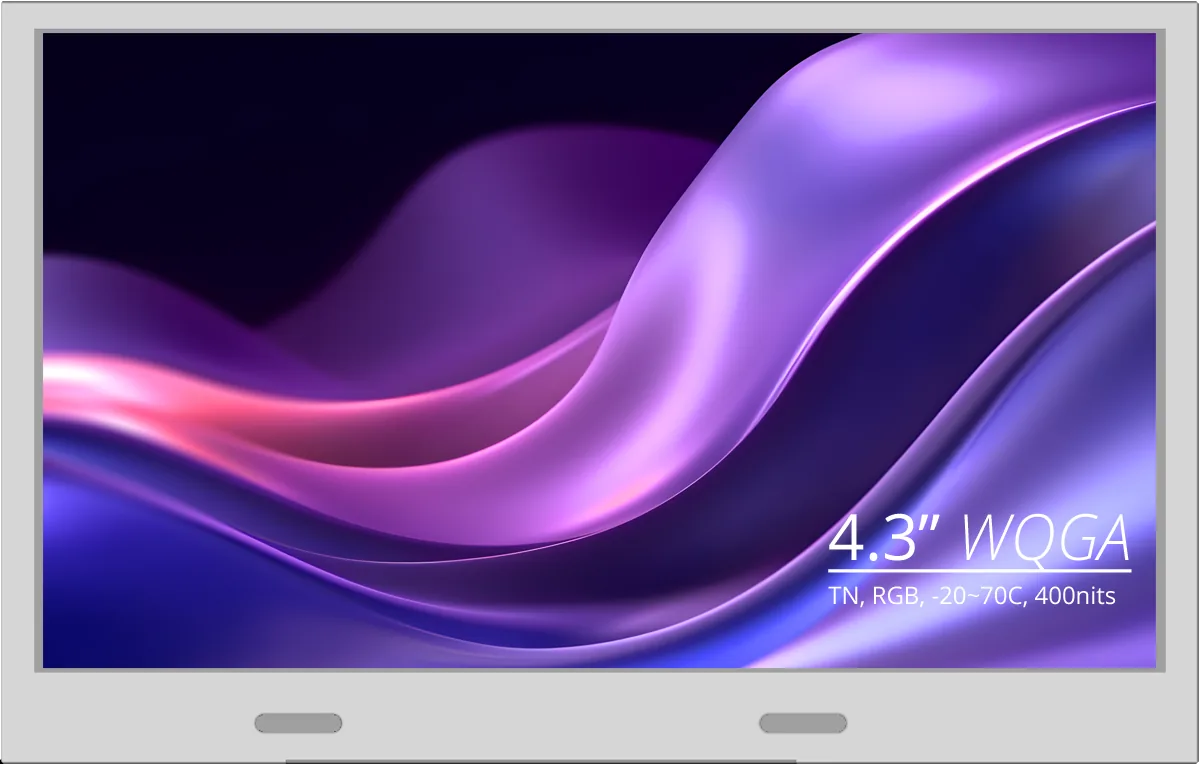

TM043NDH02-40 product photo

Specifications

Display & optics

Diagonal size
4.3 in
Resolution
480 × 272
Brightness
400 nits
Contrast ratio
800:1
Display mode
TN
Technology
a-Si
Viewing angle
75/55/75/75
Response time
20 ms
Aspect ratio
16:9

Integration & physical details

Interface
RGB
Touch
Not included
LED driver built in
No
Operating temperature
−20 to 70 °C
Outline dimensions
105.50 × 67.20 × 2.90 mm
Active area
95.04 × 53.86 mm
Description

4.3 WQVGA (480 X 272)

Documents

Request
Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityTM043NDH02-40

Please don’t include sensitive or confidential information in this form. Privacy notice

Loading form…

What information should I leave out?

Do not submit classified information, Controlled Unclassified Information (CUI), export-controlled technical data, payment-card information, Social Security numbers, health information, passwords, or other sensitive data through this form. Contact Edge to discuss an appropriate transfer method.

We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.

Send the quantity and your target date. We'll come back with pricing and availability.

Open the form

For documentation, pricing and availability: 800.647.3343.

Edge Electronics · Product summary
Tianma · TM043NDH02-40

https://www.edgeelectronics.com/p/tianma-tm043ndh02-40/

Confirm specifications for the required revision with Edge or the manufacturer. For documentation, pricing and availability: 800.647.3343.

Complete the display.

The parts that turn this panel into a working display. Which ones you need depends on your host system and application.

Plan your display

Send this panel and the layers you need in one request. Nothing is sent until you submit.

  1. Panel

    TM043NDH02-40 · 4.3 in · RGB

  2. Touch and cover glass

    Touch not included in this part number

    Touch sensing and cover options matched to the environment and the enclosure.

    Touch options

  3. Control and computing

    RGB interface

    Controller boards that convert system video outputs to the panel's interface.

    Find a controller for your LCD.

    Search Digital View’s Controller Solution Generator by panel model number.

    Enter a complete or partial model number.

    We can help confirm the controller version, panel cables, backlight driver, and configuration for your application. A connection result does not establish price or availability.

    Contact us →
     LCD controllers Single-board computers

  4. Backlight power

    External LED driver needed

    LED backlight driver boards matched to your display and dimming requirements.

    LED drivers

  5. Cables and harnesses

    Interface cabling built to the length and routing the enclosure needs.

    LCD cables

  6. Enhancements and integration

    Optical bonding, anti-glare, brightness, and extended temperature work. We can also arrange enclosures and other custom work case by case, with the manufacturer or our integration partners.

    Display enhancements LCD kits
