Tianma · LCD Panels

TM150TDSG71-72

Diagonal
15 in
Resolution
1024 × 768
Brightness
450 nits
Interface
LVDS

TN panel rated for −20 to 70 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

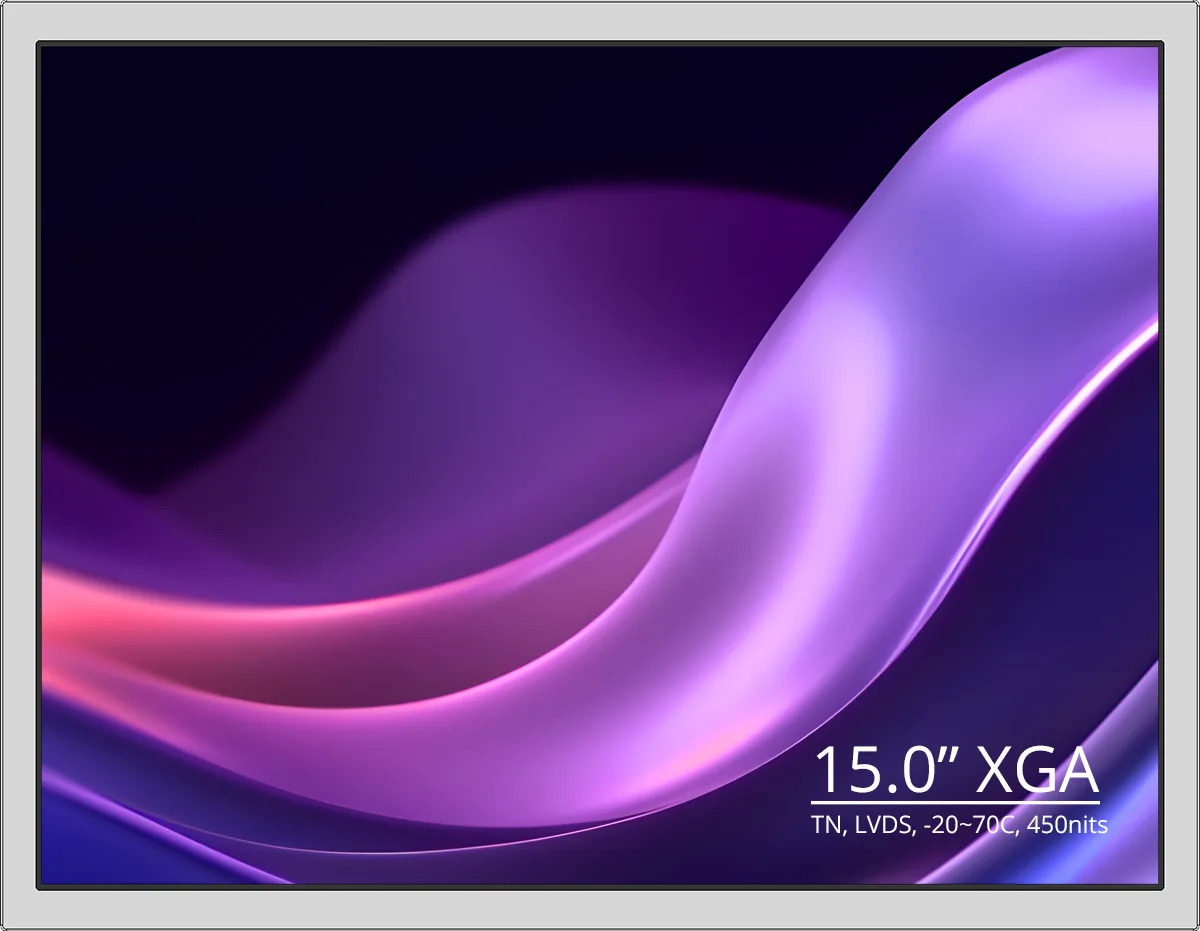

TM150TDSG71-72 product photo

Specifications

Display & optics

Diagonal size
15 in
Resolution
1024 × 768
Brightness
450 nits
Contrast ratio
800:1
Display mode
TN
Technology
a-Si
Viewing angle
80/80/80/80
Response time
8 ms
Aspect ratio
4:3

Integration & physical details

Interface
LVDS
LED driver built in
Yes
Operating temperature
−20 to 70 °C
Outline dimensions
326.5 × 253.5 × 11.8 mm
Active area
304.128 × 228.096 mm

Documents

Request
Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityTM150TDSG71-72

Please don’t include sensitive or confidential information in this form. Privacy notice

Loading form…

What information should I leave out?

Do not submit classified information, Controlled Unclassified Information (CUI), export-controlled technical data, payment-card information, Social Security numbers, health information, passwords, or other sensitive data through this form. Contact Edge to discuss an appropriate transfer method.

We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.

Send the quantity and your target date. We'll come back with pricing and availability.

Open the form

For documentation, pricing and availability: 800.647.3343.

Edge Electronics · Product summary
Tianma · TM150TDSG71-72

https://www.edgeelectronics.com/p/tianma-tm150tdsg71-72/

Confirm specifications for the required revision with Edge or the manufacturer. For documentation, pricing and availability: 800.647.3343.

Complete the display.

The parts that turn this panel into a working display. Which ones you need depends on your host system and application.
