Digital View in Control
Digital View shares controller selection resources, control methods, and its displays from SID Display Week 2026 in Los Angeles.
On this page
This month we did something different with our LCD newsletter: we handed it over. Digital View, the controller-board specialists who have been designing display electronics since 1995, wrote the whole issue. They have been a mainstay of the Edge line card for years, and as their authorized distribution partner we supply their full range of LCD, OLED, and E Ink controller boards.
4,000+ panels searchable in the rebuilt CSG
48 RS-232 commands on the ALC-4096
27th Display Week for Digital View
75″ color E Ink driven by the EPL-300
8K resolution on the new ALC-7680

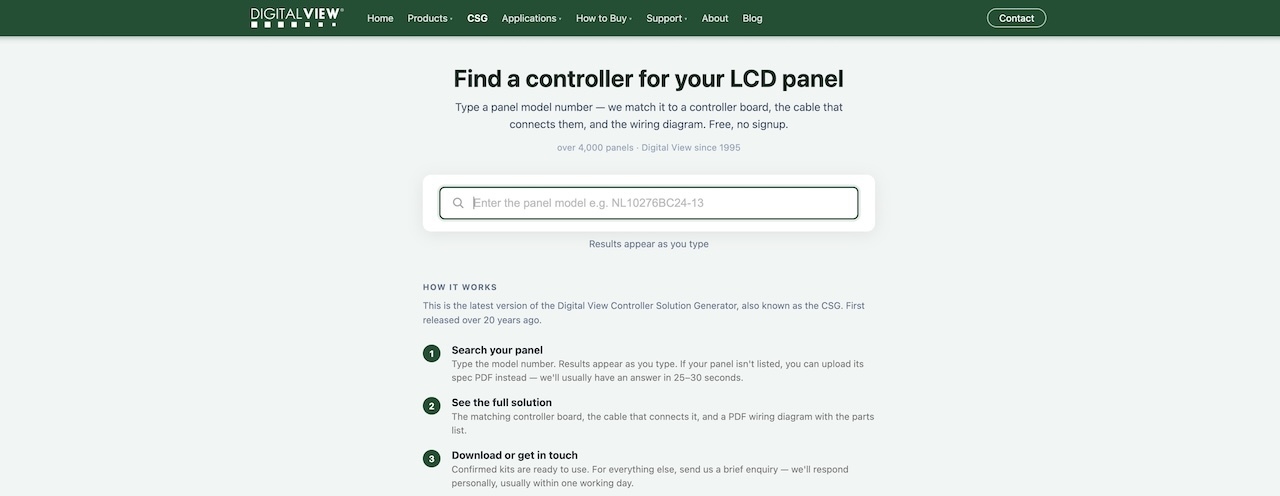

The Controller Solution Generator, rebuilt
The CSG has been quietly matching controller boards to panels for over 20 years. Digital View has now rebuilt it from the ground up. The new version searches a database of more than 4,000 display panels, and you can start from either direction: type in a panel model number, or upload the panel’s spec document and let the tool work from that.
The Controller Solution Generator lists controller, cable, and connection options to review for your application. We can help with product selection and questions for Digital View.
Try it yourself
Find Digital View controller options at Edge →
Open the panel lookup on our Digital View page to search by LCD model number.
Read the full CSG story on the Digital View blog →
Highlights from SID Display Week 2026
This was Digital View’s 27th Display Week, and their observations from the Los Angeles show floor is a useful one for anyone building real products. OLED, microLED, and flexible panels drew the crowds, but LCD remains the workhorse of industrial, medical, and commercial applications for the same reasons it always has: maturity, cost-effectiveness, and long-term availability.
On the Digital View stand: the new ALC-7680 8K controller, harsh-environment boards, the ALC-4096-AIH and AI-100 boards for AI processing at the display, and the AI-50 module that adds Ethernet and LLM-based control. Also on show was the new EPL-300 controller driving E Ink’s new 75-inch Kaleido color panel, a purpose-built board for the latest generation of large-format, low-power E Ink displays.
Read Digital View’s Display Week recap →
Ways to control the controller
Using the ALC-4096 as an example, Digital View explains the available control methods.
Local control: on-screen menus
Adjust brightness, contrast, and input selection through on-screen menus using a switch mount or IR remote. No external connections needed. Good for simple installs and bench setups.
DDC/CI: control over the video cable
Adjust brightness, contrast, volume, input source, and power directly through the video cable with no additional wiring. A natural fit for desktop workstations.
RS-232: the full command set
The most comprehensive option: access to all 48 documented functions, including configuration, EDID management, temperature monitoring, and diagnostics. The standard choice for industrial and medical devices.
USB-C serial: the same power, modern port
Modern systems can use the identical RS-232 command set over USB-C, which appears as a virtual serial port. No dedicated serial hardware required.
Ethernet: fleet control with the AI-50
The AI-50 interface extends the RS-232 command set over the network, enabling centralized monitoring and remote management of distributed displays.
Which should you pick?
Different projects have different requirements: DDC/CI for workstations, RS-232 for industrial and medical devices, Ethernet for distributed deployments. The full article includes a reference matrix showing which functions are available over each method.
AI at the edge: the intelligent display
Digital View’s newest direction is putting intelligence directly on the display. Their Display Edge initiative is about turning displays into intelligent endpoints that can perceive, interpret, and respond locally and in real time, with no round trip to the cloud. The first hardware, including the ALC-4096-AIH AI board, targets industrial, medical, retail, and public-environment applications where a display that understands its surroundings can do more than show pixels.
Discuss Digital View AI display options with Edge →
Ask us about the boards featured here
Edge Electronics is an authorized Digital View distributor. We help compare controller and panel options, arrange samples, and coordinate cable, power, and configuration questions with the manufacturers.
