- Processor
- Intel Processor N97
Desktop network appliance
AAEON FWS-2291
A desktop network appliance combining four 2.5GbE copper ports, two SFP ports, LAN bypass, and expansion for wireless connectivity.
Compare the listed ordering variants below. A part number does not indicate stock; Edge will confirm pricing, configuration, and timing.
At a glance
FWS-2291 platform details
- Platform
- Desktop network appliance
- Processor / supported family
- Intel Processor N97
- Maximum memory (GB)
- 16
- Memory type
- DDR5 SO-DIMM
- Ethernet specification
- 4 x 2.5GbE RJ-45 + 2 x 1GbE SFP; two bypass pairs
- Processor family
- Intel Processor N
- Data LAN ports
- 6
- Memory sockets
- 1
Choose your FWS-2291 configuration
One supplied ordering number. Confirm your requirements with Edge.
The listed N97 configuration supports up to 16GB RAM. The family maximum of 32GB applies to other CPU options. HDMI and TPM are optional.
Listed part numbers do not indicate stock. Edge can confirm configuration, pricing and availability.

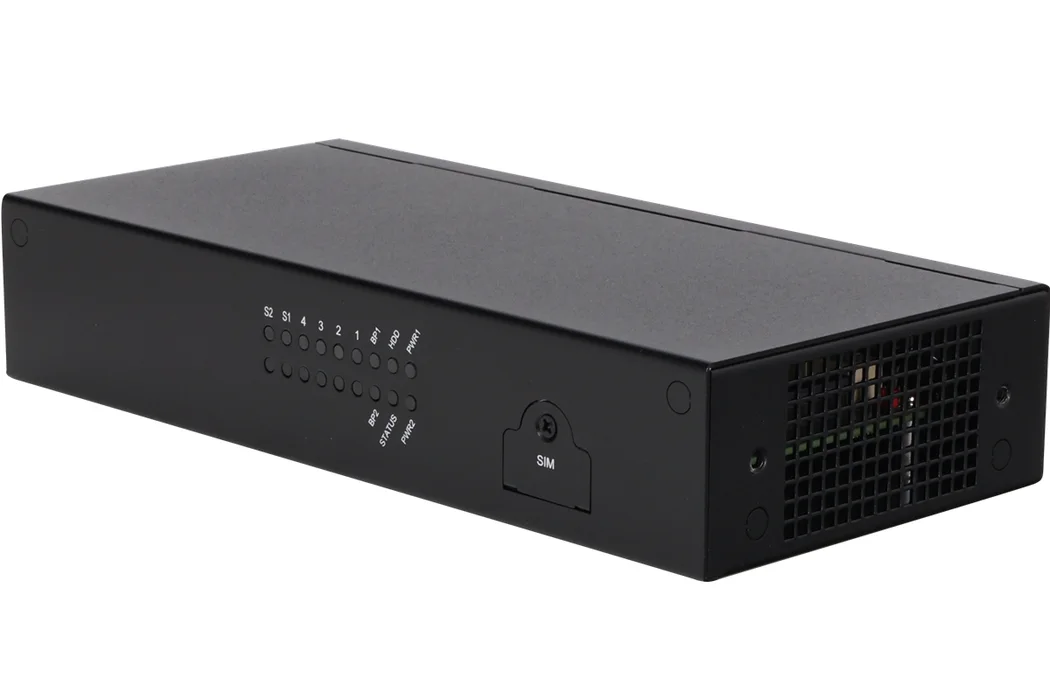

Product photographs
Technical specifications
FWS-2291 common specifications
- USB 3.x ports, excluding Type-C
- 2
- Serial interfaces
- RJ-45 console
- M.2 Key B
- 3052
- M.2 Key E
- 2230
- M.2 Key M
- 2242
- Width (mm)
- 220
- Length (mm)
- 105
- Height (mm)
- 44
- TPM
- Optional 2.0
- Fanless
- No
- Power input details
- Dual lockable DC inputs
- Configuration notes
- The listed N97 configuration supports up to 16GB RAM. The family maximum of 32GB applies to other CPU options. HDMI and TPM are optional.
- Storage configuration
- 32GB onboard eMMC; one 2.5-inch bay; M.2 2242 M-Key
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
