PCIe Gen5 QLC data center SSD

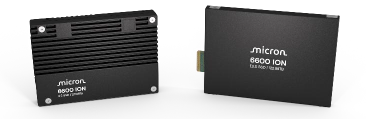

Micron 6600 ION NVMe SSD

The Micron 6600 ION is Micron's capacity-focused PCIe Gen5 NVMe data center SSD, built on G9 QLC NAND and offered in U.2, E3.S, and E3.L form factors from 30.72TB to 245.76TB. Micron positions it for AI, cloud, enterprise, and hyperscale storage where density and power efficiency matter most.

245.76TB Maximum capacity per drive

14 GB/s Maximum sequential read

30.72–245.76TB Available capacities

See part numbers

Download the technical specification

Edge Electronics is an authorized Micron distributor. Read our PCIe Gen 5 and Gen 6 SSD buyer's guide →

At a glance

Micron 6600 ION at a glance. Confirm against the current datasheet before you qualify.

Interface: PCIe Gen5 x4 (single port; dual port 2x2 on E3.S and E3.L), NVMe 2.0e
NAND: Micron G9 QLC, six-plane architecture
Capacities: 30.72TB, 61.44TB, 122.88TB, 245.76TB
Form factors: U.2 (15mm), E3.S 1T (7.5mm), E3.L 1T (7.5mm); contact Edge for E1.L requirements
Sequential read / write: Up to 14,000 / 3,000 MB/s
Random read / write (4KB): See performance by capacity and configuration below
Endurance: Up to 1.0 SDWPD (128KB sequential), 0.3 RDWPD (random)
Maximum power: 25W or less (30.72TB to 122.88TB), 30W or less (245.76TB)
Operating temperature: 0 to 70°C (commercial)
Security: SED (TCG Opal 2.02) options, CNSA 2.0, SPDM 1.2, Micron SEE
Compliance: FIPS 140-3 Level 2 certifiable on SED models (per Micron); TAA-compliant sourcing on request

Capacities from 30.72TB through 122.88TB are in full production, per Micron; Micron offers 245.76TB in U.2 and E3.L form factors. Standard configurations ship non-SED. SED (TCG Opal) configurations are offered, and Micron lists them as FIPS 140-3 Level 2 certifiable; TAA-compliant sourcing is on request.

Part numbers

Common part numbers are listed below. Standard configurations ship non-SED. SED configurations add self-encrypting (TCG Opal) firmware that Micron lists as FIPS 140-3 Level 2 certifiable; TAA-compliant sourcing is on request. The 245.76TB E3.L part numbers are examples; confirm the exact manufacturer part number, pricing, and lead times with us before ordering.

Micron 6600 ION part numbers by capacity, form factor, and security option
Capacity	Form factor	Standard (non-SED)	SED (TCG Opal)
30.72TB	U.2 (15mm)	MTFDLAL30T7QHF-1BQ1JABYY	MTFDLAL30T7QHF-1BQ1DFCYY
30.72TB	E3.S 1T (7.5mm)	MTFDLBQ30T7QHF-1BQ1JABYY	MTFDLBQ30T7QHF-1BQ1DFCYY
61.44TB	U.2 (15mm)	MTFDLAL61T4QHF-1BQ1JABYY	MTFDLAL61T4QHF-1BQ1DFCYY
61.44TB	E3.S 1T (7.5mm)	MTFDLBQ61T4QHF-1BQ1JABYY	MTFDLBQ61T4QHF-1BQ1DFCYY
122.88TB	U.2 (15mm)	MTFDLAL122T8QHF-1BQ1JABYY	MTFDLAL122T8QHF-1BQ1DFCYY
122.88TB	E3.S 1T (7.5mm)	MTFDLBQ122T8QHF-1BQ1JABYY	MTFDLBQ122T8QHF-1BQ1DFCYY
122.88TB	E1.L (confirm availability)	MTFDLBN122T8QHF-1BQ1JABYY	MTFDLBN122T8QHF-1BQ1DFCYY
245.76TB	E3.L	MTFDLBX245T7QHF-1BQ1JABYY ^†	MTFDLBX245T7QHF-1BQ1DFCYY ^†

† Example part number. Confirm the exact manufacturer part number and availability with us before ordering. Key: AL = U.2, BQ = E3.S, BN = E1.L, BX = E3.L; 1 = 512-byte sector; the security option is part of the number (J = non-SED, D = SED). For E1.L requirements, contact Edge to confirm current options and availability. Availability and any non-cancelable, non-returnable terms are confirmed in your quote. Additional sector-size and firmware options exist; ask us for the full list.

Available 6600 ION part numbers.

Filter by what the design needs, or search within the results.

Interface: PCIe Gen5 x4, NVMe 2.0e
NAND type: QLC
Operating temperature: 0 to 70 °C

15 products


MTFDLBN122T8QHF-1BQ1DFCYYMicron 6600 ION	122.88 TB	E1.L	0.075 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	42,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLBN122T8QHF-1BQ1JABYYMicron 6600 ION	122.88 TB	E1.L	0.075 DWPD	Non-SED	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	42,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLBQ30T7QHF-1BQ1DFCYYMicron 6600 ION	30.72 TB	E3.S	0.3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,600,000 IOPS	110,000 IOPS	14,000 MB/s	2,700 MB/s
MTFDLBQ30T7QHF-1BQ1JABYYMicron 6600 ION	30.72 TB	E3.S	0.3 DWPD	Non-SED	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,600,000 IOPS	110,000 IOPS	14,000 MB/s	2,700 MB/s
MTFDLBQ61T4QHF-1BQ1DFCYYMicron 6600 ION	61.44 TB	E3.S	0.075 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	8,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	40,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLBQ61T4QHF-1BQ1JABYYMicron 6600 ION	61.44 TB	E3.S	0.075 DWPD	Non-SED	8,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	40,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLBQ122T8QHF-1BQ1DFCYYMicron 6600 ION	122.88 TB	E3.S	0.075 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	42,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLBQ122T8QHF-1BQ1JABYYMicron 6600 ION	122.88 TB	E3.S	0.075 DWPD	Non-SED	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	42,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLAL30T7QHF-1BQ1DFCYYMicron 6600 ION	30.72 TB	U.2	0.3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,600,000 IOPS	110,000 IOPS	14,000 MB/s	2,700 MB/s
MTFDLAL30T7QHF-1BQ1JABYYMicron 6600 ION	30.72 TB	U.2	0.3 DWPD	Non-SED	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,600,000 IOPS	110,000 IOPS	14,000 MB/s	2,700 MB/s
MTFDLAL61T4QHF-1BQ1DFCYYMicron 6600 ION	61.44 TB	U.2	0.075 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	8,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	40,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLAL61T4QHF-1BQ1JABYYMicron 6600 ION	61.44 TB	U.2	0.075 DWPD	Non-SED	8,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	40,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLAL122T8QHF-1BQ1DFCYYMicron 6600 ION	122.88 TB	U.2	0.075 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	42,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLAL122T8QHF-1BQ1JABYYMicron 6600 ION	122.88 TB	U.2	0.075 DWPD	Non-SED	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	42,000 IOPS	14,000 MB/s	3,000 MB/s
MTFDLAL122T8QHF-1BQ4DFCYYMicron 6600 ION	122.88 TB	U.2	0.075 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	16,000 TB	PCIe Gen5 x4, NVMe 2.0e	QLC	0 to 70 °C	2,000,000 IOPS	42,000 IOPS	14,000 MB/s	3,000 MB/s

Sort by

Capacity and form factor lineup

The Micron 6600 ION family is offered across U.2, E3.S, and E3.L form factors. Capacities from 30.72TB through 122.88TB are in full production, per Micron; 245.76TB is offered in U.2 and E3.L form factors, per Micron. Contact us for current availability.

Micron 6600 ION capacities and form factors
Rated capacity	U.2 (15mm)	E3.S 1T (7.5mm)	E3.L
30.72TB	Available	Available	Not offered
61.44TB	Available	Available	Not offered
122.88TB	Available	Available	Not offered
245.76TB	Available	Not offered	Available

For E1.L requirements, contact Edge to confirm current options and availability. Availability and any non-cancelable, non-returnable terms are confirmed in your quote.

Which form factor fits?

U.2

70 x 100 x 15mm

Capacities: 30.72TB to 245.76TB
Density: Up to 24 drives per 2U (2.9PB/U)
Host requirements: Confirm the connector, backplane, firmware, power, and cooling requirements. A migration may require system changes.

E3.S 1T

76 x 113 x 7.5mm

Capacities: 30.72TB to 122.88TB
Density: High-density EDSFF
Best for: Modern EDSFF servers balancing density and serviceability

E3.L

EDSFF long

Capacities: 245.76TB
Density: Up to 40 drives per 2U (4.9PB/U, 176.9PB per rack)
Best for: Maximum density: AI data ingest, data lakes, hyperscale

E1.L

Confirm availability

Ruler form factor

Availability: For E1.L requirements, contact Edge to confirm current options and availability.
Order terms: Availability and any non-cancelable, non-returnable terms are confirmed in your quote.
Best for: Dense ruler-form deployments

Estimate your storage savings

Enter the capacity you need to store and the drive you would replace. We compare the Micron 6600 ION E3.L (245.76TB) against a capacity HDD on racks, drive power, and energy cost.

Micron 6600 ION

E3.L · 245.76TB per drive

Drives needed: 4,070
Racks (36U): 6
Drive power: 122 kW

Legacy storage

Capacity HDD · 44TB per drive

Drives needed: 22,728
Racks (36U): 32
Drive power: 227 kW

26 fewer racks

1.9x more power-efficient

$165,848 estimated annual energy-cost reduction, including the selected facility overhead

Want pricing or a configuration matched to your workload? Request a quote

Method follows the Micron 6600 ION brief (Rev B, May 2026): 20 drives per U (40 E3.L per 2U; 100 HDDs per 5U), 30W per SSD and 10W per HDD. Drive power shown excludes facility overhead; set PUE to include cooling and power conversion. The HDD baseline is selectable. Estimates for planning only.

Key benefits, per Micron

Density: up to 245.76TB per drive and 9.8PB per 2U with the E3.L, up to 5.6x the capacity per rack of high-capacity HDDs
Built on Micron G9 QLC NAND with a six-plane architecture and PCIe Gen5 for high density, faster parallelism, and strong TCO at scale
Up to 1.9x the power efficiency of high-capacity data center HDDs (8.2TB managed per watt), lowering cooling and electricity costs
Vertically integrated Micron design (NAND, DRAM, controller, firmware, validation) for simplified qualification and optimized reliability
Security options including SED (TCG Opal) configurations that Micron lists as FIPS 140-3 Level 2 certifiable, with TAA-compliant sourcing on request

Density and power, in Micron's terms

With capacities up to 245TB per drive, Micron positions the 6600 ION as a new standard for SSD density: petabytes of storage in fewer servers and rack units, up to 5.6x the capacity per rack of high-capacity HDDs, which reduces space, power, and cooling costs.

Built on Micron's ninth-generation (G9) QLC NAND with a six-plane architecture, the 6600 ION delivers, per Micron, up to 1.9x the power efficiency of high-capacity data center HDDs while keeping the reliability of a vertically integrated Micron design: NAND, DRAM, controller, firmware, and validation.

Security and compliance

The 6600 ION is offered in self-encrypting (SED, TCG Opal) configurations that Micron lists as FIPS 140-3 Level 2 certifiable, with CNSA 2.0 and SPDM 1.2 support. Tell us the documentation your program requires for the selected configuration. TAA-compliant sourcing is available on request, subject to product eligibility, availability, and confirmed country of origin.

Key specifications

Micron 6600 ION key technical specifications

Interface: PCIe Gen5 x4 (single port; dual port 2x2 on E3.S and E3.L), NVMe 2.0e
NAND: Micron G9 QLC, six-plane architecture
Capacities: 30.72TB, 61.44TB, 122.88TB, 245.76TB
Form factors: U.2 (15mm), E3.S 1T (7.5mm), E3.L 1T (7.5mm)
Sequential read: Up to 14,000 MB/s
Sequential write: Up to 3,000 MB/s
Random read (4KB): See the capacity-specific performance table below
Random write (4KB): Up to 110,000 IOPS (30.72TB); 40,000 to 42,000 IOPS at higher capacities
Latency (typical): 100 to 108 µs read / 15 to 20 µs write, depending on capacity
Maximum power: 25W or less (30.72TB to 122.88TB), 30W or less (245.76TB)
Idle power: 5W or less
Endurance: Up to 1.0 SDWPD (128KB sequential), 0.3 RDWPD (random)
MTTF: 2.5 million hours at 0 to 50°C; 2.0 million hours at 0 to 55°C (population statistic)
UBER: Less than 1 sector per 10¹⁸ bits read
Operating temperature: 0 to 70°C (commercial)
Security: SED (TCG Opal 2.02) options, CNSA 2.0, SPDM 1.2, Micron SEE, digitally signed firmware, enterprise power-loss protection
Compliance: FIPS 140-3 Level 2 certifiable (per Micron) · TAA-compliant sourcing on request
Management: OCP 2.6, NVMe-MI 2.0, NVM Command Set 1.0e, 512 namespaces

Reference: Micron technical product specification, Rev A, September 2026. Performance depends on capacity, workload, and host configuration; endurance figures are estimates, not warranty terms.

Performance by capacity and configuration

Micron publishes different performance and endurance values by capacity, workload, and power state. The table uses its September 2026 technical specification, Tables 2 through 6.

Micron 6600 ION performance and endurance by capacity
Capacity	Sequential read / write (MB/s)	Random read / write (4KB, KIOPS)	Endurance (TBW, 4KB random)	Endurance (TBW, 128KB sequential)	Latency, typical (read / write)
30.72TB	14,000 / 2,700	2,600 / 110	16,000	56,000	100 / 15 µs
61.44TB	14,000 / 3,000	2,000 / 40	8,000	112,000	100 / 20 µs
122.88TB	14,000 / 3,000	2,000 / 42	16,000	224,000	100 / 20 µs
245.76TB	13,700 / 3,000	1,780 / 42	33,000	448,000	108 / 15 µs

Source: Micron technical specification Rev A, September 2026, Tables 2–6. The 30.72TB and 61.44TB performance figures use the default 25W PS1 columns in Tables 2 and 3. Refer to the specification for all test conditions. TBW is the theoretical maximum for the stated transfer size. Values are for reference only and are not warrantied.

Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.

Availability

Capacities from 30.72TB through 122.88TB are in full production, per Micron. Micron offers 245.76TB in U.2 and E3.L form factors. Contact us for current availability, lead times, and samples.

What we add

As an authorized Micron distributor, we help with:

Matching the model, capacity, form factor, and cooling approach to your workload, with our technical team and, when needed, Micron's
DPAS-rated orders, TAA-compliant sourcing on request confirmed at the part-number level, and documentation such as Statements of Volatility
Current pricing and availability, and sample coordination through Micron for early qualification

Frequently asked questions

What is the Micron 6600 ION NVMe SSD?

The Micron 6600 ION is a capacity-focused PCIe Gen5 data center SSD family built on Micron G9 QLC NAND. It ranges from 30.72TB to 245.76TB and is designed for AI, cloud, enterprise, and hyperscale storage where density and power efficiency matter most.

What capacities and form factors are available?

Capacities are 30.72TB, 61.44TB, 122.88TB, and 245.76TB. Form factors include U.2 (15mm), E3.S 1T (7.5mm), and E3.L. For E1.L requirements, contact Edge to confirm current options and availability. The 30.72TB through 122.88TB drives are in full production, per Micron; 245.76TB is offered in U.2 and E3.L form factors, per Micron.

Does the selected configuration meet our FIPS requirement?

Tell us the validation your program requires. We’ll request the available manufacturer documentation for the exact configuration. FIPS-certifiable does not establish that validation has been completed.

Can you help with TAA-compliant sourcing?

TAA-compliant sourcing is available on request, subject to product eligibility, availability, and confirmed country of origin.

How does the 6600 ION compare to hard drives?

Per Micron, against a 44TB capacity-class HDD the 245.76TB E3.L delivers up to 5.6x the capacity per rack and about 1.9x the power efficiency. That means fewer racks, servers, and watts to store the same data, which lowers space, power, and cooling costs.

What is the part number for the 245TB 6600 ION?

An example E3.L configuration is MTFDLBX245T7QHF-1BQ1JABYY for the standard (non-SED) model, or MTFDLBX245T7QHF-1BQ1DFCYY for the SED model. These are examples; confirm the exact manufacturer part number with us before ordering.

Can I buy the Micron 6600 ION from Edge Electronics?

Yes. Edge Electronics is an authorized Micron distributor. Request pricing, availability, and samples through the form on this page, and our technical team can help match the drive and configuration to your workload.
