- Included processor
- 1 × AMD EPYC 4545P
- Installed memory
- 32GB DDR5-5600
Compact AMD edge system · Gold configuration
Supermicro AS -E300-14GR-01-G2
A compact AMD system for store operations and local analytics, with four Gigabit Ethernet data ports.
Included in this Gold configuration
AS -E300-14GR-01-G2: included hardware
- Form factor / system type
- Mini-1U compact system
- Included processor
- 1 × AMD EPYC 4545P
- Installed memory
- 32GB DDR5-5600
- Storage configuration
- 1 × 960GB M.2 NVMe SSD
- Ethernet specification
- 4 × 1GbE RJ45; separate dedicated IPMI port
- Included power equipment
- 180W power adapter
Memory ratings describe the modules; operating speed depends on the CPU and DIMM configuration.
Part number
Confirm pricing and availability with Edge.

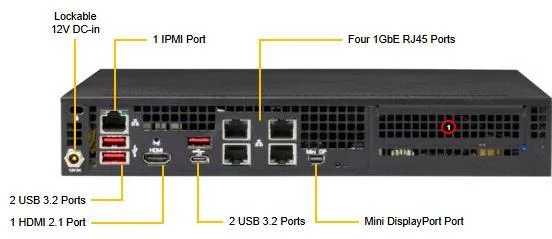

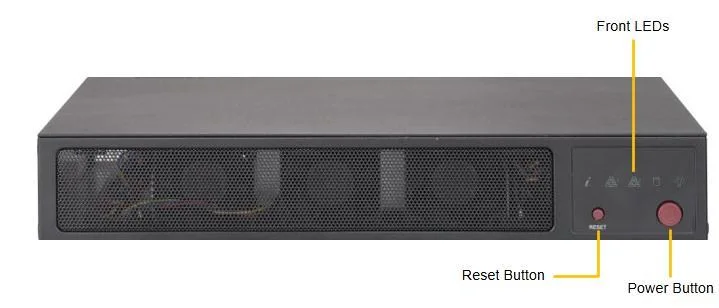

Product photographs
Platform capabilities and installation requirements
AS -E300-14GR-01-G2: platform limits and conditions
- Supported memory capacity
- Up to 192GB DDR5 UDIMM at 5600MT/s (1DPC).
- Enclosure dimensions (W × H × D)
- 264.8 × 43 × 225.8mm
- Cooling
- Fan-based system; confirm the installed heatsink and fan configuration.
- Operating temperature
- 0°C to 40°C with 0.7m/s airflow
- Storage expansion
- Two M.2 PCIe 5.0 x4 slots, for 2280 and 22110 devices. Slot capacity does not indicate included drives.
