- Included processor
- 2 × Intel Xeon 6960P
- Installed memory
- 1TB DDR5-6400
4U GPU server · Gold configuration
Supermicro SYS-422GA-NRT-01-G2
A 4U configuration with four 96GB GPUs and 1TB of memory for shared AI inference workloads.
Included in this Gold configuration
SYS-422GA-NRT-01-G2: included hardware
- Form factor / system type
- 4U rackmount
- Included processor
- 2 × Intel Xeon 6960P
- Installed GPU
- 4 × NVIDIA RTX PRO 6000 Blackwell Server Edition
- GPU memory per installed device (GB)
- 96
- Installed memory
- 1TB DDR5-6400
- Storage configuration
- 2 × 3.84TB NVMe SSD; 1 × 960GB M.2 NVMe SSD
- Ethernet specification
- Dual 10GbE RJ45
- Included power equipment
- 4 × 3200W Titanium power supplies
Memory ratings describe the modules; operating speed depends on the CPU and DIMM configuration.
Part number
Confirm pricing and availability with Edge.

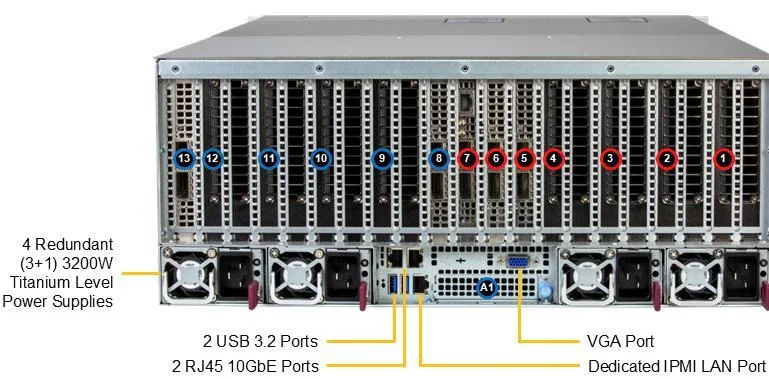

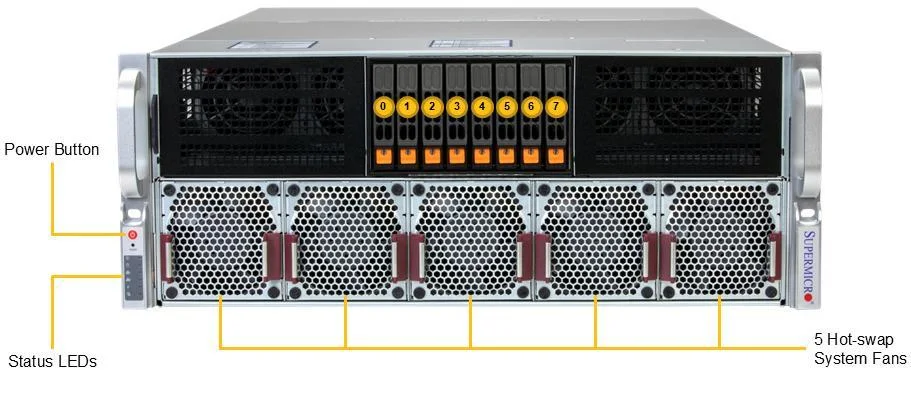

Product photographs
Platform capabilities and installation requirements
SYS-422GA-NRT-01-G2: platform limits and conditions
- Supported GPU capacity
- Up to 8 double-width GPUs; supported count varies with GPU width and configuration.
- Supported memory capacity
- Up to 6TB DDR5 RDIMM at 6400MT/s or MRDIMM at 8800MT/s (1DPC).
- Enclosure dimensions (W × H × D)
- 437 × 178 × 737mm
- Cooling
- 10 × 8cm heavy-duty fans
- Operating temperature
- 10 to 35 °C
- Power redundancy
- Platform specifies 3 + 1 redundant supplies. PSU ratings are not system consumption.
