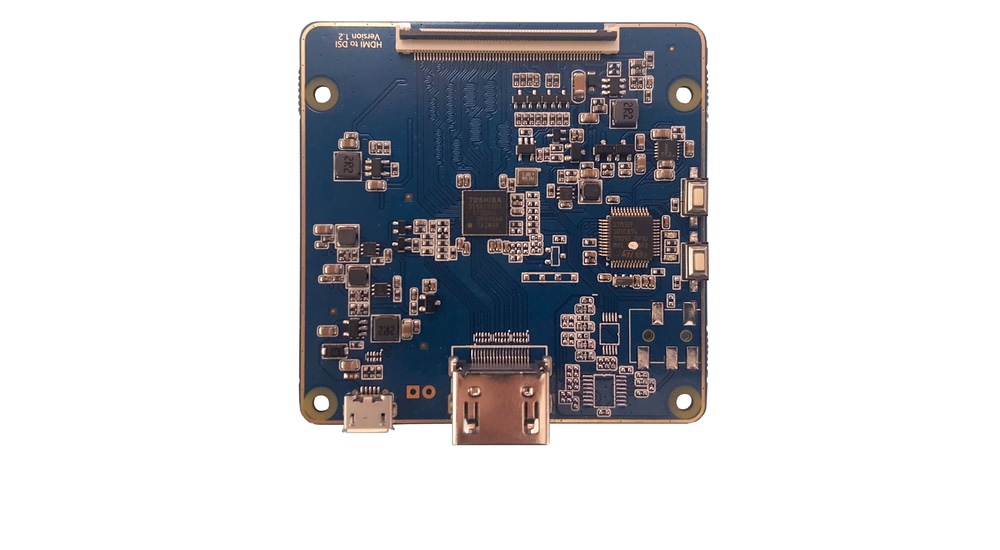

MIP-1000
Manufacturer part number: 4160072XX-3
Compact MIPI DSI LCD controller. Single HDMI 1.4 input (up to 2160x3840 at 30 Hz); MIPI DSI output; 65 x 64 mm board.
Authorized Digital View distributor
Specifications
Application & availability
- Target applications
- Industrial, Medical, Digital signage
Video & display
- Input interfaces
- HDMI
- Video inputs and versions
- HDMI 1.4
- Maximum video input resolution
- 2160 × 3840
- Maximum video input refresh rate
- 30 Hz
- Panel interface
- MIPI DSI
- Panel output details
- MIPI-DSI
- Supported resolutions
- Up to 2160 × 3840
- Color depth (bits per color)
- 8
- Image processing
- brightness only
Integration & physical details
- Control interfaces
- OSD buttons
- Audio output
- none
- Backlight control
- PWM brightness control
- Panel supply options
- 1.8V, 3.3V, 5.8V
- Supply voltage
- 5 V DC
- Environment grade
- Standard
- Operating temperature
- 0 to 60 °C
- Board dimensions
- 65 × 64 mm (L x W)
- Board height
- 4 mm
Ask us for current product status and availability.
