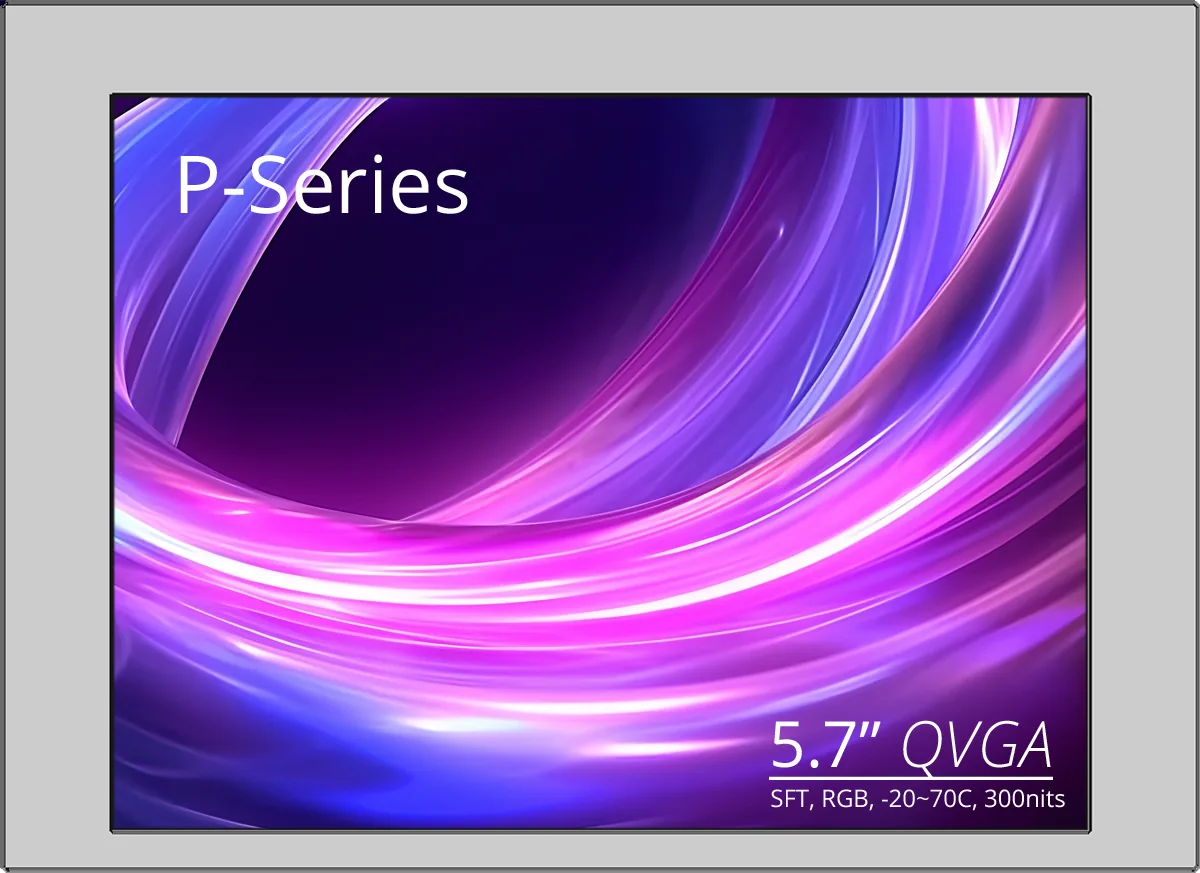

Tianma · P Series
P0567VQF1ME00
- Diagonal
- 5.7 in
- Resolution · QVGA
- 240 × 320
- Brightness
- 500 nits
- Interface
- RGB
SFT panel rated for −20 to 70 °C operation.
Authorized Tianma distributor Tianma America Distributor of the Year, 2025
Specifications
Display & optics
- Diagonal size
- 5.7 in
- Resolution
- 240 × 320
- Resolution name
- QVGA
- Brightness
- 500 nits
- Contrast ratio
- 1000:1
- Display mode
- SFT
- Technology
- a-Si
- Viewing angle
- 85/85/85/85
- Response time
- 35 ms
- Aspect ratio
- 4:3
Integration & physical details
- Interface
- RGB
- Touch
- Not included
- LED driver built in
- No
- Operating temperature
- −20 to 70 °C
- Outline dimensions
- 144.00 × 104.60 × 5.10 mm
- Active area
- 115.2 × 86.4 mm
- Grade
- Entry
Description
5.7" QVGA, Entry, SFT, RGB, 500 nits, w/o LED Dr
Documents
RequestDatasheet, mechanical drawing and pinoutRequest from us
→ Request pricing and availabilityP0567VQF1ME00
We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.
Send the quantity and your target date. We'll come back with pricing and availability.
Open the formFor documentation, pricing and availability: 800.647.3343.
