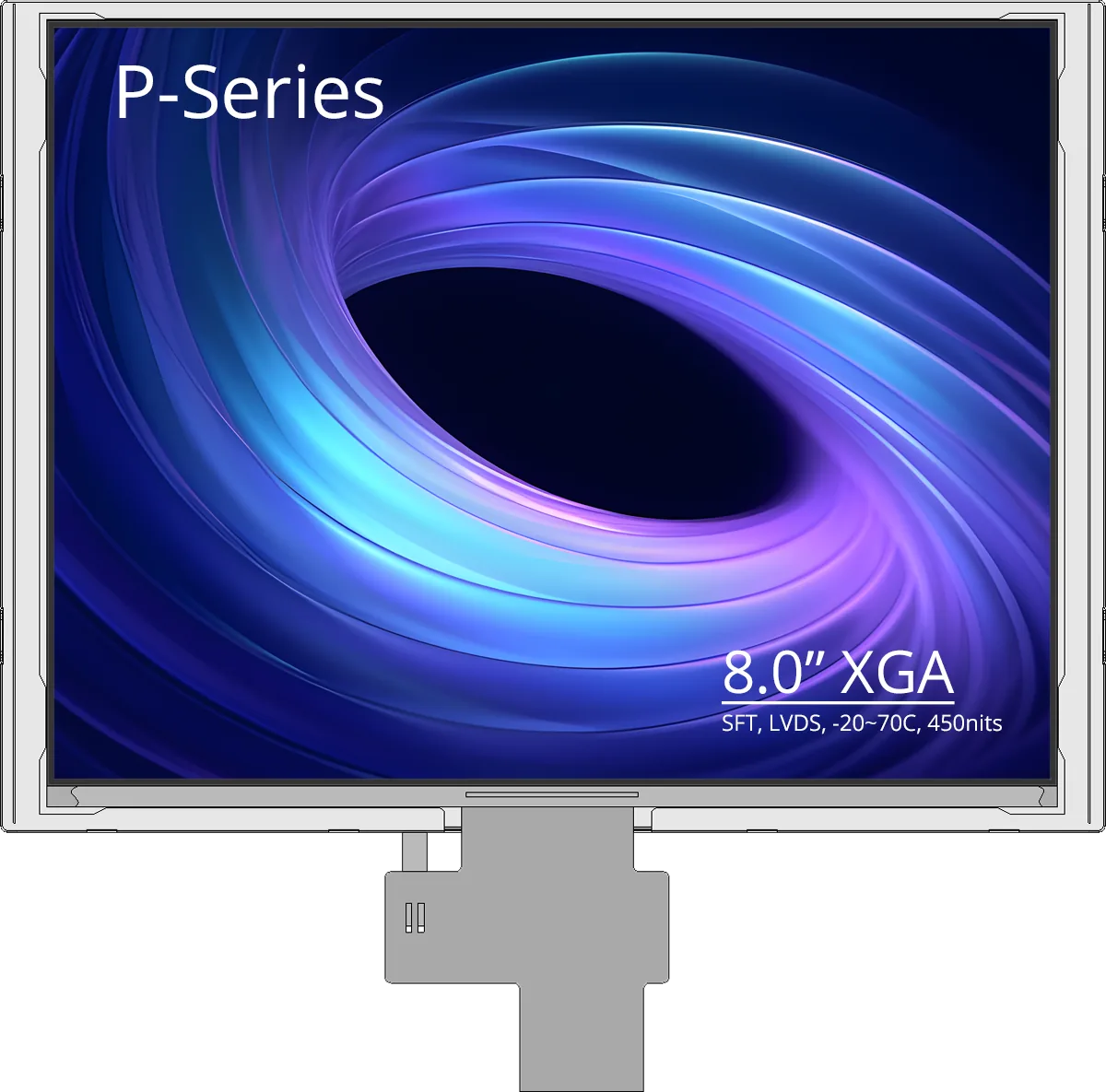

Tianma · P Series
P0800XGF2MB00
- Diagonal
- 8 in
- Resolution · XGA
- 1024 × 768
- Brightness
- 450 nits
- Interface
- LVDS
SFT panel rated for −20 to 70 °C operation.
Authorized Tianma distributor Tianma America Distributor of the Year, 2025
Specifications
Display & optics
- Diagonal size
- 8 in
- Resolution
- 1024 × 768
- Resolution name
- XGA
- Brightness
- 450 nits
- Contrast ratio
- 1800:1
- Display mode
- SFT
- Technology
- a-Si
- Viewing angle
- 88/88/88/88
- Response time
- 35 ms
- Aspect ratio
- 4:3
Integration & physical details
- Interface
- LVDS
- LED driver built in
- No
- Backlight lifetime
- 50,000 h
- Operating temperature
- −20 to 70 °C
- Outline dimensions
- 182.73 × 137.65 × 3.85 mm
- Active area
- 162.05 × 121.54 mm
- Grade
- Basic
Description
8.0" XGA, LVDS, SFT, Basic, 450nit, -20+70C, 50K hr. w/o LED Dr
