Tianma · P Series

P1010WXF1MA01

Diagonal
10.1 in
Resolution · WXGA
1280 × 800
Brightness
1,000 nits
Interface
LVDS

SFT panel rated for −30 to 80 °C operation.

On order with the manufacturer.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

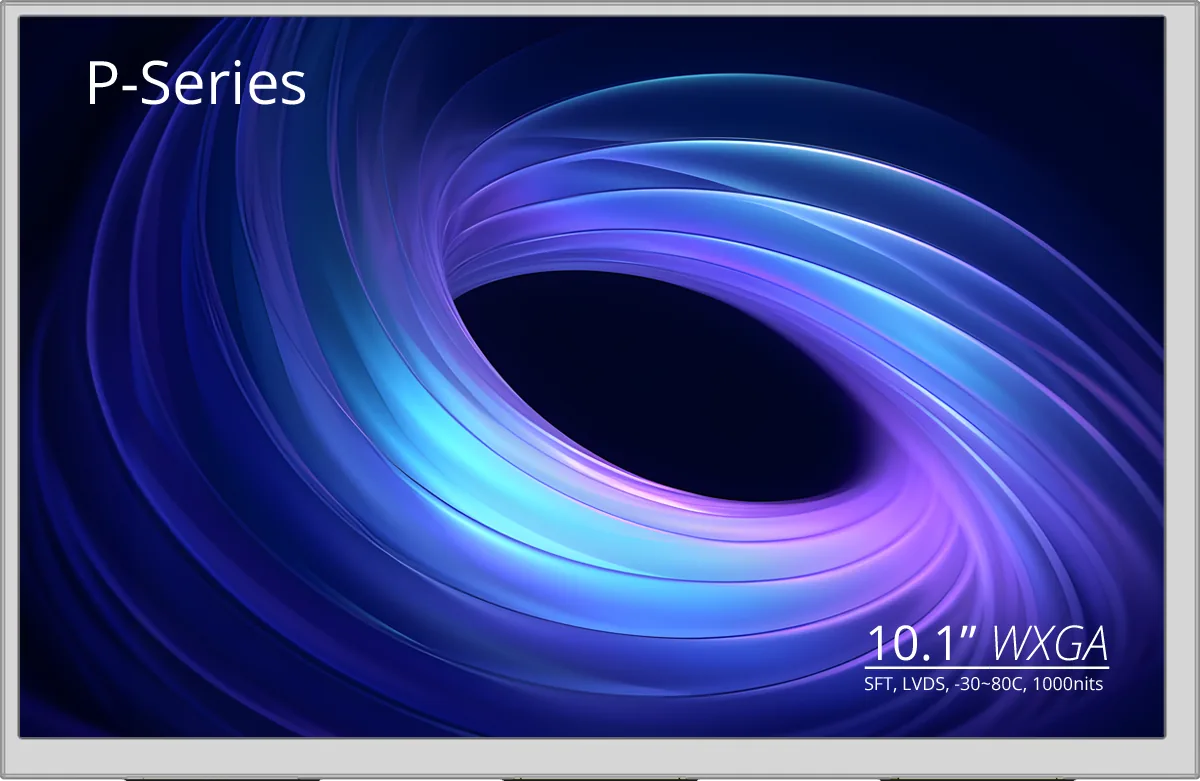

P1010WXF1MA01 product photo

Specifications

Display & optics

Diagonal size
10.1 in
Resolution
1280 × 800
Resolution name
WXGA
Brightness
1,000 nits
Contrast ratio
700:1
Display mode
SFT
Technology
a-Si
Viewing angle
88/88/88/88
Response time
25 ms
Aspect ratio
16:10

Integration & physical details

Interface
LVDS
Touch
Not included · Factory PCAP optional
LED driver built in
Yes
Backlight lifetime
50,000 h
Operating temperature
−30 to 80 °C
Outline dimensions
229.8 × 149.9 × 9.11 mm
Active area
216.96 × 135.60 mm
Grade
Advanced
Description

10.1" WXGA, Advanced, SFT, LVDS, 1000nit, 50Khr, -30 +80, with LED Dr
