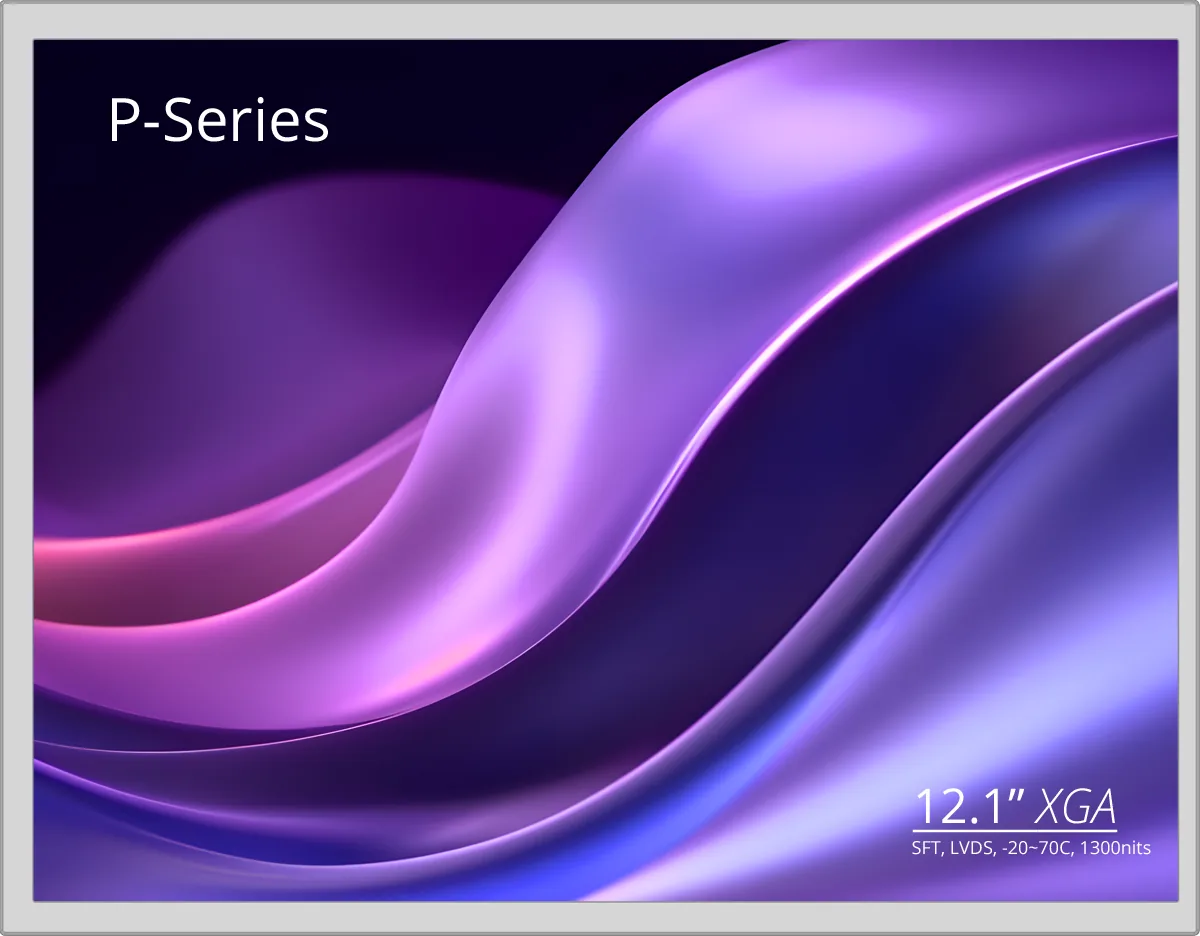

Tianma · P Series

P1210XGF1MA00

Diagonal: 12.1 in
Resolution · XGA: 1024 × 768
Brightness: 1,300 nits
Interface: LVDS

SFT panel rated for −20 to 70 °C operation.

In stock.

Request datasheet

Authorized Tianma distributor Tianma America Distributor of the Year, 2025

Specifications

Display & optics

Diagonal size: 12.1 in
Resolution: 1024 × 768
Resolution name: XGA
Brightness: 1,300 nits
Contrast ratio: 1000:1
Display mode: SFT
Technology: a-Si
Viewing angle: 88/88/88/88
Response time: 25 ms
Aspect ratio: 4:3

Integration & physical details

Interface: LVDS
Touch: Not included · Factory PCAP optional
LED driver built in: No
Backlight lifetime: 100,000 h
Operating temperature: −20 to 70 °C
Outline dimensions: 260.5 × 203 × 9.5 mm
Active area: 245.76 × 184.32 mm
Grade: Advanced

Description

12.1" XGA, Advanced, SFT, LVDS, 1300 nit, -20 to +70°C, 100K hr w/o LED Dr

Documents

Request

Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityP1210XGF1MA00

Please don’t include sensitive or confidential information in this form. Privacy notice

Loading form…

What information should I leave out?

Do not submit classified information, Controlled Unclassified Information (CUI), export-controlled technical data, payment-card information, Social Security numbers, health information, passwords, or other sensitive data through this form. Contact Edge to discuss an appropriate transfer method.

We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.

Send the quantity and your target date. We'll come back with pricing and availability.

Open the form

For documentation, pricing and availability: 800.647.3343.

Complete the display.

The parts that turn this panel into a working display. Which ones you need depends on your host system and application.

Plan your display

Send this panel and the layers you need in one request. Nothing is sent until you submit.

Panel

P1210XGF1MA00 · 12.1 in · LVDS
Touch and cover glass

Touch not included in this part number

Touch sensing and cover options matched to the environment and the enclosure.

Touch options
Control and computing

LVDS interface
Controller boards that convert system video outputs to the panel's interface.
Related LCD controller boards
- DT-1920-HDMI
  Digital View · 4177000XX-3

  Compact controller with a single HDMI input and LVDS panel connection for commercial and industrial applications. Multi-panel timing support, brightness and temperature sensors, auto EDID, and audio line-out.
Find a controller for your LCD.
Search Digital View’s Controller Solution Generator by panel model number.

LCD panel model number

Enter a complete or partial model number.

We can help confirm the controller version, panel cables, backlight driver, and configuration for your application. A connection result does not establish price or availability.
Contact us →

LCD controllers Single-board computers
Backlight power

External LED driver needed

LED backlight driver boards matched to your display and dimming requirements.

ERG backlight driver configurations

ERG’s Tianma cross-reference ↗︎

Confirm the panel revision and required brightness with us; this panel number has two driver configurations.

ERG SFD2HB4523F

1,300 nits

View connections for SFD2HB4523F, 1,300 nits

Driver-to-panel connection
H22910150F
Input option: flying leads
H1308460F
Input option: Digital View to ERG
Ask about H5906305 →

Choose one input harness: flying leads or Digital View to ERG. We’ll confirm the controller model, pinout, and dimming signals with you, and coordinate the panel’s video connection separately.
Contact us →

ERG SFD2HB4524F

1,500 nits

View connections for SFD2HB4524F, 1,500 nits

Driver-to-panel connection
H22910150F
Input option: flying leads
H1308460F
Input option: Digital View to ERG
Ask about H5906305 →

Choose one input harness: flying leads or Digital View to ERG. We’ll confirm the controller model, pinout, and dimming signals with you, and coordinate the panel’s video connection separately.
Contact us →

LED drivers
Cables and harnesses

Interface cabling built to the length and routing the enclosure needs.

LCD cables
Enhancements and integration

Optical bonding, anti-glare, brightness, and extended temperature work. We can also arrange enclosures and other custom work case by case, with the manufacturer or our integration partners.

Display enhancements LCD kits

Similar Tianma panels

Compare size, resolution, and display requirements. Differences from this panel are highlighted.

Browse Tianma LCD panels →

Similar Tianma panels: P1210XGF1MA00
Part number	Size	Resolution	Brightness	Interface	Operating temperature	Touch	LED driver	Outline (mm)
P1210XGF1MA00 Current panel	12.1 in	1024 × 768	1,300 nits	LVDS	−20 to 70 °C	Not included · Factory PCAP optional	External	260.5 × 203 × 9.5
P1210XGF1MA01 Same diagonal, resolution, and interface	12.1 in	1024 × 768	800 nits (differs)	LVDS	−30 to 80 °C (differs)	Not included · Factory PCAP optional	Built in (differs)	260.5 × 203 × 9.5
P1210XGF1MB00 Same diagonal, resolution, and interface	12.1 in	1024 × 768	500 nits (differs)	LVDS	−30 to 80 °C (differs)	Not included · Factory PCAP optional	Built in (differs)	260.5 × 203.0 × 9.5
P1210XGN1MB00 Same diagonal, resolution, and interface	12.1 in	1024 × 768	450 nits (differs)	LVDS	−20 to 70 °C	Not included · Factory PCAP optional	Built in (differs)	279.0 × 209.0 × 8.6 (differs)

Confirm mechanical fit, pinout, and backlight requirements before choosing another panel.

Send us your requirements and we'll check availability and alternatives. Request a quote
