Tianma · P Series

P1330FHF1MA00

Diagonal
13.3 in
Resolution · FHD
1920 × 1080
Brightness
1,000 nits
Interface
LVDS

SFT panel rated for −20 to 70 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

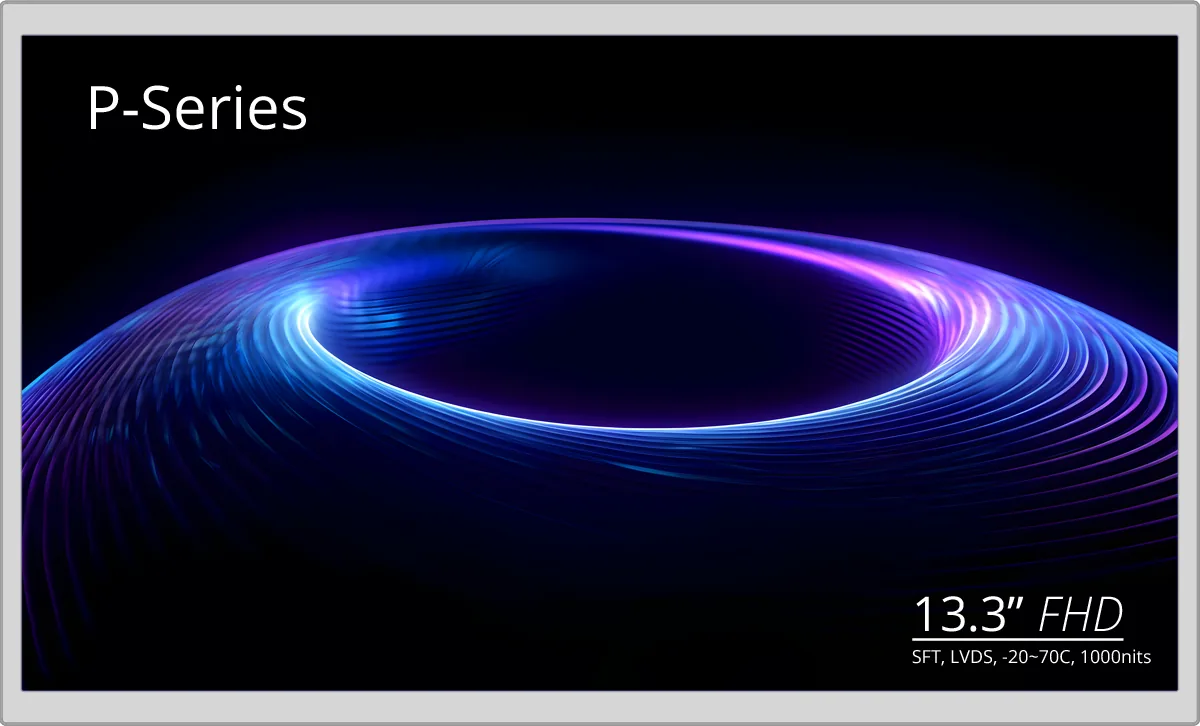

P1330FHF1MA00 product photo

Specifications

Display & optics

Diagonal size
13.3 in
Resolution
1920 × 1080
Resolution name
FHD
Brightness
1,000 nits
Contrast ratio
1000:1
Display mode
SFT
Technology
a-Si
Viewing angle
88/88/88/88
Response time
25 ms
Aspect ratio
16:9

Integration & physical details

Interface
LVDS
Touch
Not included · Factory PCAP optional
LED driver built in
No
Operating temperature
−20 to 70 °C
Outline dimensions
308.00 × 188.00 × 10.00 mm
Active area
293.76 × 165.24 mm
Grade
Advanced
Description

13.3" FHD, Advanced, LVDS, SFT, 1000 nits, -20+70C, w/o LED Dr.

Documents

Request
Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityP1330FHF1MA00

Please don’t include sensitive or confidential information in this form. Privacy notice

Loading form…

What information should I leave out?

Do not submit classified information, Controlled Unclassified Information (CUI), export-controlled technical data, payment-card information, Social Security numbers, health information, passwords, or other sensitive data through this form. Contact Edge to discuss an appropriate transfer method.

We provide available lot-level traceability and manufacturer documentation for authorized-channel parts.

Send the quantity and your target date. We'll come back with pricing and availability.

Open the form

For documentation, pricing and availability: 800.647.3343.

Edge Electronics · Product summary
Tianma · P1330FHF1MA00 · P Series

https://www.edgeelectronics.com/p/tianma-p1330fhf1ma00/

Confirm specifications for the required revision with Edge or the manufacturer. For documentation, pricing and availability: 800.647.3343.

Complete the display.

The parts that turn this panel into a working display. Which ones you need depends on your host system and application.

Plan your display

Send this panel and the layers you need in one request. Nothing is sent until you submit.

  1. Panel

    P1330FHF1MA00 · 13.3 in · LVDS

  2. Touch and cover glass

    Touch not included in this part number

    Touch sensing and cover options matched to the environment and the enclosure.

    Touch options

  3. Control and computing

    LVDS interface

    Controller boards that convert system video outputs to the panel's interface.

    Find a controller for your LCD.

    Search Digital View’s Controller Solution Generator by panel model number.

    Enter a complete or partial model number.

    We can help confirm the controller version, panel cables, backlight driver, and configuration for your application. A connection result does not establish price or availability.

    Contact us →
     LCD controllers Single-board computers

  4. Backlight power

    External LED driver needed

    LED backlight driver boards matched to your display and dimming requirements.

    ERG backlight driver configurations

    ERG’s Tianma cross-reference ↗︎

    ERG SFDZDB4525F

    1,000 nits

    The output FPC is still to be specified. We’ll confirm the driver-to-panel connection with ERG.

    View connections for SFDZDB4525F, 1,000 nits
    Driver-to-panel connection
    FPC to be specified
    Input option: flying leads
    Ask about H6815460F →
    Input option: Digital View to ERG
    Ask about H16815460F →

    Choose one input harness: flying leads or Digital View to ERG. We’ll confirm the controller model, pinout, and dimming signals with you, and coordinate the panel’s video connection separately.

    Contact us →
    LED drivers

  5. Cables and harnesses

    Interface cabling built to the length and routing the enclosure needs.

    LCD cables

  6. Enhancements and integration

    Optical bonding, anti-glare, brightness, and extended temperature work. We can also arrange enclosures and other custom work case by case, with the manufacturer or our integration partners.

    Display enhancements LCD kits
