Tianma · P Series

P1730FHF1MB00

Diagonal
17.3 in
Resolution · FHD
1920 × 1080
Brightness
500 nits
Interface
LVDS

SFT panel rated for −20 to 60 °C operation.

Request a quote
Request datasheet
Authorized Tianma distributor Tianma America Distributor of the Year, 2025

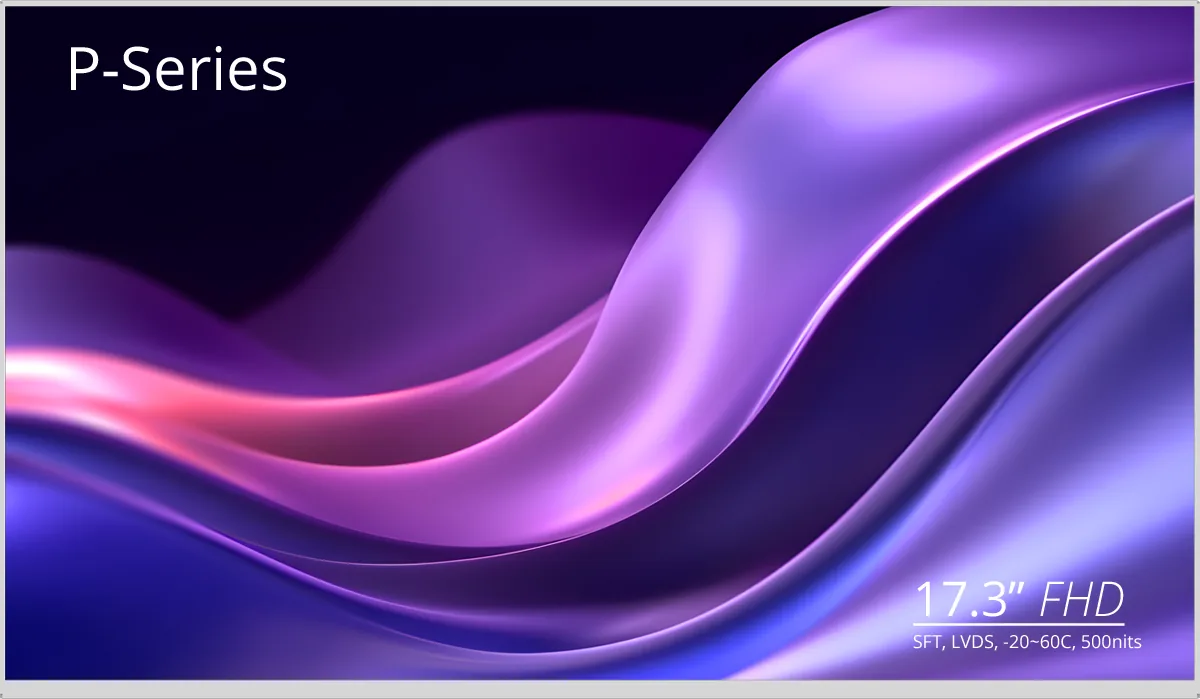

P1730FHF1MB00 product photo

Specifications

Display & optics

Diagonal size
17.3 in
Resolution
1920 × 1080
Resolution name
FHD
Brightness
500 nits
Contrast ratio
1700:1
Display mode
SFT
Technology
a-Si
Viewing angle
88/88/88/88
Response time
35 ms
Aspect ratio
16:9

Integration & physical details

Interface
LVDS
Touch
Not included · Factory PCAP optional
LED driver built in
Yes
Backlight lifetime
50,000 h
Operating temperature
−20 to 60 °C
Outline dimensions
388.888 × 225.812 × 4 mm
Active area
381.888 × 214.812 mm
Grade
Basic
Description

17.3" FHD, Basic, SFT, LVDS, 500nit, 50K hr, -20 +60C, with LED Dr

Documents

Request
Datasheet, mechanical drawing and pinoutRequest from us

Request pricing and availabilityP1730FHF1MB00
