Open-frame HMI panel PC

ADLINK PKX-SP2-AL-21

21.5-inch open-frame PanKonix HMI platform with Atom processing and an iFACE HMI software option.

Request a quote Plan a system around this model →

PKX-SP2-AL-21 datasheet

Contact Edge to confirm the exact ordering number and configuration for your application.

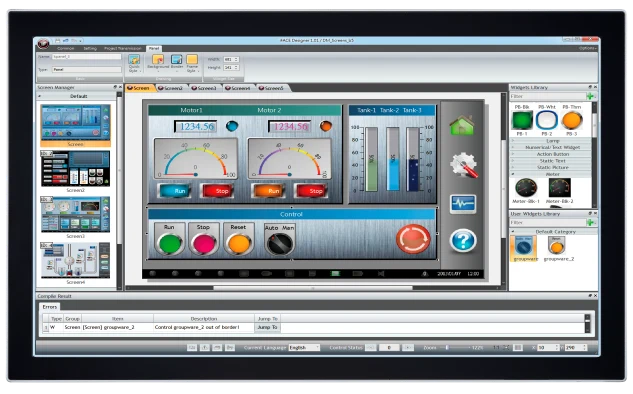

PANKONIX supplier family photograph, view 1; size and options vary

At a glance

PKX-SP2-AL-21 platform details

Platform: Open-frame HMI panel PC
Screen size (in): 21.5
Resolution: 1920 × 1080
Touch technology: Projected capacitive
IP protection: Front IP65
Processor / supported family: Intel Atom x5-E3930; x7-E3950 option
Ethernet specification: 2 × Gigabit Ethernet
Memory options: DDR3L SO-DIMM, up to 8 GB

Product photographs

Technical specifications

PKX-SP2-AL-21 common specifications

Touch points: 10
Software options: Hardware and iFACE HMI bundles are listed; confirm the required software package

Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.

Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.

Configuration and availability

Contact Edge to confirm the exact ordering number and configuration for your application.

Documents

PDF

PKX-SP2-AL-21 datasheet

Manufacturer specifications and ordering information. Match the configuration to the selected part number.
