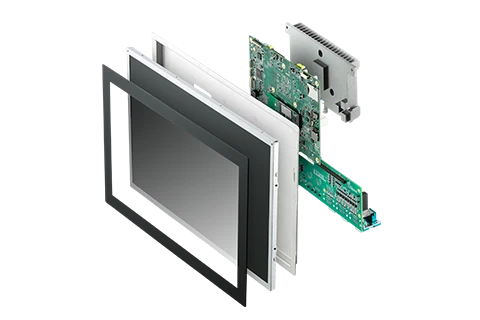

Open-frame panel PC
SP2-10WP-TWL
10.1-inch open-frame panel PC with Twin Lake processing and modular I/O.
- Display
- 10.1″ · 1280 × 800
- Processor
- Intel Processor N150; Core 3 N355 option
- Memory
- DDR5 SO-DIMM, up to 16 GB
ADLINK computing modules and embedded systems.
ADLINK offers computer-on-modules, backplane computing, and enclosed embedded systems. A module separates the processor platform from an application-specific carrier, while an enclosed system brings computing and external connections together. We help review the integration path, evaluation hardware, software, and thermal requirements.
Modules and systems for different integration paths.
- COM Express
- Computer-on-modules that place the processor and core computing functions on a replaceable module. Match the module type, dimensions, and interfaces to the carrier board.
- COM-HPC
- Computer-on-module formats for designs requiring additional processing and high-speed connectivity. Carrier, power, and cooling requirements differ from COM Express and need their own design review.
- SMARC
- Compact modules offered with Arm and x86 platforms. Review the carrier interface, supported operating system, board support package, and power requirements for the selected module.
- OSM
- Solder-down Open Standard Modules for integration onto a carrier board. Include manufacturing, inspection, software, and thermal requirements when evaluating the module approach.
- Qseven and ETX
- Additional module formats used in embedded designs and existing installations. Bring the carrier details and current module number; confirm lifecycle and replacement suitability for the exact model.
- CompactPCI and CompactPCI Serial
- Modular computing boards and systems using a backplane architecture. Review the bus standard, chassis, I/O boards, and environmental requirements as a complete system.
- VPX
- Rugged backplane computing for demanding system requirements. Confirm the board profile, chassis and cooling requirements, qualification documentation, and availability through Edge for the selected configuration.
- MXE
- Fanless embedded computers that combine the computing platform and enclosure. Compare external I/O, expansion, mounting, input power, and thermal limits for the installation.
ADLINK Panel PCs
Compare display sizes and computing platforms, then confirm the configuration for your application with Edge.
Images are representative; size and options may vary.
35 models
Panel PCs
Integrated display and computing platforms with configuration options for equipment and operator interfaces.
Open-frame panel PC
SP2-15WP-TWL
15.6-inch open-frame panel PC with Twin Lake processing and modular I/O.
- Display
- 15.6″ · 1920 × 1080
- Processor
- Intel Processor N150; Core 3 N355 option
- Memory
- DDR5 SO-DIMM, up to 16 GB
Open-frame panel PC
SP2-21WP-TWL
21.5-inch open-frame panel PC with Twin Lake processing and modular I/O.
- Display
- 21.5″ · 1920 × 1080
- Processor
- Intel Processor N150; Core 3 N355 option
- Memory
- DDR5 SO-DIMM, up to 16 GB

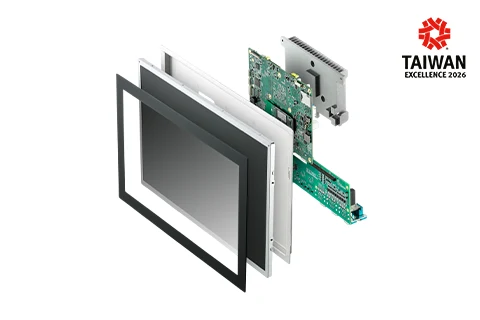

Open-frame panel PC
SP2-10WP-MTL
10.1-inch open-frame panel PC with Core Ultra processing and modular expansion.
- Display
- 10.1″ · 1280 × 800
- Processor
- Intel Core Ultra 5 125H; Core Ultra 7 155H option
- Memory
- DDR5, 2 SO-DIMM sockets, up to 64 GB
Open-frame panel PC
SP2-15WP-MTL
15.6-inch open-frame panel PC with Core Ultra processing and modular expansion.
- Display
- 15.6″ · 1920 × 1080
- Processor
- Intel Core Ultra 5 125H; Core Ultra 7 155H option
- Memory
- DDR5, 2 SO-DIMM sockets, up to 64 GB
Open-frame panel PC
SP2-21WP-MTL
21.5-inch open-frame panel PC with Core Ultra processing and modular expansion.
- Display
- 21.5″ · 1920 × 1080
- Processor
- Intel Core Ultra 5 125H; Core Ultra 7 155H option
- Memory
- DDR5, 2 SO-DIMM sockets, up to 64 GB
Open-frame panel PC
SP2-07WP-EHL
7-inch open-frame panel PC with Elkhart Lake processor options and modular I/O.
- Display
- 7″ · 1024 × 600
- Processor
- Intel Atom x6425E / x6413E / x6211E or Intel J6412
- Memory
- DDR4 SO-DIMM, up to 32 GB
Open-frame panel PC
SP2-10WP-EHL
10.1-inch open-frame panel PC with Elkhart Lake processor options and modular I/O.
- Display
- 10.1″ · 1280 × 800
- Processor
- Intel Atom x6425E / x6413E / x6211E or Intel J6412
- Memory
- DDR4 SO-DIMM, up to 32 GB
Open-frame panel PC
SP2-15WP-EHL
15.6-inch open-frame panel PC with Elkhart Lake processor options and modular I/O.
- Display
- 15.6″ · 1920 × 1080
- Processor
- Intel Atom x6425E / x6413E / x6211E or Intel J6412
- Memory
- DDR4 SO-DIMM, up to 32 GB
Open-frame panel PC
SP2-21WP-EHL
21.5-inch open-frame panel PC with Elkhart Lake processor options and modular I/O.
- Display
- 21.5″ · 1920 × 1080
- Processor
- Intel Atom x6425E / x6413E / x6211E or Intel J6412
- Memory
- DDR4 SO-DIMM, up to 32 GB

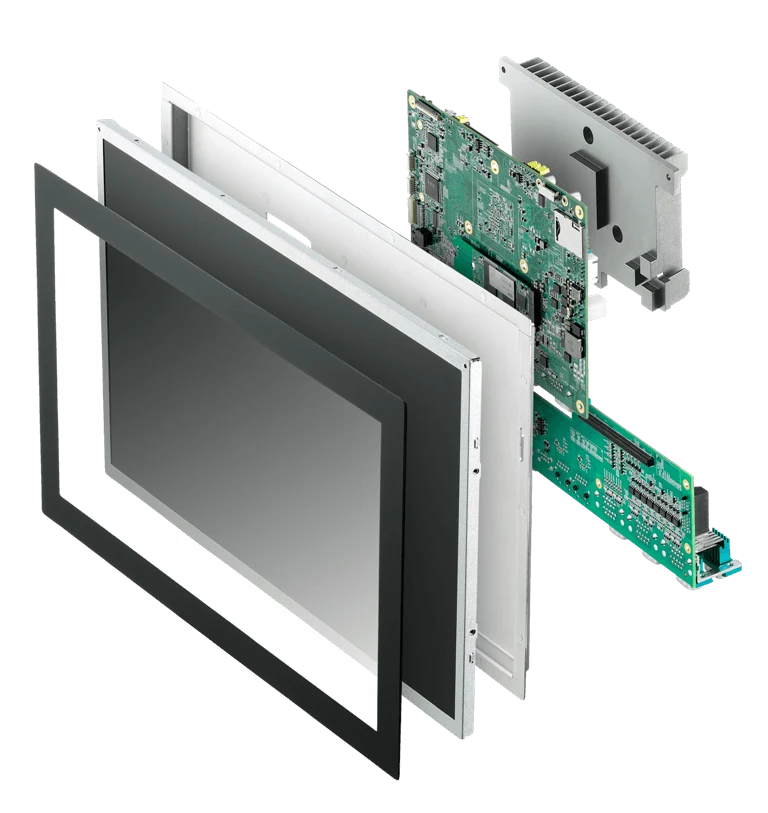

Open-frame panel PC
SP2-07WP-AL
7-inch open-frame panel PC with Atom processing and configurable I/O.
- Display
- 7″ · 1024 × 600
- Processor
- Intel Atom x7-E3950 / x5-E3930
- Memory
- DDR3L SO-DIMM, up to 8 GB
Open-frame panel PC
SP2-10WP-AL
10.1-inch open-frame panel PC with Atom processing and configurable I/O.
- Display
- 10.1″ · 1280 × 800
- Processor
- Intel Atom x7-E3950 / x5-E3930
- Memory
- DDR3L SO-DIMM, up to 8 GB
Open-frame panel PC
SP2-15WP-AL
15.6-inch open-frame panel PC with Atom processing and configurable I/O.
- Display
- 15.6″ · 1920 × 1080
- Processor
- Intel Atom x7-E3950 / x5-E3930
- Memory
- DDR3L SO-DIMM, up to 8 GB
Open-frame panel PC
SP2-21WP-AL
21.5-inch open-frame panel PC with Atom processing and configurable I/O.
- Display
- 21.5″ · 1920 × 1080
- Processor
- Intel Atom x7-E3950 / x5-E3930
- Memory
- DDR3L SO-DIMM, up to 8 GB

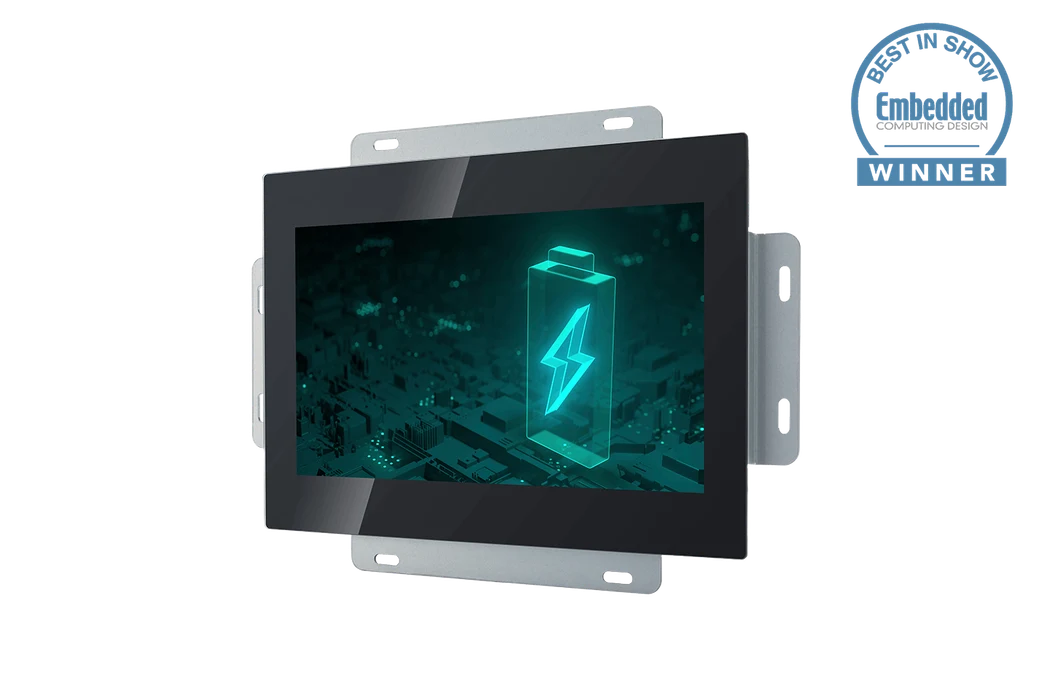

Open-frame panel PC
SP2-07WP-IMX8
7-inch Arm-based open-frame panel PC with eMMC storage and configurable I/O.
- Display
- 7″ · 1024 × 600
- Processor
- NXP i.MX 8M Plus, quad-core Arm Cortex-A53
- Memory
- 2 GB standard; 4 GB or 8 GB optional
Open-frame panel PC
SP2-10WP-IMX8
10.1-inch Arm-based open-frame panel PC with eMMC storage and configurable I/O.
- Display
- 10.1″ · 1280 × 800
- Processor
- NXP i.MX 8M Plus, quad-core Arm Cortex-A53
- Memory
- 2 GB standard; 4 GB or 8 GB optional

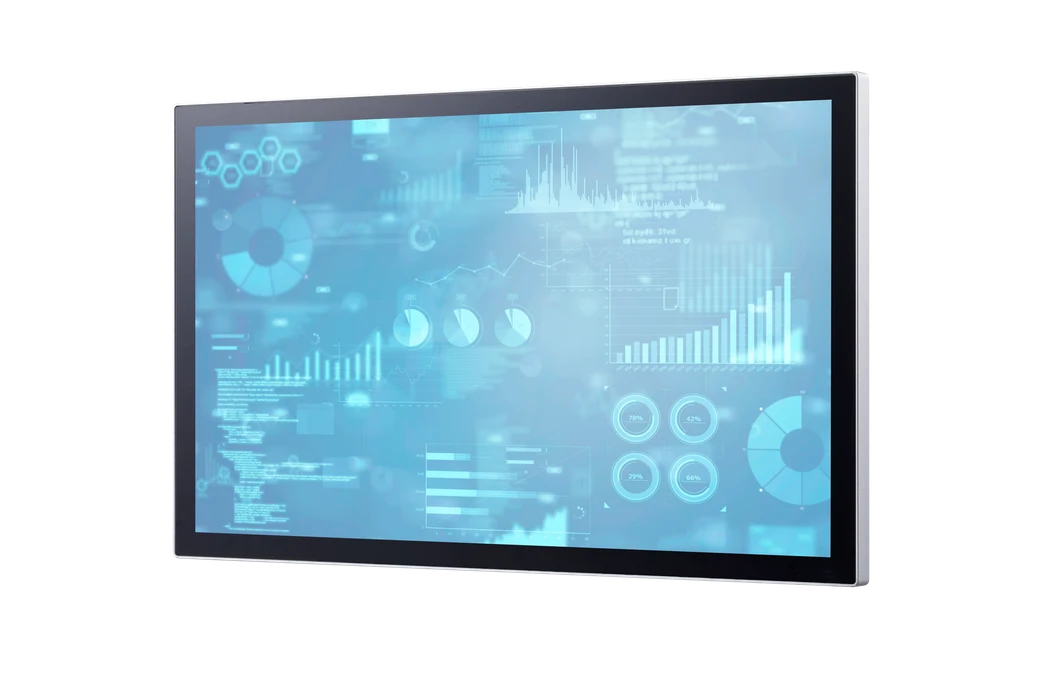

All-in-one panel PC
STC2-10WP-AL
10.1-inch enclosed panel PC with Atom processing, capacitive touch and front IP65 protection.
- Display
- 10.1″ · 1280 × 800
- Processor
- Intel Atom x7-E3950
- Memory
- 4 GB DDR3L in the supplier-listed standard configuration
All-in-one panel PC
STC2-15WP-AL
15.6-inch enclosed panel PC with Atom processing, capacitive touch and front IP65 protection.
- Display
- 15.6″ · 1920 × 1080
- Processor
- Intel Atom x7-E3950
- Memory
- 4 GB DDR3L in the supplier-listed standard configuration

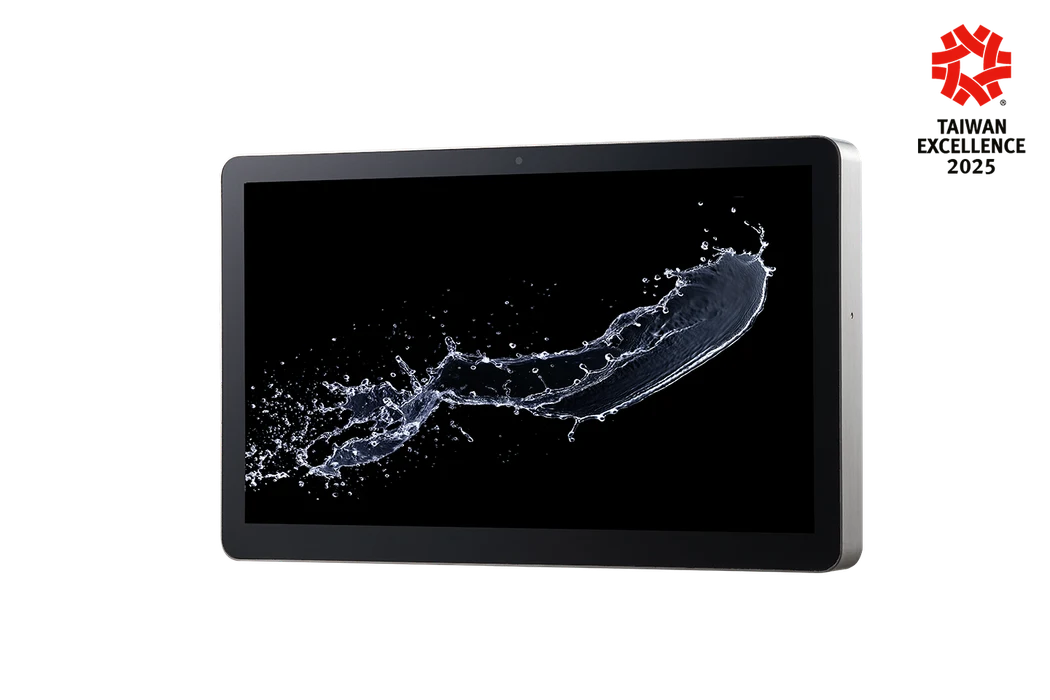

Rugged panel PC
Titan2-15WP
15.6-inch stainless steel panel PC for washdown installations, with IP69K protection and M12 connections.
- Display
- 15.6″
- Processor
- Intel Core i5-1145G7E / Core i3-1115G4E
- Memory
- DDR4, up to 64 GB
Rugged panel PC
Titan2-21WP
21.5-inch stainless steel panel PC for washdown installations, with IP69K protection and M12 connections.
- Display
- 21.5″
- Processor
- Intel Core i5-1145G7E / Core i3-1115G4E
- Memory
- DDR4, up to 64 GB
Rugged panel PC
Titan2-24WPH
23.8-inch stainless steel panel PC for washdown installations, with IP69K protection and M12 connections.
- Display
- 23.8″
- Processor
- Intel Core i5-1145G7E / Core i3-1115G4E
- Memory
- DDR4, up to 64 GB

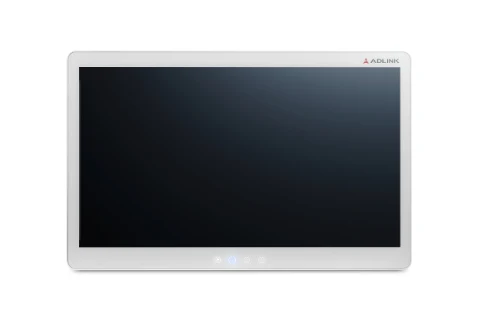

Medical panel PC
MLC-M100
21.5-inch fanless medical panel PC with an aluminum enclosure and isolated network and serial interfaces.
- Display
- 21.5″ · 1920 × 1080
- Processor
- Intel Core i5-1145G7E; i3-1115G4E / i7-1185G7E options
- Memory
- DDR4, up to 64 GB
Medical panel PC
MLC-M300
23.8-inch fanless medical panel PC with an aluminum enclosure and isolated network and serial interfaces.
- Display
- 23.8″ · 1920 × 1080
- Processor
- Intel Core i5-1145G7E; i3-1115G4E / i7-1185G7E options
- Memory
- DDR4, up to 64 GB

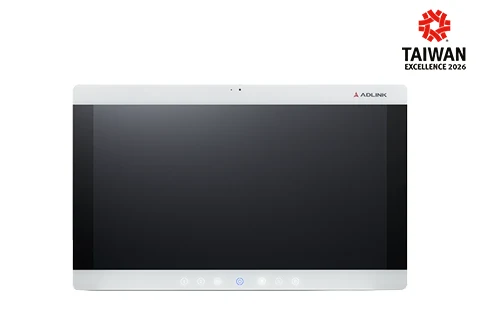

Medical panel PC
MLC-S12-21
21.5-inch fanless medical panel PC with an integrated camera and internal PCIe expansion.
- Display
- 21.5″ · 1920 × 1080
- Processor
- Intel Core i5-12500TE; 12th Gen Core i3 / i7 / i9 options
- Memory
- DDR5, up to 64 GB
Medical panel PC
MLC-S12-23
23.8-inch fanless medical panel PC with an integrated camera and internal PCIe expansion.
- Display
- 23.8″ · 1920 × 1080
- Processor
- Intel Core i5-12500TE; 12th Gen Core i3 / i7 / i9 options
- Memory
- DDR5, up to 64 GB

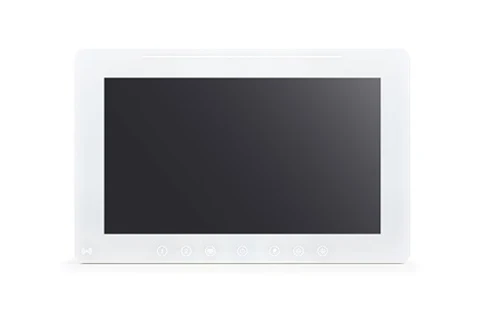

Medical panel PC
MLC-133-AL
13.3-inch fanless medical panel PC with isolated LAN and serial connections in a sealed aluminum enclosure.
- Display
- 13.3″ · 1920 × 1080
- Processor
- Intel Atom x5-E3930
- Memory
- 4 GB DDR3L standard; 8 GB optional
Medical panel PC
MLC-156-AL
15.6-inch fanless medical panel PC with isolated LAN and serial connections in a sealed aluminum enclosure.
- Display
- 15.6″ · 1920 × 1080
- Processor
- Intel Atom x5-E3930
- Memory
- 4 GB DDR3L standard; 8 GB optional
Medical panel PC
MLC-133-KL
13.3-inch fanless medical panel PC with isolated LAN and serial connections in a sealed aluminum enclosure.
- Display
- 13.3″ · 1920 × 1080
- Processor
- Intel Core i3-7100U
- Memory
- 4 GB DDR3L standard; 8 GB optional
Medical panel PC
MLC-156-KL
15.6-inch fanless medical panel PC with isolated LAN and serial connections in a sealed aluminum enclosure.
- Display
- 15.6″ · 1920 × 1080
- Processor
- Intel Core i3-7100U
- Memory
- 4 GB DDR3L standard; 8 GB optional

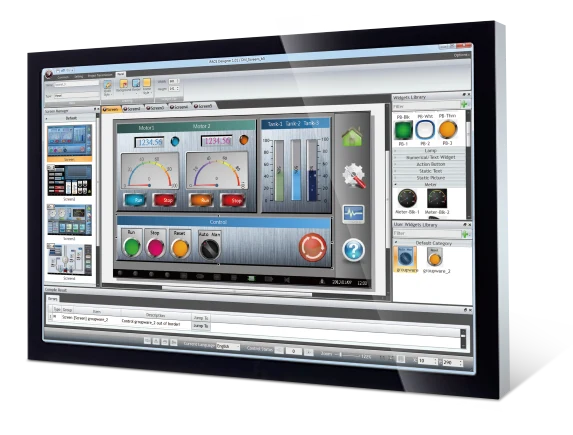

Open-frame HMI panel PC
PKX-SP2-AL-07
7-inch open-frame PanKonix HMI platform with Atom processing and an iFACE HMI software option.
- Display
- 7″ · 1024 × 600
- Processor
- Intel Atom x5-E3930; x7-E3950 option
- Memory
- DDR3L SO-DIMM, up to 8 GB
Open-frame HMI panel PC
PKX-SP2-AL-10
10.1-inch open-frame PanKonix HMI platform with Atom processing and an iFACE HMI software option.
- Display
- 10.1″ · 1280 × 800
- Processor
- Intel Atom x5-E3930; x7-E3950 option
- Memory
- DDR3L SO-DIMM, up to 8 GB
Open-frame HMI panel PC
PKX-SP2-AL-15
15.6-inch open-frame PanKonix HMI platform with Atom processing and an iFACE HMI software option.
- Display
- 15.6″ · 1920 × 1080
- Processor
- Intel Atom x5-E3930; x7-E3950 option
- Memory
- DDR3L SO-DIMM, up to 8 GB
Open-frame HMI panel PC
PKX-SP2-AL-21
21.5-inch open-frame PanKonix HMI platform with Atom processing and an iFACE HMI software option.
- Display
- 21.5″ · 1920 × 1080
- Processor
- Intel Atom x5-E3930; x7-E3950 option
- Memory
- DDR3L SO-DIMM, up to 8 GB
Enclosed HMI panel PC
PKX-STC2-AL-10
10.1-inch true-flat PanKonix HMI platform with front IP65 protection and an iFACE HMI software option.
- Display
- 10.1″ · 1280 × 800
- Processor
- Intel Atom x7-E3950
- Memory
- 4 GB DDR3L standard, up to 8 GB
Enclosed HMI panel PC
PKX-STC2-AL-15
15.6-inch true-flat PanKonix HMI platform with front IP65 protection and an iFACE HMI software option.
- Display
- 15.6″ · 1920 × 1080
- Processor
- Intel Atom x7-E3950
- Memory
- 4 GB DDR3L standard, up to 8 GB
No models match those filters. Try another model name or clear the filters.
