Rugged panel PC
ADLINK Titan2-15WP
15.6-inch stainless steel panel PC for washdown installations, with IP69K protection and M12 connections.
Contact Edge to confirm the exact ordering number and configuration for your application.
At a glance
Titan2-15WP platform details
- Platform
- Rugged panel PC
- Screen size (in)
- 15.6
- IP protection
- IP69K
- Processor / supported family
- Intel Core i5-1145G7E / Core i3-1115G4E
- Ethernet specification
- 1 × 2.5 Gigabit Ethernet through M12; additional port optional
- Memory options
- DDR4, up to 64 GB
- Enclosure
- 304 stainless steel; 316 optional
- Display options
- Optical bonding and high brightness up to 1,000 nits optional

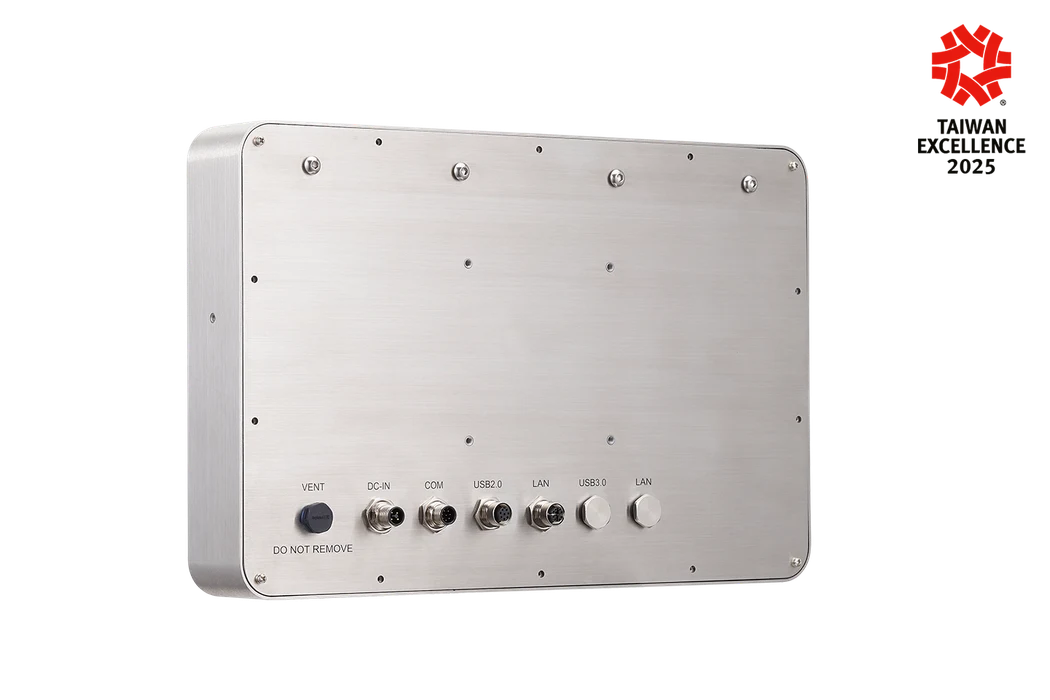

Product photographs
Technical specifications
Titan2-15WP common specifications
- Storage options
- M.2 SATA SSD; 128 GB default, 256 GB option
- Power input
- 24 V DC
- Operating temperature
- −10 to 50°C standard; 0 to 40°C with high-brightness LCD
Ratings and included hardware depend on the selected configuration. Confirm application requirements with Edge.
Lifecycle status changes. Confirm current status and the roadmap with us before you qualify.
Configuration and availability
Contact Edge to confirm the exact ordering number and configuration for your application.
