Micron · PCIe Gen5 data center SSD

Micron 7600 SSD

Choose a 7600 by workload, drive-bay fit and security requirements. Micron offers PRO and MAX endurance classes, with U.2, E1.S and E3.S options. The parts selector below keeps the exact ordering numbers and their physical variants together.

PCIe Gen5 x4 Host interface

Up to 30.72 TB Capacity

Micron G9 TLC NAND

Request a quote View part numbers

Open technical specification ↓

Moving from a 7450 or 7500? Review the transition guide →

At a glance

Micron 7600 family specifications. Select an exact part below for its configuration.

Interface: PCIe Gen5 x4, NVMe 2.0d
NAND: Micron G9 TLC
PRO capacities: 1.92, 3.84, 7.68, 15.36 and 30.72 TB
MAX capacities: 1.6, 3.2, 6.4, 12.8 and 25.6 TB
Operating temperature: 0 to 70 °C

The current Micron part catalog also lists 30.72 TB PRO and 25.6 TB MAX. Performance and endurance for these capacities are not covered by the linked December 2025 specification; contact Edge for details.

Start with your host’s supported format and thickness, then select capacity, endurance and security. E1.S includes separate 9.5 mm and 15 mm variants.

Available 7600 part numbers.

Filter by what the design needs, or search within the results.

Transition guide Moving from the 7450 or 7500? Transitioning from the Micron 7450 & 7500 Series to the Micron 7600 SSD Series

Interface: PCIe Gen5 x4, NVMe 2.0d
NAND type: TLC
Operating temperature: 0 to 70 °C

68 products


MTFDLAL1T6THS-1BP1DFCYYMicron · 7600 MAX	1.6 TB	U.2 (15 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	8,700 TB	1,800,000 IOPS	300,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLAL1T6THS-1BP1JABYYMicron · 7600 MAX	1.6 TB	U.2 (15 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	8,700 TB	1,800,000 IOPS	300,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLBQ1T6THS-1BP1DFCYYMicron · 7600 MAX	1.6 TB	E3.S 1T (7.5 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	8,700 TB	1,800,000 IOPS	300,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLBQ1T6THS-1BP1JABYYMicron · 7600 MAX	1.6 TB	E3.S 1T (7.5 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	8,700 TB	1,800,000 IOPS	300,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLBT1T6THS-1BP1DFCYYMicron · 7600 MAX	1.6 TB	E1.S (9.5 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	8,700 TB	1,800,000 IOPS	300,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLCE1T6THS-1BP1DFCYYMicron · 7600 MAX	1.6 TB	E1.S (15 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	8,700 TB	1,800,000 IOPS	300,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLCE1T6THS-1BP1JABYYMicron · 7600 MAX	1.6 TB	E1.S (15 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	8,700 TB	1,800,000 IOPS	300,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLAL1T9THG-1BP1JABYYMicron · 7600 PRO · In stock	1.92 TB	U.2 (15 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	3,500 TB	1,800,000 IOPS	180,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLBQ1T9THG-1BP1DFCYYMicron · 7600 PRO · In stock	1.92 TB	E3.S 1T (7.5 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	3,500 TB	1,800,000 IOPS	180,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLAL1T9THG-1BP1DFCYYMicron · 7600 PRO	1.92 TB	U.2 (15 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	3,500 TB	1,800,000 IOPS	180,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLBQ1T9THG-1BP1JABYYMicron · 7600 PRO	1.92 TB	E3.S 1T (7.5 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	3,500 TB	1,800,000 IOPS	180,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLBT1T9THG-1BP1DFCYYMicron · 7600 PRO	1.92 TB	E1.S (9.5 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	3,500 TB	1,800,000 IOPS	180,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLBT1T9THG-1BP1JABYYMicron · 7600 PRO	1.92 TB	E1.S (9.5 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	3,500 TB	1,800,000 IOPS	180,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLCE1T9THG-1BP1DFCYYMicron · 7600 PRO	1.92 TB	E1.S (15 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	3,500 TB	1,800,000 IOPS	180,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLCE1T9THG-1BP1JABYYMicron · 7600 PRO	1.92 TB	E1.S (15 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	3,500 TB	1,800,000 IOPS	180,000 IOPS	12,000 MB/s	3,300 MB/s
MTFDLAL3T2THS-1BP1DFCYYMicron · 7600 MAX · In stock	3.2 TB	U.2 (15 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	17,500 TB	2,100,000 IOPS	560,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLAL3T2THS-1BP1JABYYMicron · 7600 MAX	3.2 TB	U.2 (15 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	17,500 TB	2,100,000 IOPS	560,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLBQ3T2THS-1BP1DFCYYMicron · 7600 MAX	3.2 TB	E3.S 1T (7.5 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	17,500 TB	2,100,000 IOPS	560,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLBQ3T2THS-1BP1JABYYMicron · 7600 MAX	3.2 TB	E3.S 1T (7.5 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	17,500 TB	2,100,000 IOPS	560,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLBT3T2THS-1BP1DFCYYMicron · 7600 MAX	3.2 TB	E1.S (9.5 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	17,500 TB	2,100,000 IOPS	560,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLBT3T2THS-1BP1JABYYMicron · 7600 MAX	3.2 TB	E1.S (9.5 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	17,500 TB	2,100,000 IOPS	560,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLCE3T2THS-1BP1DFCYYMicron · 7600 MAX	3.2 TB	E1.S (15 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	17,500 TB	2,100,000 IOPS	560,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLCE3T2THS-1BP1JABYYMicron · 7600 MAX	3.2 TB	E1.S (15 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	17,500 TB	2,100,000 IOPS	560,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLAL3T8THG-1BP1DFCYYMicron · 7600 PRO	3.84 TB	U.2 (15 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	7,000 TB	2,100,000 IOPS	300,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLAL3T8THG-1BP1JABYYMicron · 7600 PRO	3.84 TB	U.2 (15 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	7,000 TB	2,100,000 IOPS	300,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLBQ3T8THG-1BP1DFCYYMicron · 7600 PRO	3.84 TB	E3.S 1T (7.5 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	7,000 TB	2,100,000 IOPS	300,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLBQ3T8THG-1BP1JABYYMicron · 7600 PRO	3.84 TB	E3.S 1T (7.5 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	7,000 TB	2,100,000 IOPS	300,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLBT3T8THG-1BP1DFCYYMicron · 7600 PRO	3.84 TB	E1.S (9.5 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	7,000 TB	2,100,000 IOPS	300,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLBT3T8THG-1BP1JABYYMicron · 7600 PRO	3.84 TB	E1.S (9.5 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	7,000 TB	2,100,000 IOPS	300,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLCE3T8THG-1BP1DFCYYMicron · 7600 PRO	3.84 TB	E1.S (15 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	7,000 TB	2,100,000 IOPS	300,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLCE3T8THG-1BP1JABYYMicron · 7600 PRO	3.84 TB	E1.S (15 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	7,000 TB	2,100,000 IOPS	300,000 IOPS	12,000 MB/s	6,500 MB/s
MTFDLAL6T4THS-1BP1DFCYYMicron · 7600 MAX · In stock	6.4 TB	U.2 (15 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	35,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLAL6T4THS-1BP1JABYYMicron · 7600 MAX	6.4 TB	U.2 (15 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	35,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBQ6T4THS-1BP1DFCYYMicron · 7600 MAX	6.4 TB	E3.S 1T (7.5 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	35,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBQ6T4THS-1BP1JABYYMicron · 7600 MAX	6.4 TB	E3.S 1T (7.5 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	35,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBT6T4THS-1BP1DFCYYMicron · 7600 MAX	6.4 TB	E1.S (9.5 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	35,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBT6T4THS-1BP1JABYYMicron · 7600 MAX	6.4 TB	E1.S (9.5 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	35,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLCE6T4THS-1BP1DFCYYMicron · 7600 MAX	6.4 TB	E1.S (15 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	35,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLCE6T4THS-1BP1JABYYMicron · 7600 MAX	6.4 TB	E1.S (15 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	35,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLAL7T6THG-1BP1DFCYYMicron · 7600 PRO	7.68 TB	U.2 (15 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	14,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLAL7T6THG-1BP1JABYYMicron · 7600 PRO	7.68 TB	U.2 (15 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	14,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBQ7T6THG-1BP1DFCYYMicron · 7600 PRO	7.68 TB	E3.S 1T (7.5 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	14,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBQ7T6THG-1BP1JABYYMicron · 7600 PRO	7.68 TB	E3.S 1T (7.5 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	14,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBT7T6THG-1BP1DFCYYMicron · 7600 PRO	7.68 TB	E1.S (9.5 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	14,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBT7T6THG-1BP1JABYYMicron · 7600 PRO	7.68 TB	E1.S (9.5 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	14,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLCE7T6THG-1BP1DFCYYMicron · 7600 PRO	7.68 TB	E1.S (15 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	14,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLCE7T6THG-1BP1JABYYMicron · 7600 PRO	7.68 TB	E1.S (15 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	14,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLAL12T8THS-1BP1DFCYYMicron · 7600 MAX · In stock	12.8 TB	U.2 (15 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	70,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLAL12T8THS-1BP1JABYYMicron · 7600 MAX	12.8 TB	U.2 (15 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	70,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBQ12T8THS-1BP1DFCYYMicron · 7600 MAX	12.8 TB	E3.S 1T (7.5 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	70,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBQ12T8THS-1BP1JABYYMicron · 7600 MAX	12.8 TB	E3.S 1T (7.5 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	70,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBT12T8THS-1BP1DFCYYMicron · 7600 MAX	12.8 TB	E1.S (9.5 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	70,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLCE12T8THS-1BP1DFCYYMicron · 7600 MAX	12.8 TB	E1.S (15 mm)	3 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	70,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLCE12T8THS-1BP1JABYYMicron · 7600 MAX	12.8 TB	E1.S (15 mm)	3 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	70,000 TB	2,100,000 IOPS	675,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLAL15T3THG-1BP1DFCYYMicron · 7600 PRO	15.36 TB	U.2 (15 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	28,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLAL15T3THG-1BP1JABYYMicron · 7600 PRO	15.36 TB	U.2 (15 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	69.85 × 100.45 × 15 mm (W × L × H)	28,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBQ15T3THG-1BP1DFCYYMicron · 7600 PRO	15.36 TB	E3.S 1T (7.5 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	28,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBQ15T3THG-1BP1JABYYMicron · 7600 PRO	15.36 TB	E3.S 1T (7.5 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	76 × 112.75 × 7.58 mm (W × L × H)	28,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBT15T3THG-1BP1DFCYYMicron · 7600 PRO	15.36 TB	E1.S (9.5 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	28,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLBT15T3THG-1BP1JABYYMicron · 7600 PRO	15.36 TB	E1.S (9.5 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 9.5 mm (W × L × H)	28,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLCE15T3THG-1BP1DFCYYMicron · 7600 PRO	15.36 TB	E1.S (15 mm)	1 DWPD	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	28,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLCE15T3THG-1BP1JABYYMicron · 7600 PRO	15.36 TB	E1.S (15 mm)	1 DWPD	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	33.75 × 118.75 × 15 mm (W × L × H)	28,000 TB	2,100,000 IOPS	400,000 IOPS	12,000 MB/s	7,000 MB/s
MTFDLAL25T6THS-1BP1JABYYMicron · 7600 MAXMicron 7600 MAX, 25600GB, U.2 (15 mm), PCIe Gen5 x4 NVMe, Non-SED.	25.6 TB	U.2 (15 mm)	Not listed	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	Not listed	Not listed	Not listed	Not listed	Not listed	Not listed
MTFDLBQ25T6THS-1BP1JABYYMicron · 7600 MAXMicron 7600 MAX, 25600GB, E3.S 1T (7.5 mm), PCIe Gen5 x4 NVMe, Non-SED.	25.6 TB	E3.S 1T (7.5 mm)	Not listed	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	Not listed	Not listed	Not listed	Not listed	Not listed	Not listed
MTFDLAL30T7THG-1BP1DFCYYMicron · 7600 PROMicron 7600 PRO, 30720GB, U.2 (15 mm), PCIe Gen5 x4 NVMe, SED, TCG Opal 2.02, FIPS 140-3 certifiable.	30.72 TB	U.2 (15 mm)	Not listed	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	Not listed	Not listed	Not listed	Not listed	Not listed	Not listed
MTFDLAL30T7THG-1BP1JABYYMicron · 7600 PROMicron 7600 PRO, 30720GB, U.2 (15 mm), PCIe Gen5 x4 NVMe, Non-SED.	30.72 TB	U.2 (15 mm)	Not listed	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	Not listed	Not listed	Not listed	Not listed	Not listed	Not listed
MTFDLBQ30T7THG-1BP1DFCYYMicron · 7600 PROMicron 7600 PRO, 30720GB, E3.S 1T (7.5 mm), PCIe Gen5 x4 NVMe, SED, TCG Opal 2.02, FIPS 140-3 certifiable.	30.72 TB	E3.S 1T (7.5 mm)	Not listed	SED, TCG Opal 2.02, FIPS 140-3 certifiable	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	Not listed	Not listed	Not listed	Not listed	Not listed	Not listed
MTFDLBQ30T7THG-1BP1JABYYMicron · 7600 PROMicron 7600 PRO, 30720GB, E3.S 1T (7.5 mm), PCIe Gen5 x4 NVMe, Non-SED.	30.72 TB	E3.S 1T (7.5 mm)	Not listed	Non-SED	PCIe Gen5 x4, NVMe 2.0d	TLC	0 to 70 °C	Not listed	Not listed	Not listed	Not listed	Not listed	Not listed

Sort by

Choose PRO or MAX

Match write endurance to the expected daily workload and qualification requirements.

7600 PRO

PRO

Capacities: 1.92–30.72 TB
Ordering-code family: HG

7600 MAX

MAX

Capacities: 1.6–25.6 TB
Ordering-code family: HS

Check physical fit before comparing performance

Micron’s part-number chart distinguishes these four formats. A shared interface or capacity does not establish mechanical compatibility.

U.2

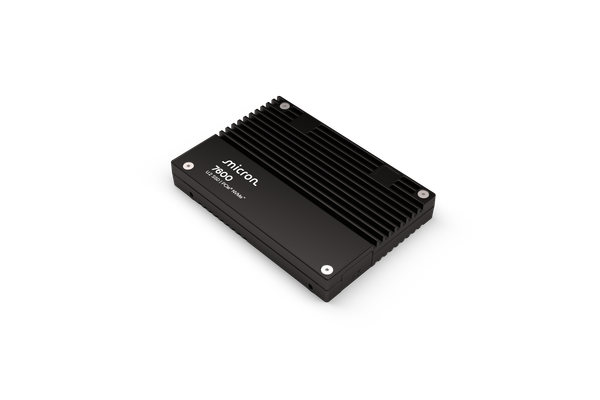

Micron 7600 U.2 SSD, representative form-factor view

Thickness: 15 mm
Ordering code: AL

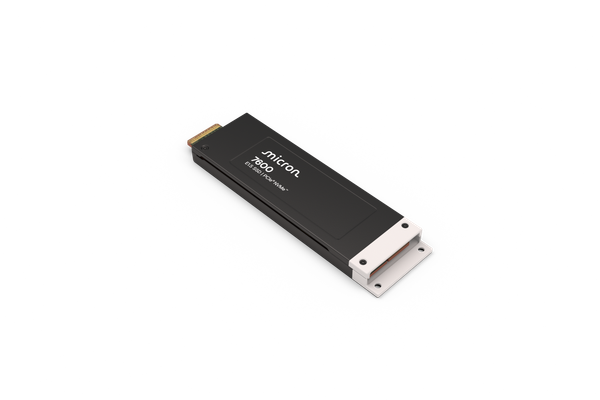

E1.S · 9.5 mm

Thickness: 9.5 mm
Ordering code: BT

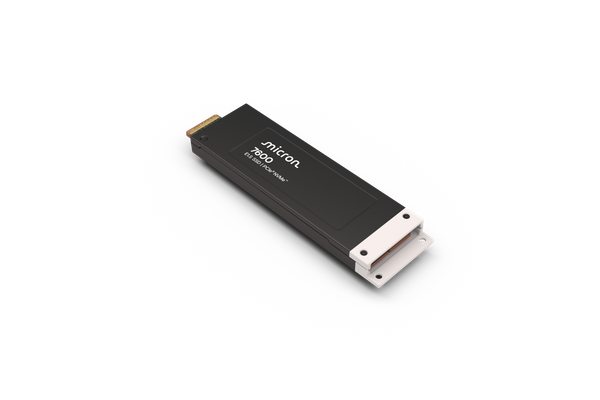

E1.S · 15 mm

Thickness: 15 mm
Ordering code: CE

E3.S 1T

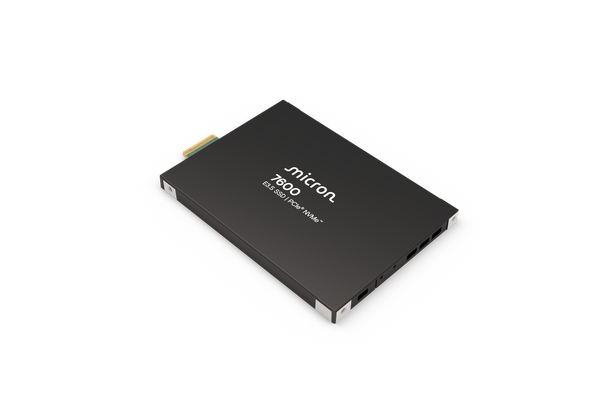

Micron 7600 E3.S SSD, representative form-factor view

Nominal format: 7.5 mm
Ordering code: BQ

Match the security configuration to the platform

The 7600 ordering chart includes non-SED and TCG Opal options, with FIPS feature-set options. Confirm the complete manufacturer part number and your platform’s security requirements when ordering. A FIPS-certifiable option does not by itself establish certification for your deployment. Ask Edge about documentation and sourcing requirements for the selected part.

What we add

As an authorized Micron distributor, we help with:

Matching the model, capacity, form factor, and cooling approach to your workload, with our technical team and, when needed, Micron's
DPAS-rated orders, TAA-compliant sourcing on request confirmed at the part-number level, and documentation such as Statements of Volatility
Current pricing and availability, and sample coordination through Micron for early qualification

Frequently asked questions

Why can two E1.S part numbers have the same performance?

Micron publishes capacity-specific performance tables across the 7600 SKUs. Parts can share those values while differing physically: the BT form-factor code specifies 9.5 mm E1.S and CE specifies 15 mm E1.S. Check the complete ordering number and dimensions.

Can a 7600 replace my 7450 or 7500?

Use the linked transition guide to identify candidate parts, then qualify the host interface, mechanical fit, thermals, firmware, security and workload. A candidate mapping is a starting point for qualification.

Where can I verify the specifications?

Open Micron’s technical specification above or the datasheet link beside a compared part. It includes the ordering-code chart and test conditions. Send Edge the exact part number if a required detail is not listed.

Documents

PDF

Micron 7600 technical specification

Micron’s ordering-code chart, dimensions, capacity-specific performance, endurance and test conditions.

15 pages
